Tire Linc
LCD Display
owner's manual
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tire Linc and is the answer not in the manual?

Questions and answers

joe
February 2, 2025

for the system to work on the caravan does the car need to be connected to the caravan

User image 679eca9f4832c
1 comments:
Mr. Anderson
February 10, 2025

No, the Lippert Tire Linc system does not require the car to be connected to the caravan for it to work. It operates independently using a repeater dock that must be connected to a constant power source in the caravan. However, if the power source is turned off during transport, the system will also turn off.

This answer is automatically generated

John Little
April 3, 2025

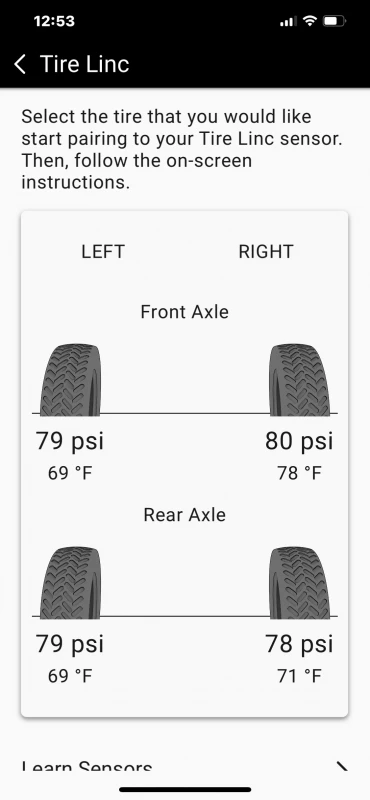

my app icon and homepage display in the app do not match the manual. Please see attached photos. Is there an update?

User image 67eebea815732

Summary of Contents for Lippert Tire Linc

  • Page 1 Tire Linc LCD Display owner's manual ®...
  • Page 2: Table Of Contents

    Reset LCD Handheld Display Introduction Tire Linc® is a tire pressure and temperature monitoring system (TPMS). The TPMS display issues an alert when a unit's pressure or temperature falls out of the programmable range. The system is operated by a handheld display, and a power cord and stand are included with the kit (Fig.1).
  • Page 3: Key System Components

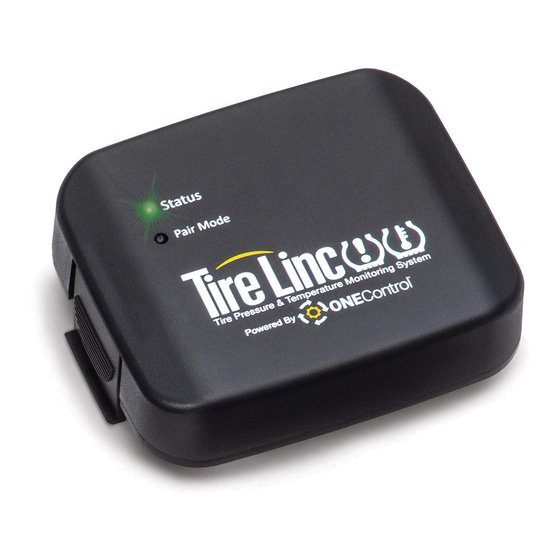

    If the repeater is not already installed in the dock, instructions are included to describe how to snap the repeater into the dock. Fig. 1 Tire Linc LCD Display Components Callout Part Number...
  • Page 4: Preparation

    Preparation NOTE: The repeater for the TPMS system is already installed on prepped units. If installed, continue to the Place Repeater Into Pair Mode and/or Sensor Pairing, Configuration sections. However, if the repeater is not in place in the dock, use the following instructions to install the repeater. Install Repeater Locate and remove film cover (Fig.
  • Page 5: Message To Power Off Displays

    Message To Power Off Displays Whenever a user accesses one of three modes in the Settings menu — Add Another Vehicle, Learn All Sensors or Learn A Sensor — a screen will appear on the display for five seconds (Fig. 3) before automatically transitioning to the notifications received before sensor learning takes place.
  • Page 6 Select a vehicle class (Fig. 8) and tap CONTINUE. Select the type of vehicle to be set up by choosing one of the pictures shown on the display (Fig. 9) and tap CONTINUE. Determine if a spare tire will be added (Fig. 10). Tapping YES will add the spare tire icon to the vehicle selected.
  • Page 7: Sensor Pairing Sequence

    Sensor Pairing Sequence The pairing sequence for tires begins with the left front tire first (Fig. 11-1), continuing from front to rear and then beginning again at the right front (Fig. 11-5) and continuing to the rear tires. The spare tire (Fig. 11-9) is last.
  • Page 8: Learn All Sensors

    Learn All Sensors A screen will appear on the display for five seconds (Fig. 3) before automatically transitioning to the notifications received before sensor learning takes place. After entering the Learn All Sensors mode, hold the LCD display close to the sidewall in the area opposite the valve stem of the tire to be paired (Fig.
  • Page 9: Configure All Thresholds

    Configure All Thresholds Before accessing the SETTINGS menu, check to make sure the vehicle selected to have thresholds configured is present on the main tire pressure screen (Fig. 9). Select the Configure All Thresholds arrow on the SETTINGS screen (Fig. 16A). Set the Minimum Pressure, Maximum Pressure, Maximum Temperature and Maximum Temp Change for the sensors (Fig.
  • Page 10: Learn A Sensor

    Learn A Sensor A screen will appear on the display for five seconds (Fig. 3) before automatically transitioning to the notifications received before sensor learning takes place. Before accessing the SETTINGS menu, check to make sure the vehicle on which a sensor is to be learned is present on the main tire pressure screen (Fig.
  • Page 11: Detach Vehicles

    Detach Vehicles Scroll down the SETTINGS screen and tap the arrow to the right of Detach Vehicles (Fig. 22A). Select which vehicle to detach (Fig. 23). Confirm which vehicle to detach and tap CONTINUE (Fig. 24). Select another vehicle to detach or tap FINISH to return to the main tire pressure screen (Fig. 25). NOTE: The red X on a vehicle (Fig.
  • Page 12: Re-Attach Vehicles

    Re-Attach Vehicles Scroll down the SETTINGS screen and tap arrow to right of Re-Attach Vehicles (Fig. 26A). Select which vehicle to reattach (Fig. 27). NOTE: The red X on a vehicle (Fig. 27) indicates the vehicle is detached. Confirm which vehicle to reattach and tap CONTINUE (Fig. 28). Select another vehicle to reattach or tap FINISH to return to the main tire pressure screen (Fig.
  • Page 13: Delete A Vehicle

    Delete A Vehicle Tap the Delete A Vehicle entry in the SETTINGS screen (Fig. 30A). Select a vehicle to delete (Fig. 31) and tap NEXT. Confirm which vehicle to delete (Fig. 32) and tap DELETE. Select another vehicle to delete or tap FINISH return to the main tire pressure screen (Fig. 33). NOTE: The display will not delete a vehicle if it is the only vehicle in the configuration.
  • Page 14: Add Another Vehicle

    Add Another Vehicle A screen will appear on the display for five seconds (Fig. 3) before automatically transitioning to the notifications received before sensor learning takes place. Select Add Another Vehicle on the SETTINGS screen (Fig. 34A). Select a class of vehicle (Fig. 35) and the type of vehicle to be set up by choosing one of the pictures shown on the display (Fig.
  • Page 15: Display

    Fig. 38 Fig. 39 Fig. 40 Display Scroll down the SETTINGS screen and tap the arrow to the right of Display (Fig. 41A). Select preferred entries on the Display screen, including whether the system will always be on or go to sleep and if U.S.
  • Page 16: Operation

    Operation When Sensors are under pressure, data is transmitted to the repeater when tires are: • moving/rotating, every one minute; • not moving/not rotating, every 15 minutes. Tap a tire location (Fig. 43) to launch its properties window (Figs. 44 and 45). Within the selected tire’s properties window, various tire and sensor specifications can be observed and altered.
  • Page 17: Tire Limits Example

    When a fault is active, the display will beep and the text box that displays the temperature and pressure for the tire experiencing the fault will turn red (Fig. 46). NOTE: The text for the spare tire with a fault will not turn red — only the spare tire icon will turn red (Fig. 46A). Tire Limits Example When a specific tire information button is tapped, the tire's programmable settings become available.
  • Page 18: Troubleshooting

    Troubleshooting Relearn Sensors After Tire Rotation If a tire rotation is performed on the vehicle, the user can relearn the sensors by utilizing the Learn All Sensors mode. Internal Sensors When the battery voltage begins to approach 1.9V on a tire sensor, it is time to schedule a service appointment to replace the sensor for that tire.
  • Page 19: No Power

    No Power If system is not working, check the in-line fuse to the dock to ensure the repeater dock has power. Reset Repeater Tap and hold the Pair Mode button on the repeater (Fig. 48) for approximately 10 seconds. Continue holding the button until there is one long red blink followed by four short red blinks. Release button.
  • Page 20 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided.  Any unauthorized use shall void any applicable warranty. ...
