- Page 1 Battery Monitor OWNER'S MANUAL...
-
Page 2: Table Of Contents

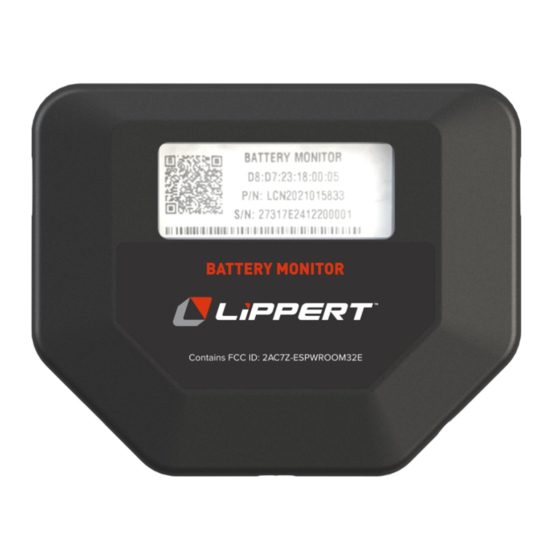

Notes Introduction The Lippert Battery Monitor works with 12 V, lead-acid batteries and allows the user to monitor battery status and condition via the Lippert OneControl app. Additional information about this product can be obtained from lci1.com/support or by downloading the free LippertNOW app. -
Page 3: Safety
Failure to correctly follow the provided instructions may result in death, serious personal injury, severe product and/or property damage, including voiding of the Lippert limited warranty. The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death or serious personal injury if not performed safely and within the parameters set forth in this manual. -
Page 4: Preparation
Preparation Battery Monitor Location The Battery Monitor should be installed on a wall inside of the unit, in the basement, the pass-through, or another dry area with easy access to the battery cables. Download OneControl To use Battery Monitor, download the OneControl app. - Page 5 Tap "Battery Monitor" from the list of devices to add or manage (Fig. 2A). Fig. 2 Tap "Scan with Camera" (Fig. 3A) and scan the QR code on the Battery Monitor (Fig. 4A). Fig. 3 Fig. 4 Page 5 Rev: 10.27.22...
- Page 6 NOTE: The Battery Monitor can be connected to the OneControl app manually. Tap "Connect Manually" (Fig. 3B) and enter the MAC Address (Fig. 4B) for manual entry (Fig. 5). Fig. 5 Once connected, the Battery Monitor will be shown on the home screen (Fig. 6A).
-
Page 7: Operation
12.9 V to 100% when the battery is not loaded and 12.1 V to 0%. Once the OneControl app is installed and linked to the Battery Monitor, the two can work together to provide essential information about the unit's battery to the user via the app. -
Page 8: Setting The Battery Name
Fig. 9 Setting the Battery Capacity In order for the battery monitor to properly calculate state of charge and time remaining, the battery's capacity must be entered in ampere hours. NOTE: Ampere hours can often be found on the battery as a number followed by Ah. -
Page 9: Setting The Battery Install Date
Setting the Battery Install Date The battery monitor will store the date the battery was installed. From the settings screen, tap "Battery Install Date" (Fig. 13A). Use the date picker to tap the new install date (Fig. 14A) (highlighted in purple, date shown as example.) -
Page 10: Setting An Idle Alert
Setting an Idle Alert An idle alert reminds users to disconnect the unit when not in use, to avoid slowly losing battery power. NOTE: An idle alert will only be received when the device is communicating with the unit. On the setting screen, tap "Idle Alert" (Fig. 17A). Move the slider (Fig. -
Page 11: Statistics
It may take 15 minutes for the battery monitor to create the baseline state of charge. The Battery Monitor only needs to create a baseline once with a battery. -
Page 12: Troubleshooting
Troubleshooting Notifications When the Battery Monitor is not communicating with the unit, notifications (Fig. 22A) will be received. NOTE: The information display will be the last information that was transmitted to OneControl before losing communication. Fig. 22 Troubleshooting Table What is Happening... -
Page 13: Notes
Notes Page 13 Rev: 10.27.22 CCD-0006453... - Page 14 Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.
