Lippert Tire Linc Oem Installation Manual
Pressure monitor 2.0
Hide thumbs
Also See for Tire Linc:
- Installation and owner's manual (16 pages) ,
- Oem installation manual (4 pages) ,
- Owner's manual (20 pages)
Related Manuals for Lippert Tire Linc
Summary of Contents for Lippert Tire Linc

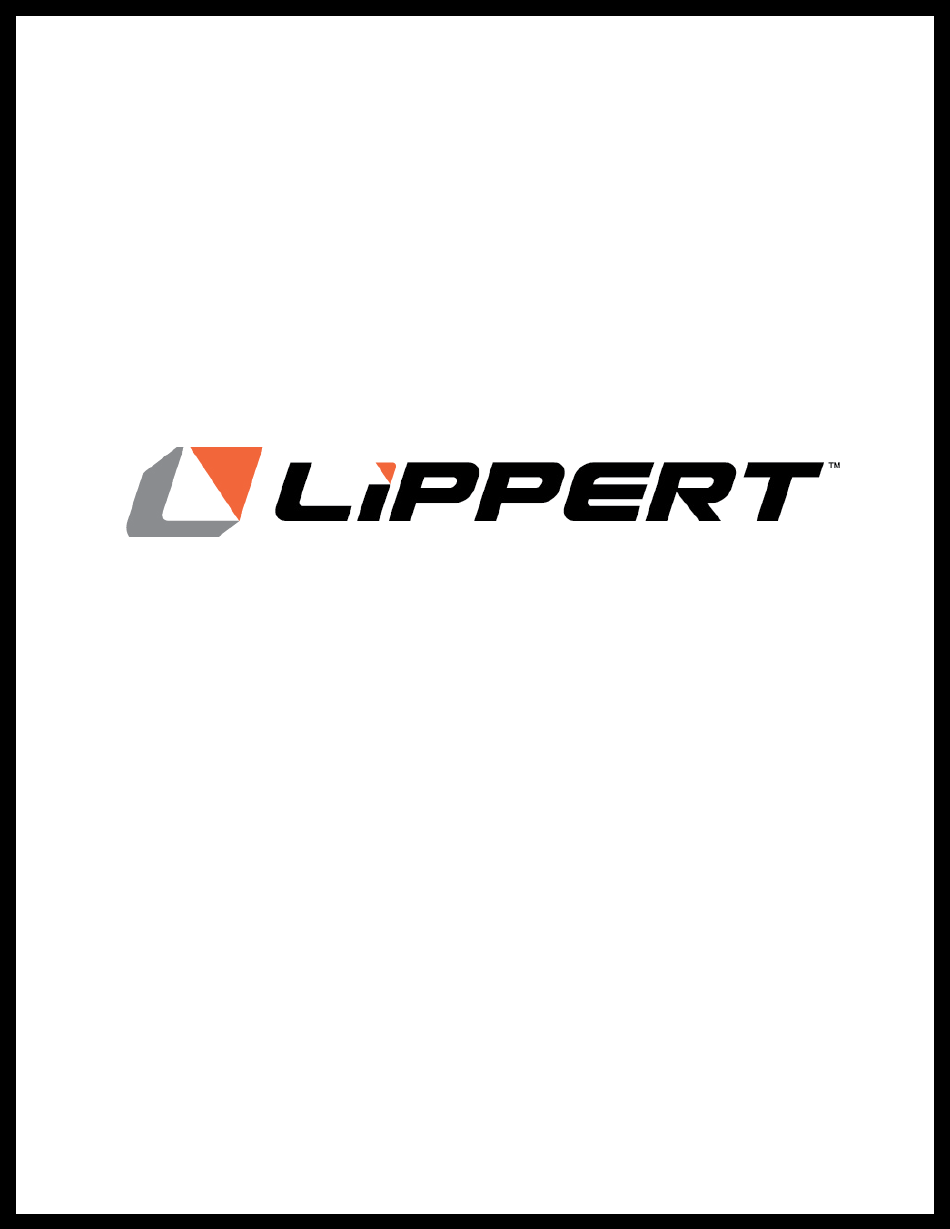

- Page 1 Tire Linc Pressure Monitor 2.0 ® Keystone/Dutchmen Lippert Connect OEM INSTALLATION MANUAL...

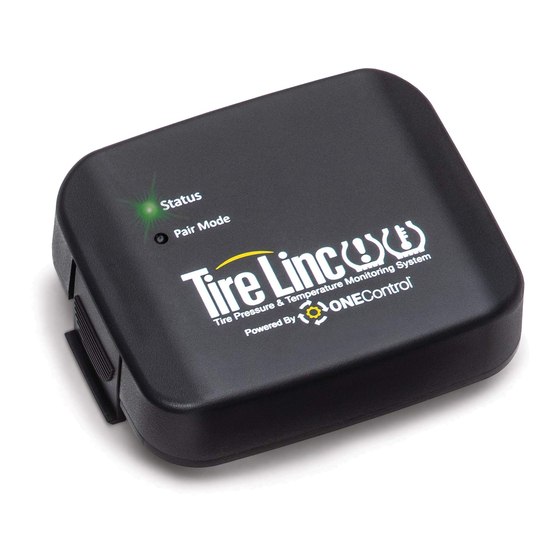

- Page 2 Notes Introduction Tire Linc® is a tire pressure and temperature monitoring system (TPMS). The TPMS display issues an alert when a unit's pressure or temperature falls out of the programmable range. The system is operated by a handheld RF controller included with the kit. This document covers the installation of the Tire Linc Tire Pressure and Temperature Mounting System (TPMS) repeater dock with additional instructions if a complete TPMS is provided by the OEM.
- Page 3 Repeater Dock Installation Locate a mounting area inside the unit that allows connection of the Tire Linc repeater dock (Fig. 1) to the unit's 7-way charge line. NOTE: The Tire Linc repeater dock MUST be mounted vertically. Repeater dock mounting MUST be located in the forward-most storage compartment in the unit that is free of any metal or obstructions that could interfere with the signal and hinder reception.
- Page 4 NOTE: OEM MUST insert Prep Cover (Fig. 3) after testing. The customer will remove the prep cover before installing a repeater for the system. Remove the Test Assembly and Snap the Prep Cover (Fig. 3) onto the repeater doc. Fig. 3 Page 4 Rev: 06.01.22 CCD-0006449...
- Page 5 Notes Page 5 Rev: 06.01.22 CCD-0006449...
- Page 6 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
