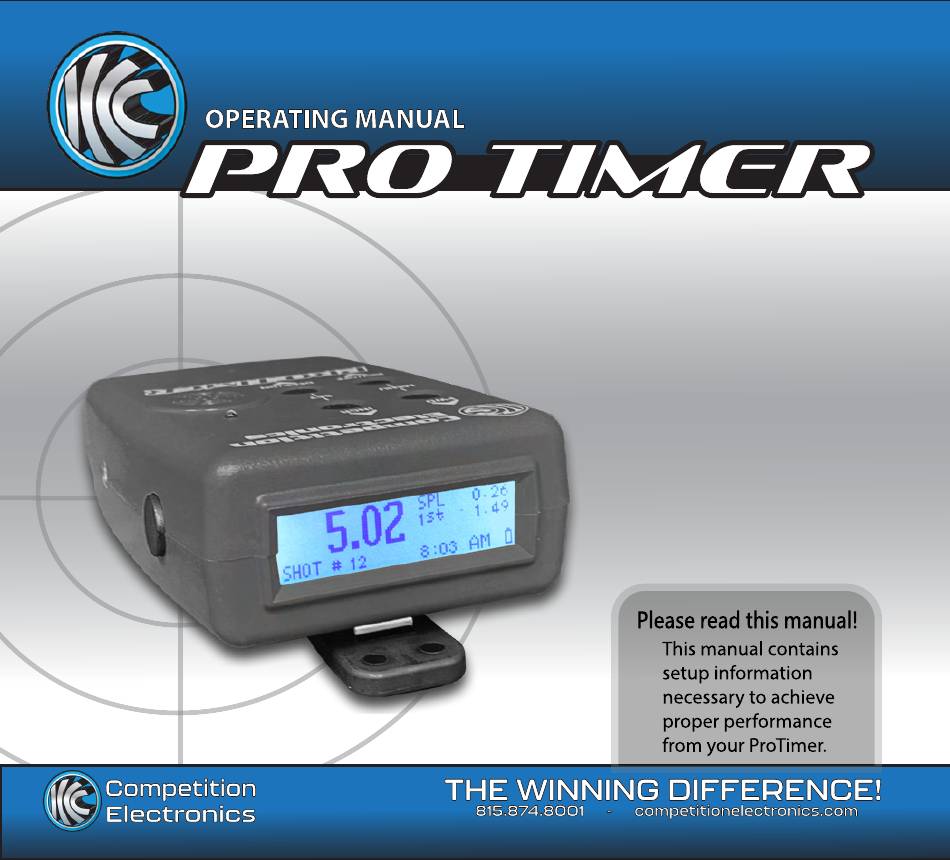

- Page 1 Model # CEI 4730...
-
Page 2: Table Of Contents
PRO TIMER Table of Contents 7-13 Battery Installation......Power ON/OFF........Home Screen Information....9-10 Control Button Functions....LED and Beeper Alerts...... Headset Jack........Battery Status, info, and warning Basic Operation........ screens............ 13-14 Shot Detection........Memory Info..........Menu Flow List......... Resetting to Factory Defaults....Specifications.......... - Page 3 PRO TIMER Thank you for purchasing our product! It is important to read and understand this manual before trying to use your new shot timer. We are here to help, if you have any questions or comments, please contact us at 815-874-8001 www.competitionelectronics.com.
-
Page 4: Battery Installation
ProTimer PRO TIMER Battery Installation The ProTimer operates using a 9 volt battery for power. It is important to use Alkaline or Lithium batteries (not carbon) due to the power demand of the buzzer and display backlighting. Install the battery in the compartment on the rear of the unit. Once installed, the ProTimer will briefly display a sign-on message, followed by the home screen. -
Page 5: Home Screen Information
PRO TIMER PRO TIMER Home Screen This screen is the default style which shows the time to last shot, time to the first shot, current split time, shot number, and date/time. 5.82 1.00 0.78 SHOT# 5 3:30PM Note: You can choose from two other screen configurations as shown on page # 10... -
Page 6: Control Button Functions
PRO TIMER Control Button Functions START BUTTON (Located on the side of the unit), Press to start a new timing event. The timing begins from the moment the beeper sound is activated. INCR MENU BUTTONS (Marked on the front of the unit MENU REV), these buttons navigate back and forth through the continuous menu loop. -
Page 7: Led And Beeper Alerts
PRO TIMER SET BUTTONS (Marked on the front of the unit INCR DECR), these buttons change a setting that is flashing on one of the menu screens. Note: On screens that have large settable INCR range, you can hold down the button to automatically advance the digits, and press both buttons simultaneously to... -
Page 8: Headset Jack
PRO TIMER Headset Jack A standard 3.5mm stereo headset jack is located on the side of the unit. The Piezo beeper is disabled when a headset is connected for a private practice session. The beeper volume control will also change the headset volume level. Basic Operation If you haven’t done so already, advance through the 14 menu screens and make any adjustments to the default settings to suit your needs. -
Page 9: Menu Flow List
PRO TIMER Menu List Moving forward from the home screen, here is the order of menu screens and a brief description. More detail for each is provided later in this manual. • Review shot string: shot number, time, and split information •... - Page 10 PRO TIMER Individual Menu Screen Detail Review Shot String From the home screen, pressing MENU/FWD, SET/INCR, or SET/DECR will advance to the review screen. Shots will be displayed on the shot review screen in a “one shot per line” format. Reading from left to right, the shot time appears first, followed by the shot number, and finally the split time.
- Page 11 PRO TIMER Par time The par time settings create multiple beeps based on time intervals from the start beep. The ProTimer has the capacity for up to 5 par times which will automatically occur at the user settable time interval for each. The default settings are zero for all 5 par time settings, which effectively turns them off, so in this case there will be only the start beep at the beginning of an event.
- Page 12 PRO TIMER Backlight ON Time The display backlighting can be set for a specific amount of time to remain ON after pressing a button. The settable range is 0 to 99 seconds. Longer time intervals will reduce battery life. Beeper/Headset Volume The volume control for beeper and headset volume can be adjusted from OFF to maximum with 10 levels.
- Page 13 PRO TIMER 5.82 1.00 0.78 SHOT# 5 3:30PM SINGLE TIME ONLY 5.82 This selection will show only the time to the last shot in a large format. ROUNDS PER MINUTE This mode is used for measuring the rate of fire rather than time intervals.
- Page 14 PRO TIMER Shot Dead Time The SHOT DEAD TIME feature is used to reduce false shot recordings due to echoes or ringing normally associated with indoor use. Once a shot is detected, the ProTimer will disregard subsequent shots (echoes) for a short period of time. The default setting is .11 seconds, but can be adjusted from .05 to .12 seconds.
- Page 15 PRO TIMER Hit Factor Scoring In order to obtain the Hit Factor (points per second) score, first you must complete a stage to record the time to the last shot, then enter values for TOTAL STAGE POINTS and POINTS DOWN on the Hit Factor Scoring screen. The score will automatically be calculated on the top line of the display.
-
Page 16: Battery Status, Info And Warning Screens
PRO TIMER Clear Data Use the Clear Data screen to delete unwanted strings by pressing the START button. This cannot be reversed! Battery status, info and warning screens The battery icon shown on the display will appear as -FULL from 8.4 to 9.5 volts -1/2 from 7.8 to 8.3 volts -EMPTY from 7.3 to 7.7 volts -FLASH/EMPTY from 6.5 to 7.2 volts... -
Page 17: Memory Info
PRO TIMER Battery Life and power consumption When the ProTimer is powered OFF, a very small amount of power (approximately 40 microamps) is consumed in order to retain the date/time clock settings. If the unit will be put in storage for several months or more, it is recommended to remove the battery to avoid unnecessary loss of battery life. -
Page 18: Specifications
PRO TIMER Specifications • Operating Temperature: 30-110 degrees Fahrenheit • Accuracy: +/- .01 seconds • Max # of Shots Per String: 70 • Max # of Strings in Memory: 50 • Max # of Rounds per Minute: 1800 • Max # of Par Time Beeps: 5 •... -
Page 19: Warranty
PRO TIMER Return Shipping Address: Contact Us: Competition Electronics, Inc. Phone: 815-874-8001 3469 Precision Dr. FAX: 815-874-8181 Rockford, IL 61109 competitionelectronics.com...
