Kohler GM93357-KP1-QS Installation Instructions

Kohler GM93357-KP1-QS Installation Instructions

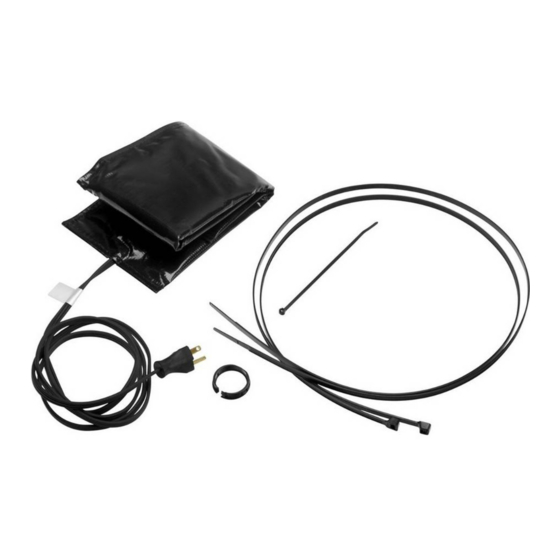

Oil pan heater kits for 24rcl, 30rcl, and 38rclb

Advertisement

Quick Links

Original Issue Date: 6/14
Model: 24RCL, 30RCL, and 38RCLB
Market: Residential/Light Commercial
Subject: Oil Pan Heater Kits GM93357-KP1-QS and GM93357-KP2
Introduction
The oil pan heater warms the oil pan when the ambient
temperature falls below 4_C (40_F), making starting
easier and warmup quicker. See Figure 1 for heater kit
specifications.
The adhesive application of the oil pan heater allows for
a quick and easy installation.
illustrations of installed heater kits.
Note: The oil pan heater must be connected to a utility
power source.
Supply a utility power source for the oil pan heater if one
is not already available. See the drawings supplied with
the generator set for conduit/stub--up locations.
2
1
1. Cord
2. Ambient temperature sensor
3. Oil pan heater

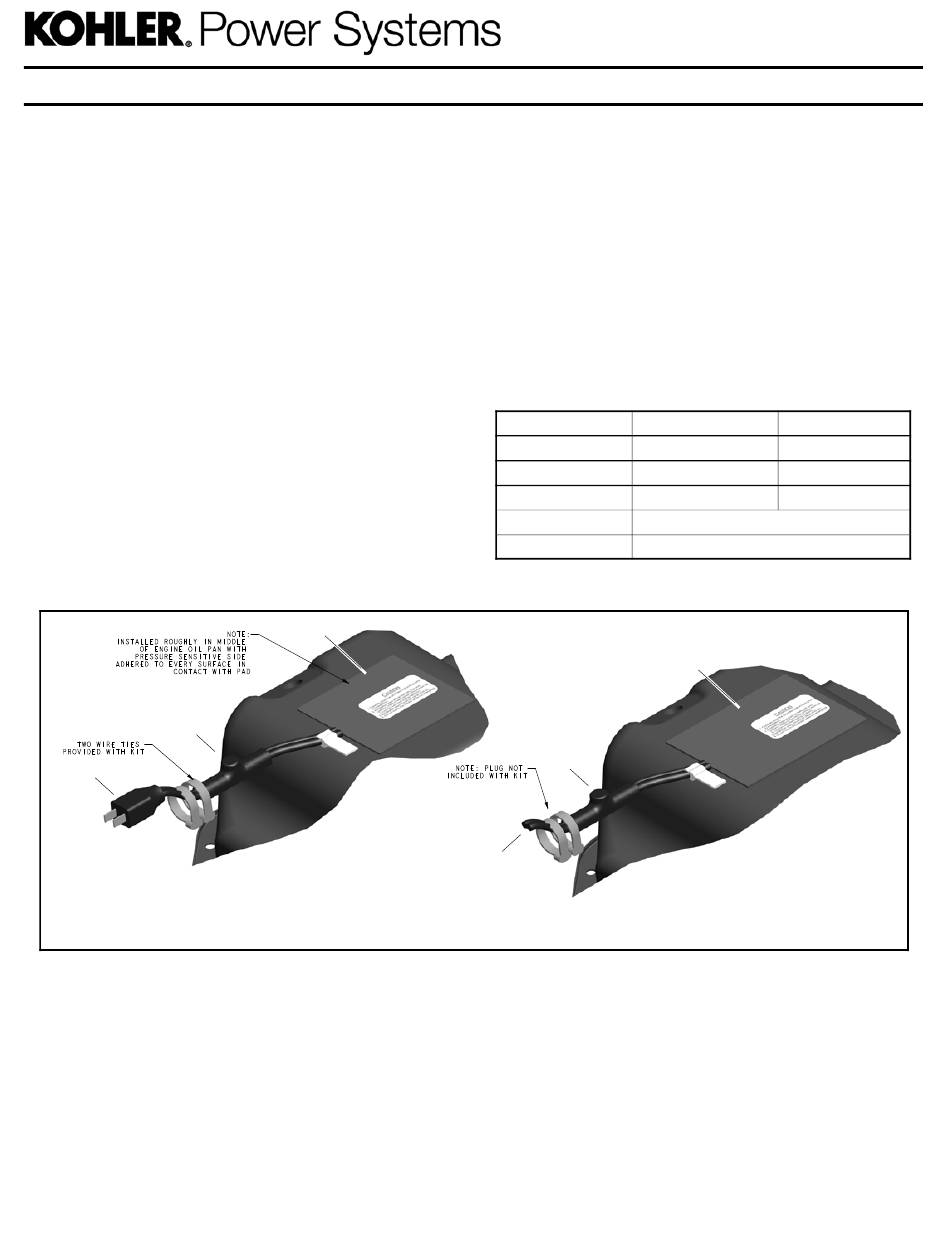

Figure 2 Oil Pan Heater (120 VAC and 240 VAC Shown)
INSTALLATION INSTRUCTIONS
See Figure 2 for
3
GM93357-KP1-QS
For the 120 VAC kit, the oil pan heater cord plugs into a
120 VAC receptacle. For the 240 VAC kit, the oil pan
heater cord connects directly to a 240 VAC power
source.
Read the entire installation procedure before beginning
installation. Perform the steps in the order shown.
Kit Number
GM93357-KP1-QS
Voltage
Amps
Watts
Thermostat ON
Thermostat OFF
Figure 1 Heater Specifications
2
1
GM93357-KP2
TT-1633
6/16b
GM93357-KP2
120 VAC
240 VAC
1.3
0.6
150
150
4 ± 4_C (40 ± 7_F)
16 ± 3_C (60 ± 5_F)
3
GM93357

Advertisement

loading
Need help?

Need help?

Do you have a question about the GM93357-KP1-QS and is the answer not in the manual?

Questions and answers

Summary of Contents for Kohler GM93357-KP1-QS

  • Page 1 Original Issue Date: 6/14 Model: 24RCL, 30RCL, and 38RCLB Market: Residential/Light Commercial Subject: Oil Pan Heater Kits GM93357-KP1-QS and GM93357-KP2 Introduction For the 120 VAC kit, the oil pan heater cord plugs into a 120 VAC receptacle. For the 240 VAC kit, the oil pan...
  • Page 2 Safety Precautions WARNING Observe the following safety precautions while installing the kit. WARNING Hot engine and exhaust system. Can cause severe injury or death. Do not work on the generator set until it cools. Accidental starting. Servicing the engine oil pan heater. Heated components Can cause severe injury or death.
  • Page 3 Installation Procedure Note: To prevent damage, the power cord must not touch heated surfaces moving components. Ensure adequate clearance from 1.1 Remove the generator set from hot surfaces or moving parts. service. 8. Use the wire ties provided to secure the power cord as needed and to provide strain relief.
  • Page 4 TT-1633 Oil Pan Heater Oil Pan Heater Availability is subject to change without notice. Kohler Co. reserves the right to change the design or specifications without notice and without any obligation or liability whatsoever. Contact your local Kohlerr generator set distributor for availability.
