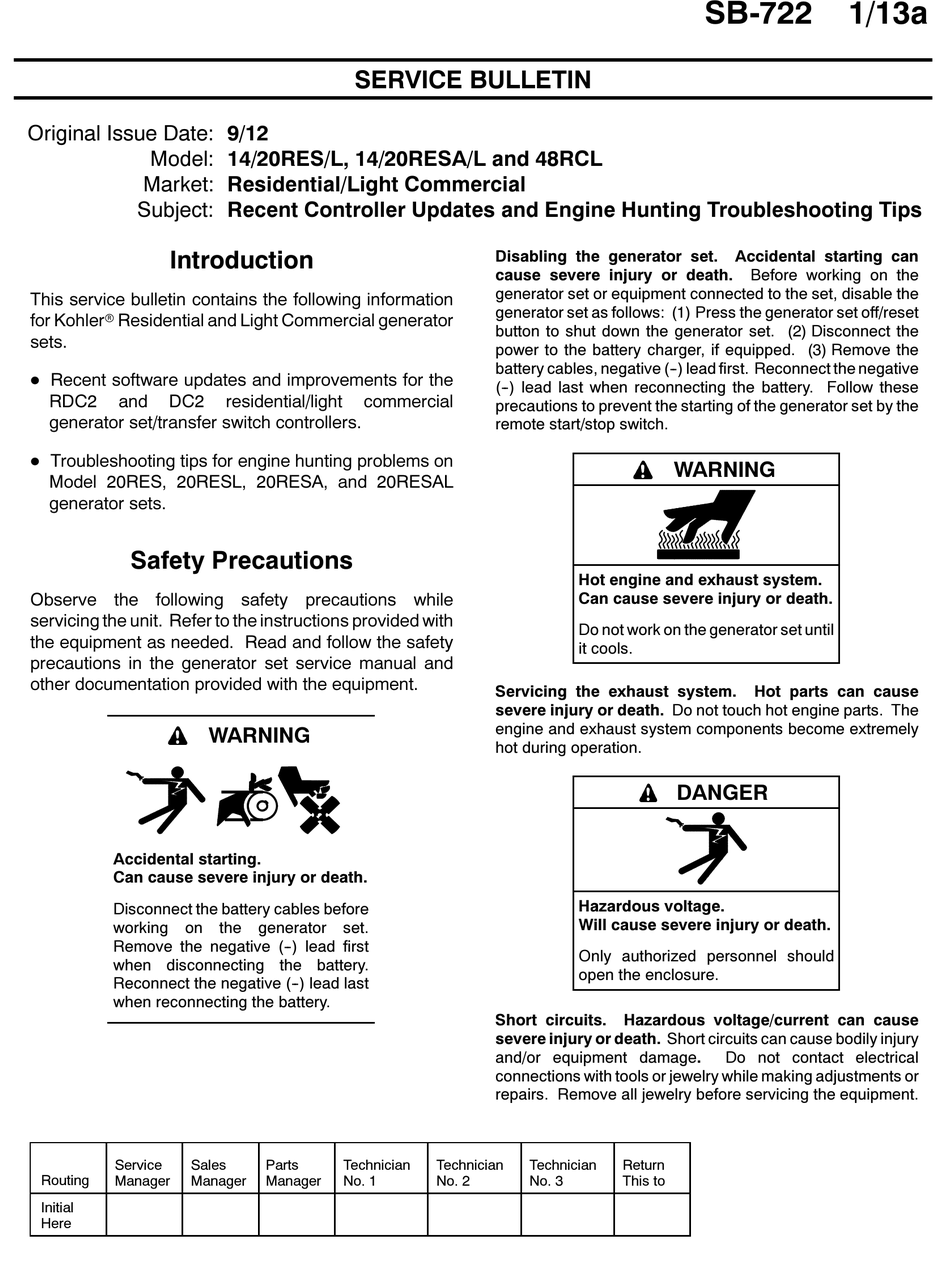

Kohler 14RES Troubleshooting Manual

Original Issue Date: 9/12
Model: 14/20RES/L, 14/20RESA/L and 48RCL
Market: Residential/Light Commercial
Subject: Recent Controller Updates and Engine Hunting Troubleshooting Tips
Introduction
This service bulletin contains the following information
for Kohlerr Residential and Light Commercial generator
sets.
D
Recent software updates and improvements for the
RDC2 and DC2
generator set/transfer switch controllers.
D
Troubleshooting tips for engine hunting problems on
Model 20RES, 20RESL, 20RESA, and 20RESAL
generator sets.
Safety Precautions
Observe the following safety precautions while
servicing the unit. Refer to the instructions provided with
the equipment as needed. Read and follow the safety
precautions in the generator set service manual and
other documentation provided with the equipment.
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working on the
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
Service Sales
Routing
Manager Manager
Initial
Here
SERVICE BULLETIN
residential/light commercial
WARNING
generator set.
Parts Technician
Manager No. 1
Disabling the generator set.
cause severe injury or death.
generator set or equipment connected to the set, disable the
generator set as follows: (1) Press the generator set off/reset
button to shut down the generator set. (2) Disconnect the
power to the battery charger, if equipped. (3) Remove the
battery cables, negative (--) lead first. Reconnect the negative
(--) lead last when reconnecting the battery. Follow these
precautions to prevent the starting of the generator set by the
remote start/stop switch.
Hot engine and exhaust system.
Can cause severe injury or death.
Do not work on the generator set until
it cools.
Servicing the exhaust system.
severe injury or death. Do not touch hot engine parts. The
engine and exhaust system components become extremely
hot during operation.
Hazardous voltage.
Will cause severe injury or death.
Only authorized personnel should
open the enclosure.
Short circuits.
severe injury or death. Short circuits can cause bodily injury
and/or equipment damage.
connections with tools or jewelry while making adjustments or
repairs. Remove all jewelry before servicing the equipment.
Technician Technician
No. 2 No. 3
SB-722
Accidental starting can
Before working on the
WARNING
Hot parts can cause
DANGER
Hazardous voltage/current can cause
Do not contact electrical
Return
This to
1/13a
