GENERAL
These installation instructions cover the 30MPA, MPW units
with ComfortLink controls. The 30MPA units are condenserless
units and the 30MPW units are all fluid cooled.
SAFETY CONSIDERATIONS
Installing, starting up, and servicing this equipment (Fig. 1
and 2) can be hazardous due to system pressures, electrical
components, and equipment location (roofs, elevated struc-
tures, etc.). Model number structure is shown in Fig. 3.
Only trained, qualified installers and service technicians
should install, start up, and service this equipment.
When working on the equipment, observe precautions in the
literature and on tags, stickers, and labels attached to the
equipment.
• Follow all safety codes.
• Wear safety glasses and work gloves.
• Use care in handling, rigging, and setting bulky
equipment.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53300054-01
Installation Instructions
Page
Printed in U.S.A.
with Scroll Compressors
and COMFORTLINK™ Controls
.
Electrical shock can cause personal injury and death. Shut
off all power to this equipment during installation. There
may be more than one disconnect switch. Tag all discon-
nect locations to alert others not to restore power until work
is completed.

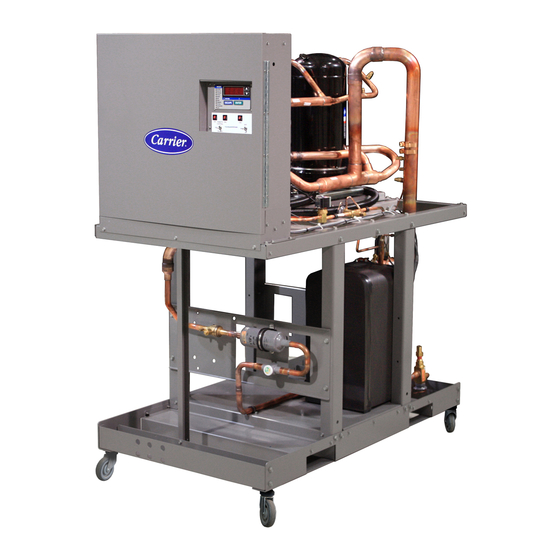

a30-5029

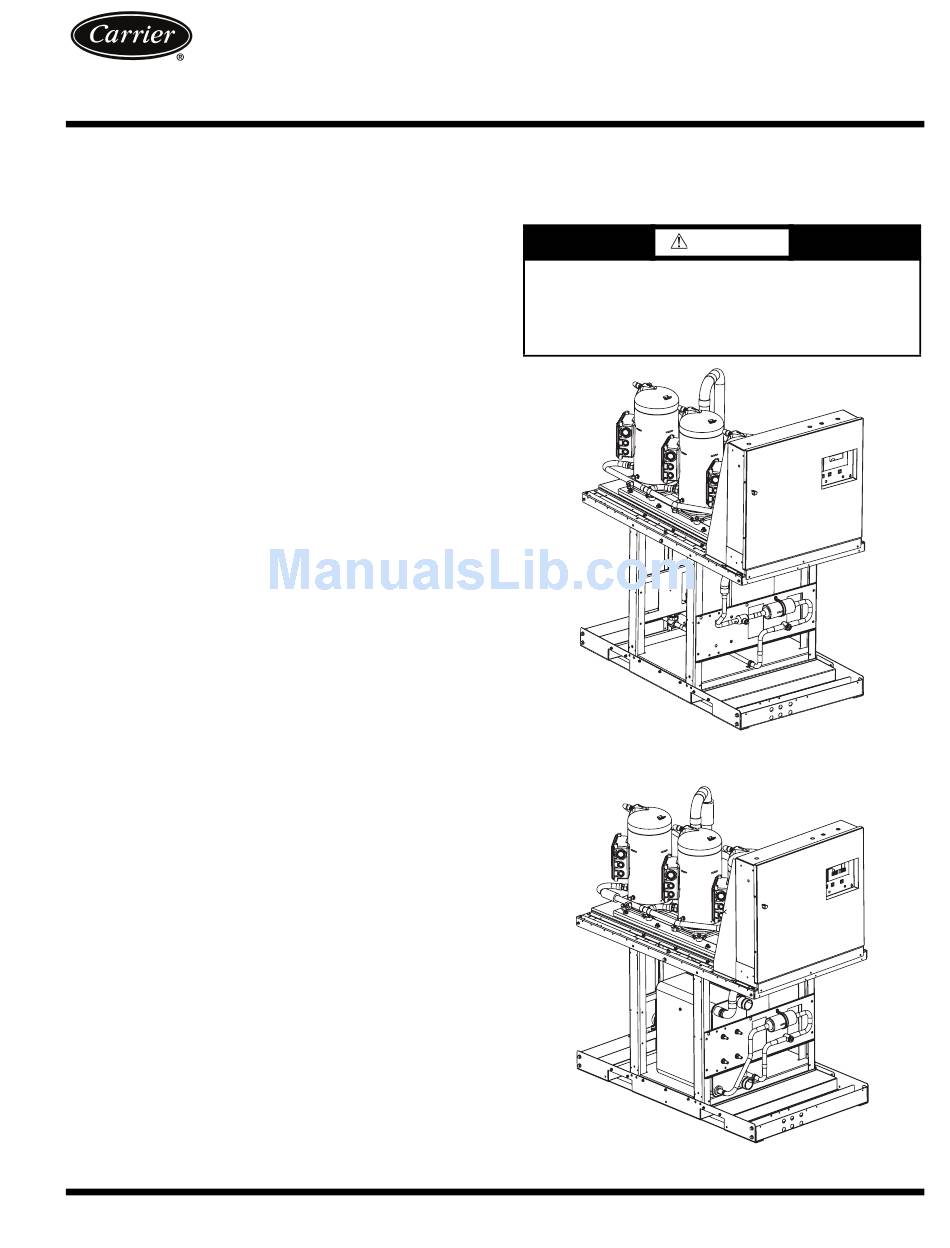

Fig. 1 - 30MPA Unit
a30-5030
Fig. 2 - 30MPW Unit
Form 30MP-1SI
Pg 1
AQUASNAP
30MPA,MPW015-045
Liquid Chillers
WARNING
910
1-10
Replaces: New
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carrier AQUASNAP 30MPA
Summary of Contents for Carrier AQUASNAP 30MPA
-
Page 1: Table Of Contents
Installation Instructions CONTENTS GENERAL ........1 SAFETY CONSIDERATIONS . -
Page 2: Installation
30MP – Aquasnap® Liquid Chiller with ComfortLink™ Controls Condenser Option A – Chiller without Condenser (Air-Cooled) W – Chiller with Condenser (Water-Cooled) Unit Size – Nominal Tons (kW) 015 – 15 (54) 040 – 40 (138) 020 – 20 (71) 045 –... - Page 3 a30-5032...
- Page 4 a30-5033...
- Page 5 Table 1A — 30MPA Air-Cooled and 30MPW Liquid-Cooled Units — English UNIT 30MPA,MPW NOMINAL TONS OPERATING WT (lb) REFRIGERANT (lb) COMPRESSOR Quantity Speed (rpm) Compressor Nominal Tons Oil Charge (pt) Capacity Control — Standard No. of Steps Minimum Step Capacity (%) Capacity Control —...
- Page 6 Table 1B — 30MPA Air-Cooled and 30MPW Liquid-Cooled Units — SI UNIT 30MPA,MPW NOMINAL KW OPERATING WT (kg) REFRIGERANT (kg) COMPRESSOR Quantity Speed (r/s) Compressor Nominal kW Oil Charge (L) Capacity Control — Standard No. of Steps Minimum Step Capacity (%) Capacity Control —...
-
Page 7: Step 3 - Place The Unit
NOTE: These units are not suitable for unprotected outdoor use. Carrier recommends that these units be located in the base- ment or on the ground floor. However, if it is necessary to lo- cate the unit on an upper floor, be sure the structure has been designed to support the unit weight. - Page 8 a30-4997...
- Page 9 Units should be installed using certified drawings. 3. All wiring must comply with applicable local and national codes. 4. All piping must follow standard piping techniques. Refer to Carrier System Design Manual part 3, Carrier E20-II software Refrigerant 09DP...
- Page 10 (not neces- sarily the connection size), especially on cooling tower applica- tions. See Carrier System Design Manual, Part 3, Piping Design. See Fig. 11 for condenser pressure drops. Set water regulating valve, if installed, to maintain design head pressure.
-
Page 11: Condenser Water Pressure Drop
a30-5036 LEGEND 1 — 30MP015 2 — 30MP020 3 — 30MP030 4 — 30MP040 5 — 30MP045 Fig. 11 — Condenser Water Pressure Drop ENGLISH 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 Liters/second a30-5037... - Page 12 a30-5034 LEGEND 1 — 30MP015 2 — 30MP020 3 — 30MP030 4 — 30MP040 5 — 30MP045 Fig. 12 — Evaporator Water Pressure Drop ENGLISH Liters/second a30-5035...
-
Page 13: Air Separation
Freezing damage caused by an improperly cleaned system represents abuse and may impair or otherwise negatively affect the Carrier product warranty. 1. Install a temporary bypass around the chiller to avoid cir- culating dirty water and particulates into the pump pack- age and chiller during the flush. -
Page 14: Step 7 - Make Electrical Connections
Set Water Flow Rate — Once the system is cleaned, pressur- ized, and filled, the flow rate through the chiller needs to be established. NOTE: Carrier recommends a differential pressure gage when measuring pressures across the pumps or balancing valves. This provides for greater accuracy and reduces error build-up that often occurs when subtracting pressures made by different gages. - Page 15 EXAMPLE: Supply voltage is 240-3-60. AB = 243 v BC = 236 v AC = 238 v 243 + 236 + 238 Average Voltage = = 239 v Determine maximum deviation from average voltage: (AB) 243 – 239 = 4 v (BC) 239 –...
- Page 16 Copyright 2010 Carrier Corporation Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Catalog No. 04-53300054-01 Printed in U.S.A. Form 30MP-1SI Pg 16 1-10 Replaces: New...
