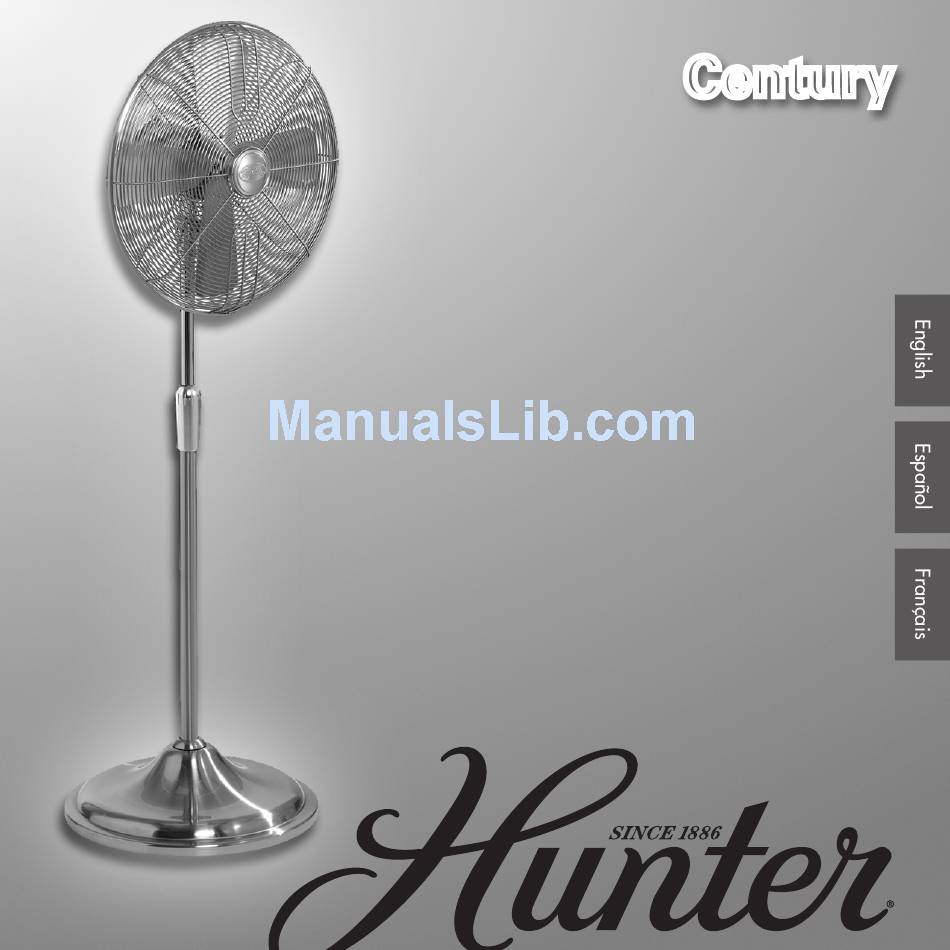

Page 1: Stand Fan
Century Stand Fan Owner’s Guide and Installation Manual Manual De Propietario Guide De L’utilisateur Model/Modelo/Modèle 90121, 90122, 97121 & 97122 44803 20081104 ©2008 Hunter Fan Co. - Page 2 WElcomE Thank you for choosing a Hunter Pedestal Fan. This manual gives you complete instructions for using your fan. Here are some the features you will enjoy with your fan: • An attractive design that enhances any decor • A powerful Hunter motor for maximum air flow •...
-
Page 3: Tools Needed
English As you unpack the fan, save the carton and packing materials in case you want to move or ship the unit in the future. Carefully remove all items from the box. NOTE: It is best to have someone hold the box while you lift the fan and the protective packaging out of the carton. - Page 4 5. Use fan only for intended use, as described in this instruction manual. 6. To protect against electrical shock, use fan with only GFcI protected receptacles when using the fan in damp or outdoor locations. 7. NEVER insert fingers, pencils or any other objects through the grille.
- Page 5 13. Do NoT use near curtains, plants, window treatments, etc. 14. Never operate the fan if the grills are not properly installed. operating the fan without the grills could result in serious injury. 15. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
-
Page 6: Grounding Instructions
120-volt AC electrical outlet (ordinary household current). DO NOT use any other type of outlet. The power cord has a grounded plug [a]. The fan must be plugged into an electrical outlet [b] that can accommodate the grounding pin [c]. - Page 7 When the fan is used outdoors or in a damp or wet location, it must be plugged into a Ground Fault Circuit Interruptor (GFCI) receptacle [a]. Si va a usar esta unidad en exteriores o en un lugar húmedo o mojado, se debe conectar a un receptáculo con interruptor automático por falla de puesta a tierra (GFCI) [a].
- Page 8 6. Do NoT operate appliance if the line cord shows any damage, if the appliance works intermittently or stops working entirely. 7. Do NoT use an extension cord with this fan. coNSEJoS DE SEGURIDAD PARA El coRDÓN ElÉcTRIco 1. NUNcA tire del cordón del aparato eléctrico.
- Page 9 NOTE: Assembly of this fan will be easier if performed by two people. Insert and twist Cover Support Cap [a] and Telescoping Pole [b] clockwise in the Base [c] until it is tight. NOTA: Este ventilador se ensambla más fácilmente entre dos personas.
- Page 10 Insert and twist Cover Support Cap [a] into the Base [b ] until it is tight. Introduzca y gire la tapa de la cubierta [a] en la base [b ] hasta que esté apretada. Insérer et visser le capuchon de support du couvercle [a] dans le socle [b ] jusqu’à...
- Page 11 Connect the Plugs coming from the bottom of the Telescoping Pole [a] and the Base [b]. Gire en sentido anti-horario y retire la empuñadura de ajuste de altura [a]. Dévisser (dans le sens antihoraire) et retirer la poignée d’ajustement de hauteur [a]. Align the 3 screw [a] with the holes in the Electrical Cover [b] and twist clockwise to secure.
- Page 12 Re-install the screw that you removed from Step 4. Reinstale el tornillo que retiró en el Paso 4. Reposer la vis retirée à l’étape 4. Twist Height Adjument [a] counter clockwise and raise the Telescoping Pole [b]. Gire el ajuste de altura [a] en sentido antihorario y levante el tubo telescópico [b].
- Page 13 Connect the Plugs from the Fan Assembly [a] and the Telescoping Pole [b]. Conecte los enchufes del conjunto del ventilador [a] y el tubo telescópico [b]. Connecter les fiches du ventilateur [a] et de la tige télescopique [b]. Lower the Fan Assembly [a] onto threaded portion of the Telescoping Pole [b] and twist clockwise until tight.
- Page 14 Tighten Fan Assembly Set Screw [a]. Apriete el tornillo de fijación del conjunto del ventilador [a]. Serrer la vis de blocage du ventilateur [a]. Remove the upper left Grille Mounting Screw [a] from the Motor Face. Loosen the three remaining Grille Mounting Screws [b].
- Page 15 Align the three keyhole slots in the Back Grille with the three remaining Grille Mounting Screws in the Motor Face. Rotate the Back Grille clockwise to situate the screws in the narrow ends of the keyhole slots. Reinstall and tighten the Upper Left Mounting Screw [a] and tighten the remaining three remaining Grille Mounting Screws.
- Page 16 Slide the Blade Assembly Sleeve [a] over the Motor Shaft [d], ensuring the Blade Assembly Screw [b] is positioned over the Flat Portion of the Motor Shaft [c]. Tighten the Blade Assembly Setscrew so that it seats against the Flat Portion of the Motor Shaft.
- Page 17 Place the Grille Ring over the Front and Back Grille Rims. Bring the two ends of the Grille Ring together, and secure them with Grille Ring Latch [a]. Coloque el anillo de la rejilla sobre los bordes de las rejillas delantera y posterior.
- Page 18 Angle Adjust knob [b]. 6. To make the fan oscillate, push the Oscillation Pin [c] down. To stop the fan from oscillating, pull the Oscillation Pin [c] up. 7. To adjust the height of your fan, hold the Telescoping Pole securely with one hand, and twist the Height Adjustment Grip counterclockwise.
-
Page 19: Maintenance
1. Before cleaning, turn the fan off and remove the plug from electrical outlet. Wipe off excess dust with a lint- free cloth. 2. DO NOT immerse the fan in water or any other liquid. mANTENImIENTo Este ventilador está lubricado permanentemente y no requerirá... - Page 20 • Push down the Oscillation Pin on top of motor housing to activate oscillation. See page 8. SOLUTION • Loosen the Angle Adjustment Knob on the side of the fan neck. Adjust to the desired angle and tighten the knob. See page 8.
- Page 24 44803 20081104 ©2008 Hunter Fan Co.
