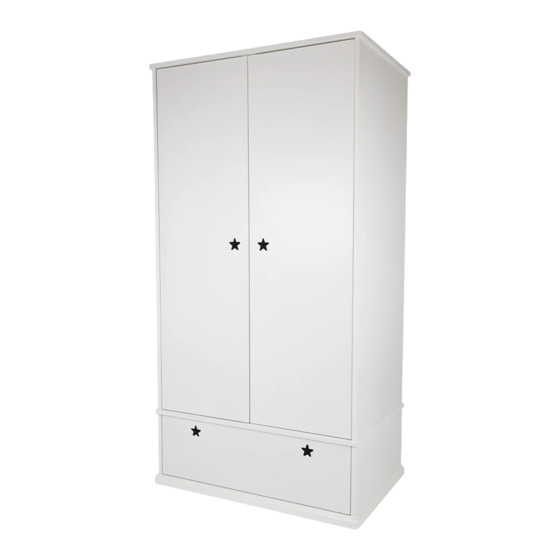

Star Bright Wardrobe
Assembly Difficulty
two-person job
easy - medium -
hard
Thank you for shopping with GLTC, we hope you enjoy having
this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail through
the whole process. But if it all feels a bit too much like hard work, then
we do have an assembly company we can recommend: the Flatpack
Construction Company offers a nationwide service and can be
contacted on 0843 289 4951 or www.flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the
tools you need at the beginning of the instructions.
•
It's a good idea to build the unit in the room where you are going to be
using it, to avoid the need to move it after it's been assembled.
•
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V5
30/05/2019
1
Advertisement
Related Manuals for Great Little Trading l3939
Summary of Contents for Great Little Trading l3939
- Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Hopefully our efforts will have been worthwhile and you’ll sail through Star Bright Wardrobe the whole process.
-
Page 2: Customer Service
Safety Warnings: Customer Service: • If you find that any components are missing or damaged, please do • Adult assembly required. not begin assembly and do not use the item. Please contact GLTC • Unassembled product contains small parts which may present a Customer Services on 0344 848 6000 immediately. -
Page 3: Component Checklist
Component Check List Component Check List 1x Upper LH Side Panel 1x Upper RH Side Panel 1x Lower Back Panel 1x LH Drawer Side 2x Back Rails 1x Top Panel 1x RH Drawer Side 1x Drawer Front 1x Mid Panel 1x LH Lower Side Panel 1x Drawer Back 1x Drawer Base... - Page 4 Component Check List Component Check List 24x Cam Dowels 24x Cam Locks 1x RH FlatRunners 1x RH ‘L-Shaped’ Runner 35mmL 14mm Diameter 1x LH ‘L-Shaped’ Runner 2x Rail Mount Plates 16x Wooden Dowels 4x Screws Note: These plates may come connected to 20mmL 25mmL Part #13, please unscrew to separate.
- Page 5 STEP 2: STEP 1: Prepare the top panel (D) by You will need plenty of space to build this unit as the panels are large. We also FRONT inserting 6x cam dowels (#1). suggest you use a carpeted area to protect the panels during the build. Firstly, decide on the desired height of the hanging rail.
- Page 6 STEP 4: STEP 5: FRONT Insert 4x wooden dowels (#4) to top panel (D) and connect to side panels A and B Prepare panel E by inserting 6x securing with 6x cam locks (#2). cam dowels (#1) where indicated. Note: Rounded corners and block on top panel D to be uppermost. Note the correct position of this hardware - there are more drill holes here...
- Page 7 STEP 7: STEP 8: NOTE: The back edge of the panels is the one with the groove along it. Insert 4x wooden dowels (#4) to panel E and connect side panels F and G as shown Attach LH flat runner (#10) to panel F as shown ensuring that the wheel of the ensuring that the wheel of the runners is at the top.
- Page 8 STEP 9: STEP 10: Insert 4x wooden dowels (#4) and 6x barrel nuts (#5) to the ends of panels F and IMPORTANT: Two people are needed to complete the next step safely. G. Position base panel H to the ends of panels F and G ensuring that the rounded Carefully turn the unit over so the back is facing up.
- Page 9 STEP 11: STEP 12: Place back panels K, J and I onto the ledged recess on the back of the unit ensuring Attach LH L-shaped’ runner (#13) to drawer side panel L as shown with 3x screws that the holes in the panels match the pilot holes in the unit. Secure the panels with (#8).
- Page 10 STEP 13: STEP 15: Attach RH L-shaped’ runner (#12) to drawer side panel M as shown with 3x screws Create the drawer by attaching side panels (L & M) to the drawer back panel (O) (#8). Ensure that the wheel of the runner is at the end with the 2x pilot holes. using 4x screws (#14).
- Page 11 STEP 16: STEP 17: Slide the drawer into the wardrobe. Insert the hanging rail. Thread the two collars (#15) onto the rail making sure the threaded ends are facing away from each other and towards each end of the rail itself. Insert one end of the rail into the mounting plate on the side panel and tighten, then position and tighten the remaining end to the remaining mounting plate.
- Page 12 STEP 18: STEP 19: Fitting the hinges. Attach the 3x hinges (#17) to the back of the LH door R using 6x screws (#7). Attach the 3x hinge base plate (#16) to both of the side panels. There are 3 hinges for Repeat for the RH door S.
- Page 13 STEP 20: STEP 21: Attaching the doors. Attaching the doors. Ensure that all the hinges are in the open position (as shown) on the RH Door S. Repeat step 20 for the LH door R. Once all hinges are installed on both doors, you can check the alignment of the With the assistance of a second person to support the door, start at with the bottom door and adjust as required.
- Page 14 STEP 22: Your unit is now ready to use. Before you use your unit, we strongly advise that you attach the anti-tip kit (included) to the wardrobe to secure this product to the wall. Please use the pilot holes on the back panel (highlighted in step 11) to attach the anti- tip brackets using the hardware included with the kit.
- Page 15 When correct position is achieved, repeat with the second door. When in the corrected position, re-tighten the screws. Repeat with the second door. Copyright© 2016 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
