Summary of Contents for DeDietrich DRL1770EB

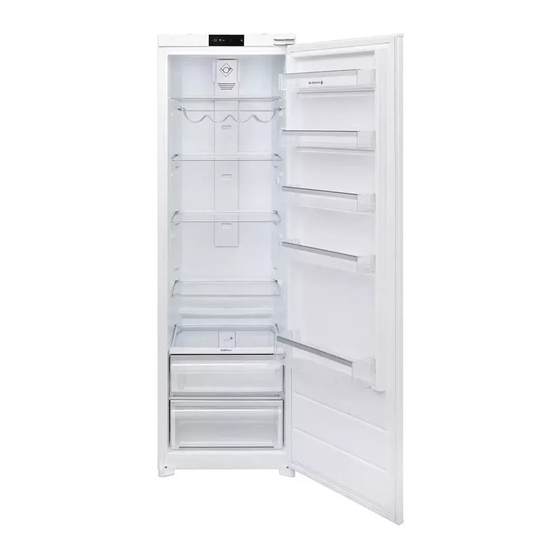

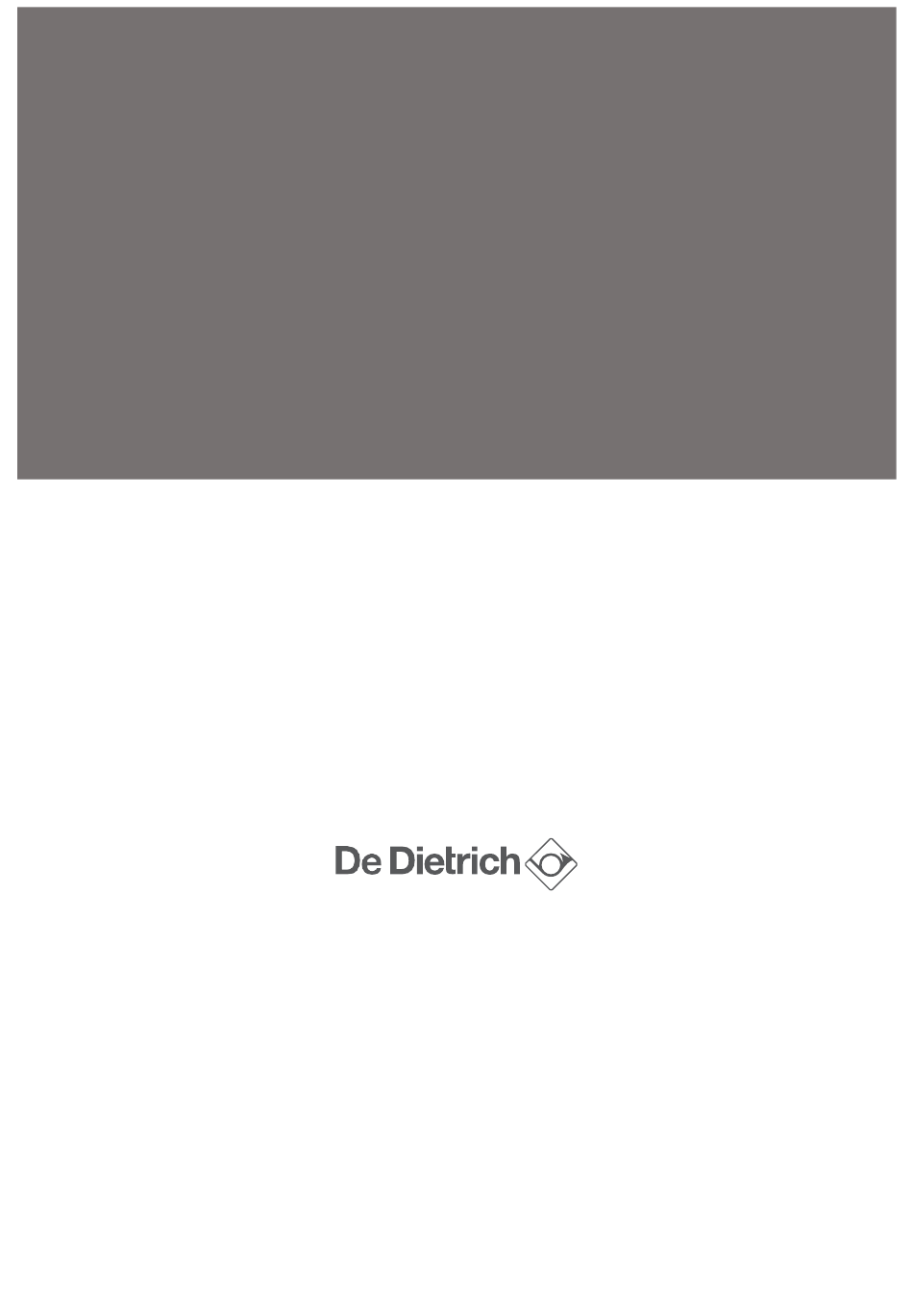

- Page 1 FR GUIDE D'UTILISATION EN GUIDE TO INSTALLATION Réfrigérateur Refrigerator Ref: DRL1770EB...
-
Page 2: Dear Customer
DEAR CUSTOMER, Discovering De Dietrich products is experiencing unique emotions that only valuable objects can produce. The appeal is immediate at first glance. The quality of the design is illustrated by the timeless aesthetics and the meticulous finishes that make each object elegant and refined in perfect harmony with each other. - Page 3 SAFETY This appliance complies with the European directives. SAFETY GUIDELINES For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use. To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.
-
Page 4: Installation Safety
The refrigerating and insulating agents used in this appliance contain inflammable gases. When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged: Avoid naked flames and all sources of inflammation. ... -
Page 5: Food Safety
understood. Children must not play with the appliance. Children must not clean and maintain the appliance without supervision. Children aged 3 to 8 are allowed to load and unload refrigeration appliances. Keep all the packaging materials out of the reach of children, as they can cause suffocation. - Page 6 If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.
- Page 7 DISPOSAL This symbol indicates that this product should not be treated as household waste. Only dispose of the appliance in certified collection centres. Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.
- Page 8 ECODESIGN To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/ Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.
- Page 9 Energy-saving measures In order to reduce the power consumption of your appliance: • Install it in a suitable location (see "Installing your appliance"). • Leave the doors open for the shortest time possible. • Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
-
Page 10: Installation
INSTALLATION Care before installation Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Never use detergents or abrasive cleaners, they will damage the inside coating. - Page 11 How to reverse the door • Ensure the unit is unplugged and empty. • To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process. •...
- Page 12 Installation Kits for installation *Depending on models Tools needed...
- Page 13 Installation instructions...
- Page 14 1. Ensure the size of cabinet is enough for proper ventilation.
- Page 15 2. Install the side cover gasket on the side where the door opens, to close the gap between the appliance and the wooden cabinet. Attach the top cover bracket to the appliance. *Depending on models...
- Page 16 3. Carefully slide the appliance into the cabinet. Make sure the opening side of the door is as close as possible to the cabinet wall. *Depending on models...
- Page 17 4. Do not plug in the appliance. Fix the top cover bracket and feet to the cabinet.
- Page 18 5. Screw a guide into the holes on the appliance side. Insert the sliding rail into the guide and screw it to the door. Unscrew the guide to screw the last screw of the sliding rail to the door. Then attach the sliding rail cover to the sliding rail. Screw the guide back onto the unit by inserting the slide.
- Page 19 Levelling the appliance Choose a place to install the refrigerator on a flat surface. If the appliance is not level, the doors will not be correctly aligned and compartment sealing will not be ensured. Electrical connections Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.
-
Page 20: Use & Tips
USE & TIPS "COLD AREA" indicator The sign opposite can be found in your fridge. It clearly shows the coldest zone of your appliance, where the temperature is lower than or equal to +4°C. A temperature gauge in this zone allows you to check the settings of your fridge. Adjust the thermostat Temperature correct Warning! - Page 21 Super cool mode This mode allows to cool and store a large quantity of food in the fridge compartment, and to quickly cool drinks. • Scroll through the different temperatures until the wanted temperature for the Super cool mode appears. •...
- Page 22 Daily use Your refrigerator compartment is equipped with shelves, door racks and drawers with various logos to help you store your food in the right place. Using the shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.
- Page 23 Hints and Tips • The refrigerator is a domestic appliance suited to short-term conservation of food products like fruit, vegetables, drinks, etc. • Do not use it as a specialised appliance for storing products that require storage in line with strict temperature rules, like medicines, etc.
-
Page 24: Care And Cleaning
CARE & CLEANING Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself. Cleaning For hygiene reasons, regularly clean the appliance (sidewalls and interior and exterior accessories). Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid. - Page 25 Troubleshooting Warning! If there is any anomaly, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting. If there is any anomaly during operation, check the following points before calling our approved after sales service or a qualified professional. ERROR MEANING WHAT TO DO...
- Page 26 Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.). If you cannot find the cause of the anomaly, only call our approved after sales service ...
-
Page 27: Contacts & Information
CONTACTS & INFORMATION Customer Relations For more information about our products or to contact us, please: Visit our website: www.de-dietrich.com Servicing and repairs, Any repairs to your appliance must be made by a qualified professional accredited to work on the brand.
