Summary of Contents for DeDietrich DRS604MU
- Page 1 INSTRUCTION FOR USE Refrigerator-freezer...
- Page 3 In the DE DIETRICH product range, you will also find a wide choice of hobs, ovens, microwaves, hoods, dishwashers, cookers, freezers, that you can coordinate with your new DE DIETRICH fridge. Visit our website www.dedietrich-electromenager.com, where you will find our latest innovationsas well as useful and complementary information. DE DIETRICH...
- Page 4 The appliance is intended solely for household use. The lower part is the refrigerator compartment intended for storing fresh food at temperatures above 0°C. The upper part is the freezer compartment intended for freezing fresh food and long-term storage of frozen food (up to one year, depending on the type of food).
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION IMPORTANT NOTES AND WARNINGS ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES 10 APPLIANCE DESCRIPTION APPLIANCE DESCRIPTION 11 INSTALLATION AND CONNECTION 12 OPERATING THE APPLIANCE 14 APPLIANCE INTERIOR EQUIPMENT 16 STORING FOOD IN THE REFRIGERATOR STORING AND 17 FREEZING AND STORING FROZEN FOOD FREEZING FOOD 17 Freezing process... -
Page 6: Important Notes And Warnings
IMPORTANT NOTES AND WARNINGS This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 7 The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. The appliance may not be used outdoors and it may not be exposed to rain. After installation, the appliance plug has to be readily accessible.
- Page 8 Rating plate can be found in the appliance interior. If the language on the rating plate is not the language of your choice or the language of your country, replace it with the one supplied. WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-
Page 9: Advice For Saving Power With Refrigeration Appliances
ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES • Install the appliance as specifi ed in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • Condenser unit on the rear wall should be kept clean (see chapter Cleaning the appliance). -
Page 10: Appliance Description

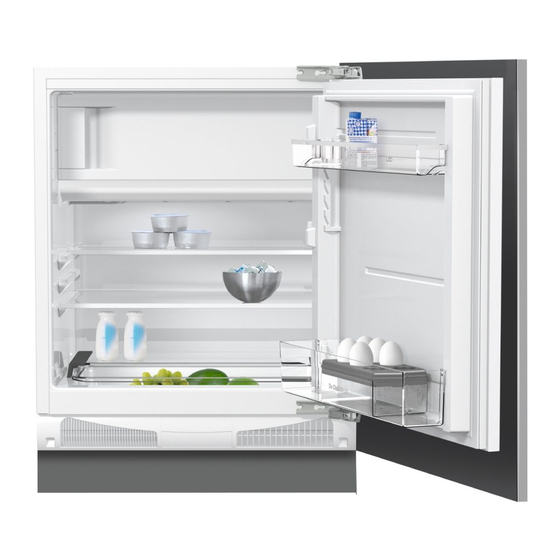

APPLIANCE DESCRIPTION A Refrigerator B Freezer Control unit 2 Refrigerator interior lighting 3 Glass shelf (height adjustable) 4 Drain port 5 Serving tray 6 Fruit and vegetable bin 7 Height-adjustable door bin 8 Bottle bin 9 Condensate tank • Appliance interior equipment may change according to the appliance model. -
Page 11: Installation And Connection
INSTALLATION AND CONNECTION SELECTING THE ROOM • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specifi ed in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance. Class Temperature from +10°C to +32°C... -
Page 12: Operating The Appliance
OPERATING THE APPLIANCE A Temperature setting and on/off knob TURNING THE APPLIANCE ON/OFF Turn on: rotate the thermostat knob clockwise towards position 7. Turn off: rotate the knob back to position STOP (0). - Page 13 SETTING THE TEMPERATURE Higher settings (towards 7) selected with the knob correspond to lower (cooler) temperatures. The temperature in the refrigerator interior may drop below 0°C. Only use higher settings when a lower temperature is desired and recommended or when environment temperature is lower than 16°C.
-
Page 14: Appliance Interior Equipment
APPLIANCE INTERIOR EQUIPMENT (* Equipment depends on the model) SHELF The shelf may be adjusted to your liking using the guides in the refrigerator interior. The shelf is protected against being completely pulled out. To change the shelf position: - Lift the shelf with your hand and pull it towards you as far as the clearance in the guides. - Page 15 SERVING TRAY • The serving tray is located above the fruit and vegetables bin. It can be used as a refrigerator compartment shelf and as a serving tray. INTERIOR SIDE OF THE REFRIGERATOR DOOR The bins mounted on the interior side of the refrigerator door are intended for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc.
-
Page 16: Storing Food In The Refrigerator
STORING FOOD IN THE REFRIGERATOR IMPORTANT WARNINGS REGARDING FOOD STORAGE Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards has a decisive impact on the quality of food storage. Observe the expiry dates for the food, specified on the packaging. -
Page 17: Freezing And Storing Frozen Food
FREEZING AND STORING FROZEN FOOD FREEZING PROCESS Maximum amount of fresh food that may be inserted at once is specified on the appliance rating plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior;... -
Page 18: Storage Of Industrially Frozen Food
STORAGE OF INDUSTRIALLY FROZEN FOOD • When storing and using frozen food, observe the manufacturer's instructions. Temperature and expiry date are indicated on the packaging. • Only choose food with undamaged packaging, stored in freezers at temperatures of -18°C or lower. •... -
Page 19: Defrosting The Appliance
DEFROSTING THE APPLIANCE AUTOMATIC REFRIGERATOR DEFROSTING Refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. The droplets are collected in a groove/gutter, drained trough a hole, and discharged into a tray in the bottom of the appliance base. -
Page 20: Cleaning The Appliance
CLEANING THE APPLIANCE Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface. -
Page 21: Troubleshooting
TROUBLESHOOTING Problem: Cause or remedy: Appliance is connected • Make sure there is voltage in the power outlet and that to the power mains but it the appliance is switched on. does not work. Cooling system operates • Too high environment temperature. continuously for a long •... - Page 22 Problem: Cause or remedy: • Before replacing the bulb, disconnect the appliance from Replacing the bulb: the power mains (unplug the power cord from the wall outlet / socket). Insert a screwdriver into the slot in the cover, lift it and remove it. Replace the bulb with a new one (E14, same power rating as the one provided by the manufacturer) and replace the cover.
-
Page 23: Information About Appliance Noise
INFORMATION ABOUT APPLIANCE NOISE Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance. •... - Page 24 HTPI1466 BIU600 DED en (01-16)
