Summary of Contents for Monoprice 3G SDI 8x8 Matrix

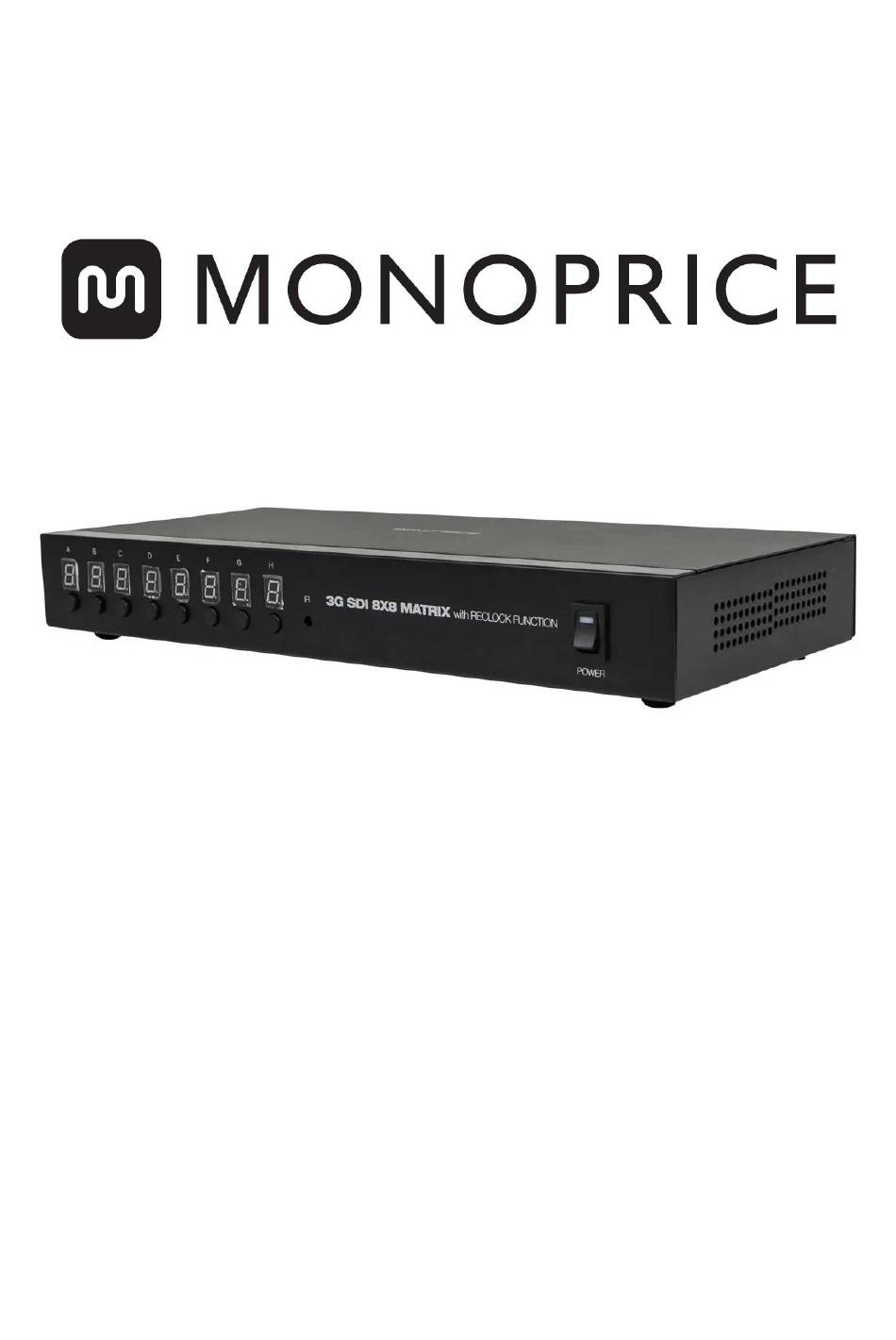

- Page 1 3G SDI 8x8 Matrix P/N 11753 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... - Page 3 INTRODUCTION This 3G SDI 8x8 Matrix features eight SDI inputs and eight SDI outputs, with the ability to route any input to any or all outputs. It supports long SDI cable runs (up to 100m for 3G mode) and data rates from 270Mbps to 2.97Gbps. The video outputs are reclocked, with support for multiple slopes.
-
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Installation
5. INPUT: Eight BNC connectors for connecting up to eight SDI displays using RG-6 or RG-59 cables (available separately). SDI CABLES SDI cables are constructed using RG-6 or RG-59 75-ohm coaxial cable, terminated with BNC connectors on each end. INSTALLATION Perform the following steps to connect the switch to your SDI input and output devices, as well as a PC for automated control using the RS-232 serial interface. -
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM MANUAL CONTROL The front panel features 8 LED digital displays, labeled A-H, corresponding to the eight SDI outputs. Press the button below the LED display to increment the input source number, from 1 to 8 and then back to 1 again. Any output channel can use any of the inputs. REMOTE CONTROL Note: Before using the included remote control, remove the plastic insert that protects the installed battery from accidental discharge. - Page 7 • Select: Use the in and out buttons to set the input for any given output. To make the selection, first press the letter button (A-H) corresponding to the output you wish to change, then press the number button (1-8) corresponding to the input you want to assign to the selected output.
-
Page 8: Troubleshooting
Try using a different RS-232 cable. TECHNICAL SUPPORT Monoprice™ is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 9: Specifications
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to... - Page 10 • Consult the dealer or an experienced radio/TV technician for help. Radio Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
