INSTALLATION, OPERATION &
MAINTENANCE DATA SHEET

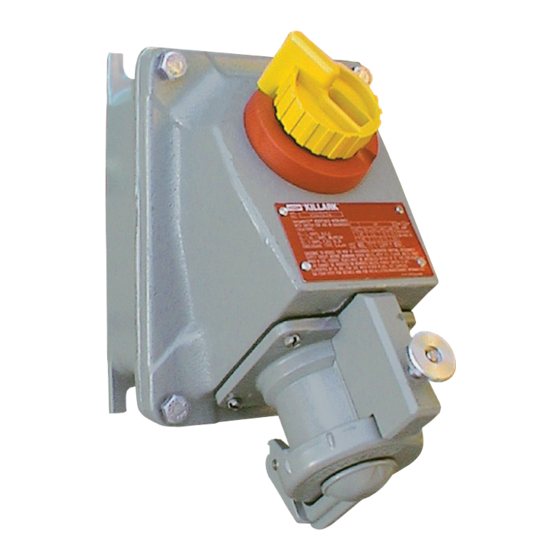

VWSQ SERIES 30 AMP INTERLOCKED
SWITCH RECEPTACLES
VWSQ SERIES INTERLOCKED SWITCHED
RECEPTACLES TO BE USED IN ENCLOSURE
TYPES 3, 4 & 4X
VWSQ SERIES 30 AMP INTERLOCKED
SWITCH RECEPTACLES
CAUTION:
Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury,
death and property damage. Do not attempt installation until you are familiar with the following procedures. All
installation must comply with the applicable Electrical Code.
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that the installation is grounded. Failure to ground will create electrical shock hazards, which can cause
serious injury and or death.
IMPORTANT:
Please read these instructions carefully before installing or maintaining this equipment. Safe electrical practices
should be followed at all times and this data should be used as a guide only.
Technical information, advice and recommendations contained in these documents is based upon information
that Killark believes to be reliable. All the information and advice contained in these documents is intended for
use only by persons having been trained and possessing the requisite skill and know-how and to be used by
such persons only at their own discretion and risk. The nature of these instructions is informative only and does
not cover all of the details, variations or combinations in which this equipment may be used, its storage, delivery,
installation, check out, safe operation and maintenance. Since conditions of use of the product are outside of the
care, custody and control of Killark, the purchaser should determine the suitability of the product for his intended
use, and assumes all risk and liability whatsoever in connection therewith.
3940 Dr. Martin Luther King Drive
St. Louis, MO 63113
P/N 00912336 FORM NO. K1225 R09/16 ECO-7-023-16
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Killark VWSQ Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hubbell Killark VWSQ Series

  • Page 1 INSTALLATION, OPERATION & MAINTENANCE DATA SHEET VWSQ SERIES 30 AMP INTERLOCKED SWITCH RECEPTACLES VWSQ SERIES INTERLOCKED SWITCHED RECEPTACLES TO BE USED IN ENCLOSURE TYPES 3, 4 & 4X VWSQ SERIES 30 AMP INTERLOCKED SWITCH RECEPTACLES CAUTION: Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury, death and property damage.
  • Page 2 This device cannot be used as a replacement for VSQ series or other hazardous location devices. VSQ & VWSQ covers are NOT interchangeable. 1. APPLICATIONS VWSQ series dead front interlocked receptacle • with switch • Designed for supplying power to fixed or portable electrical equipment.
  • Page 3 4. Loosen switch terminal screws and wrap stripped conductors securely around the terminal screws. Tighten the terminals to the values per table. 5. Connect the ground terminal securely and tighten to the values shown in table. Inspect & clean the machined flange joint surface of both the cover &...
  • Page 4 WARNING Electrical power supply MUST BE OFF before and during installation and maintenance. DISCONNECT primary power source and LOCK OUT. Installation and maintenance procedure must be performed by a trained and competent electrician. 4. MAINTENANCE Electrical and mechanical inspection of all components must be performed regularly.
  • Page 5 Replacement Parts: (Cover Only w/ Devices) VWSQ3023-COV VWSQ3034-COV INTERMATEABILITY FOR PLUGS Device Killark Plug Crouse Hinds Plug Appleton Plug VWSQ3023 VP3385: VP3023 APJ3385: NPJ3383: NPJ3384 ACP3023BC VWSQ3034 VP3485: VP3034 APJ3485: NPJ3483: NPJ3484 ACP3034BC 3940 Dr. Martin Luther King Drive St. Louis, MO 63113 P/N 00912336 FORM NO.
