Crestron UC-M70-U Quick Start

UC-M70-U
Crestron Flex Tabletop Large Room Video Conference System

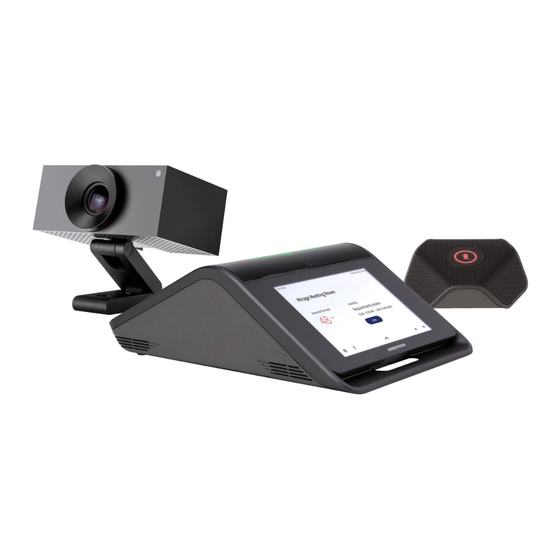

The UC-M70-U Crestron Flex tabletop conferencing system provides a
large room video conference solution for open-platform UC applications.
It supports a single video display and features a Crestron Flex tabletop
conference device and an AI collaboration camera.
In the Box
Tabletop Conference Device
1 Tabletop Conference Device (6508083)
1 Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)
1 Cable Retention Plate (2047908)
3 Tie Wrap (2047935)
Additional Items
1 AI collaboration camera (6512296)
1 Microphone pod (6508084)
1 Cable, thin HDMI®, 6 ft (1.8 m) (6510946)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)
1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft
(4.6 m) (6508260)
1 IR Emitter Probe (6500940)
1 Power supply (6500187)
Install the Cable Retention Plate
The included cable retention plate provides tie-down points for cables
that connect to the Crestron® conference device.
Remove the adhesive backing from the cable retention plate and install
it on the underside of the conference device as shown in the following
diagram. Ensure the cable retention plate is firmly attached before
securing cables.
CAUTION: When turning over the device, place the device on a soft
surface to avoid damage.
NOTE: If a swivel mount kit (CCS-UCA-SMK) is to be used, use the
cable retention bracket included with the swivel mount kit as described
in the CCS-UCA-SMK DO Guide
Quick Start
(Doc. 7882).
1
