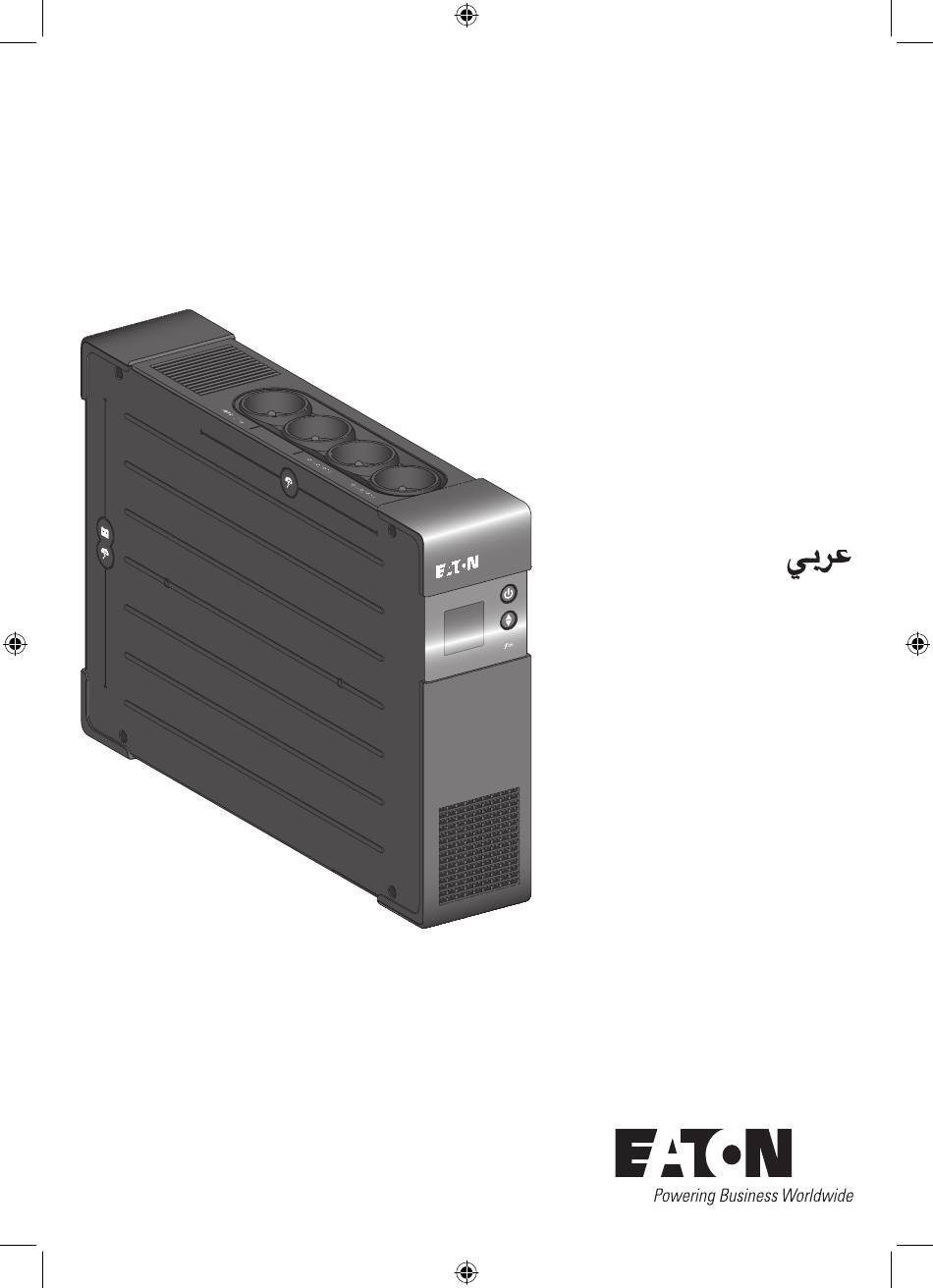

- Page 1 Ellipse PRO 650/850/1200/1600 Installation and user manual English - Français Deutsch - Italiano Español - Nederlands Eλληνiκά Português - Polski - Česky Slovensky - Slovenija Magyar - Türkçe РУCCКИЙ Svenska - Suomi Скачано с сайта интернет магазина https://axiomplus.com.ua/...
- Page 2 Packaging FR / DIN models IEC models Caution! EN • Before installing the Ellipse, read the booklet containing the safety instructions that must be followed. Then follow the instructions given in this manual FR • Avant l'installation de Ellipse, lire le livret qui présente les consignes de sécurité...
- Page 3 Quick start FR / DIN 1200 / 1600 650 / 850 O ut / Ne tw de m ne t Mo Int er Register warranty at: powerquality.eaton.com Скачано с сайта интернет магазина https://axiomplus.com.ua/...
- Page 4 • The battery must be replaced exclusively by qualified personnel (risk of shock), with new battery approved by Eaton to ensure correct operation of the UPS. • The battery must be disposed of in accordance with applicable regulations. To remove the battery, shut down the UPS (button OFF), remove the power cord and proceed as indicated below "Battery change".
-
Page 5: Technical Characteristics
Technical characteristics Ellipse PRO 1200 1600 • UPS power 650 VA / 850 VA / 1200 VA / 1600 VA / 400 W 510 W 750 W 1000 W • Nominalinputvoltage 165 V - 264 V, adjustable to 150 V - 284 V •... -
Page 6: Operating Conditions
1. Operating conditions • This product is an Uninterruptible Power Supply (UPS) for computers and their peripherals, television sets, stereo systems and video recorders... It must not be used to supply other electrical equipment (lighting, heating, household appliances, etc.). • UPS can be installed in horizontal, vertical position, or placed in Rack 2U (optional kit). 2. -
Page 7: Ups Connections
Optional USB connection: The UPS device can be connected to the computer using the USB cable 5 supplied (seefigureC). Eaton UPS Companion software is downloadable from powerquality.eaton.com. Register for the warranty on powerquality.eaton.com. 4. Master and EcoControl outlets operating procedure Inordertolimitenergyconsumptionofperipherals(scanner,printer)instandby mode,... -
Page 8: Ups Setting Through The Lcd
5. UPS setting through the LCD Release scroll down button to select menu Output voltage Input voltage EcoControl Alarm tolerance (165 - 264 V) (150 - 284 V) Example of setting Save the new value LCD shut off if no activity for 3 minutes. 6. -
Page 9: Troubleshooting
AC-power disturbance • If AC power is disturbed or fails, the UPS continues to operate on battery power. Button 6 flashesgreen.Innormalmode,theaudiblealarmbeepseverytenseconds, then every three seconds when the end of battery backup time is near. In silent mode, the audible alarm simply beeps once when the UPS transfers to battery power. •...
