- Page 1 EFTERSMAK 305.082.38...
- Page 2 ENGLISH For the IKEA appointed Authorized Service Centre, please refer to www.IKEA.com and select your local store for phone numbers and opening times.
- Page 3 ENGLISH...
-
Page 4: Table Of Contents
Before first use Energy efficiency Daily use Environmental concerns Clock functions IKEA GUARANTEE Using the accessories Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. - Page 5 ENGLISH WARNING: Keep children and pets away from the appliance • when it operates or when it cools down. Accessible parts become hot during use. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user maintenance •...
-
Page 6: Safety Instructions
ENGLISH Safety instructions Installation Ventilation opening 560x20 mm Warning! Only a qualified person minimum size. Open‐ must install this appliance. ing placed on the bot‐ tom rear side • Remove all the packaging. • Do not install or use a damaged Mounting screws 2x25 mm appliance. - Page 7 ENGLISH • The electrical installation must have an – be careful when you remove or install isolation device which lets you disconnect the accessories. the appliance from the mains at all poles. • Discoloration of the enamel or stainless The isolation device must have a contact steel has no effect on the performance of opening width of minimum 3 mm.
-
Page 8: Installation
ENGLISH • Concerning the lamp(s) inside this Disposal product and spare part lamps sold Warning! Risk of injury or separately: These lamps are intended to suffocation. withstand extreme physical conditions in household appliances, such as • Disconnect the appliance from the mains temperature, vibration, humidity, or are supply. -
Page 9: Product Description

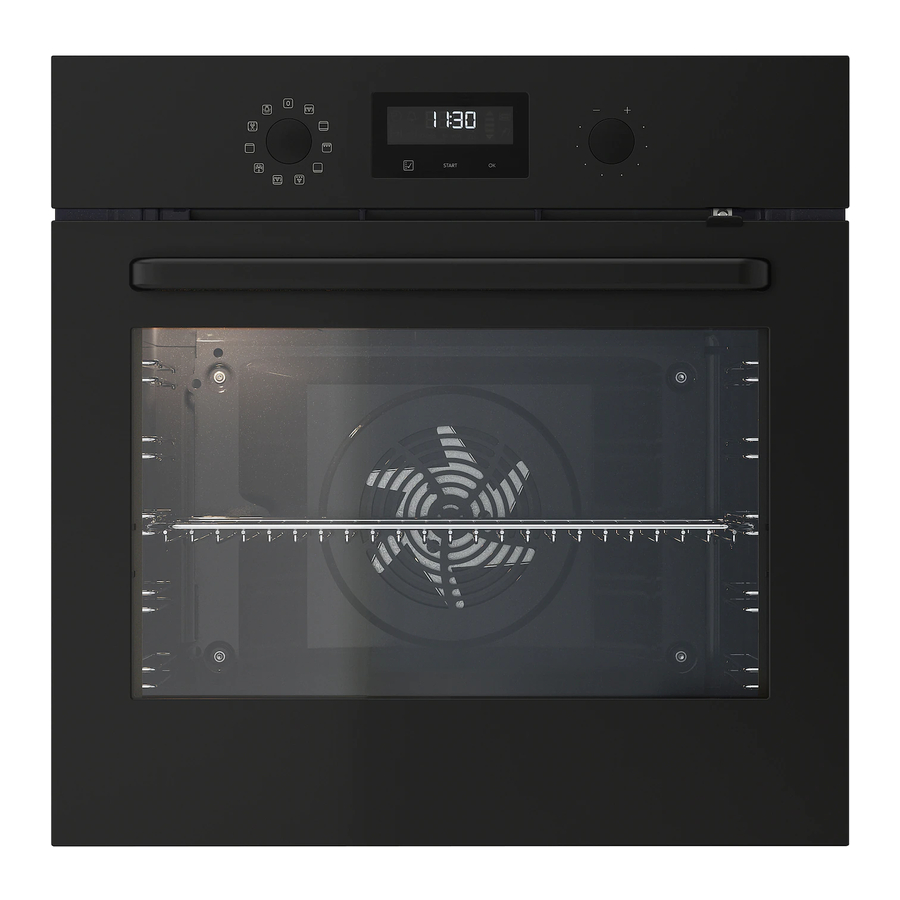

ENGLISH Product description General overview Control panel Knob for the heating functions Display Control knob Heating element Lamp Shelf support, removable Shelf positions Accessories For cakes and biscuits. • Grill- / Roasting pan x 1 • Wire shelf x 1 To bake and roast or as pan to collect fat. -
Page 10: Before First Use
ENGLISH Display A. Timer / Temperature B. Heat-up and residual heat indicator C. Core temperature sensor (selected models only) D. Door lock (selected models only) E. Hours / minutes F. Demo mode (selected models only) G. Clock functions Before first use Using the Mechanical child lock Warning! Refer to Safety chapters. -
Page 11: Daily Use
ENGLISH Warning! Be careful not to scratch the control panel. Daily use Warning! Refer to Safety Heating func‐ Application chapters. tion Retractable knobs To bake pizza. To make in‐ tensive browning and a To use the appliance press the knob. The crispy bottom. -
Page 12: Clock Functions
ENGLISH Heating func‐ Application Heating func‐ Application tion tion This function is designed to To turn on the lamp without save energy during cook‐ a cooking function. It can be ing. For the cooking instruc‐ used with residual heat in fi‐ Eco Fan Light tions refer to "Hints and... - Page 13 ENGLISH 3. Turn the control knob to set the minutes Clock function Application and press to confirm. Turn the control Use to set a countdown knob to set the hours and press time. This function has no MINUTE MIND‐ confirm. effect on the operation of When the set Duration time ends the signal the oven.
-
Page 14: Using The Accessories
ENGLISH Turn the control knob to set the minutes 1. Press again and again until starts for END time and press to confirm. to flash. 2. Turn the control knob to set the seconds The display shows and the set and than the minutes. -
Page 15: Additional Functions
ENGLISH Wire shelf and baking tray / deep pan together: Small indentation at the top increase safety. The indentations Push the baking tray / deep pan between the are also anti-tip devices. The high guide bars of the shelf support and the wire rim around the shelf prevents shelf on the guide bars above. -
Page 16: Hints And Tips
ENGLISH overheating. To prevent this, the oven has a power supply. The oven turns on again safety thermostat which interrupts the automatically when the temperature drops. Hints and tips Cooking meat and fish Warning! Refer to Safety Use a deep pan for very fatty food to prevent chapters. - Page 17 ENGLISH Food Accessories Temperature Shelf posi‐ Time (min) (°C) tion Swiss roll baking tray or dripping 25 - 35 Brownie baking tray or dripping 25 - 30 Soufflè, 6 pieces ceramic ramekins on wire 25 - 30 shelf Sponge flan flan base tin on wire shelf 15 - 25 base...
- Page 18 ENGLISH Food Accessories Temperature Shelf posi‐ Time (min) (°C) tion Vegetarian ome‐ pizza pan on wire shelf 25 - 30 lette Vegetables, baking tray or dripping 25 - 30 mediterrean 0.7 Eco Fan Cooking - recommended accessories Use the dark and non-reflective tins and containers.
- Page 19 ENGLISH Food Function Accesso‐ Shelf Temper‐ Time (min) Comments ries posi‐ ature tion (°C) Small Convention‐ Baking 20 - 30 Put 20 small cakes cake al (Top and tray per one baking Bottom tray. Heat) Small Forced Air Baking 150 - 20 - 35 Put 20 small cakes cake...
-
Page 20: Care And Cleaning
For additional cooking tables please refer to cavity. the Recipe Book which you can find on the website www.ikea.com. To find the proper Care and cleaning If you have nonstick accessories, do not Warning! Refer to Safety clean them using aggressive agents, sharp- chapters. - Page 21 ENGLISH Cleaning the door gasket The oven door may close if you try to remove the glass panels Regularly do a check of the door gasket. The before you remove the oven door. door gasket is around the frame of the oven cavity.
- Page 22 ENGLISH 6. Pull the door trim to the front to remove 7. Hold the door glass panels by their top edge and carefully pull them out one by one. Start from the top panel. Make sure the glass slides out of the supports completely.
-
Page 23: Troubleshooting
ENGLISH 5. Replace the oven light bulb with a 40 W, 6. Install the glass cover. 230 V (50 Hz), 350 °C heat resistant oven light bulb (connection type: G9). Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Remedy... -
Page 24: Technical Data
2400 W Total rating 2490 W Voltage 220 - 240 V Frequency 50 - 60 Hz Number of functions Energy efficiency Product Information and Product Information Sheet Supplier's name IKEA Model identification EFTERSMAK Energy Efficiency Index 81.2 Energy efficiency class... -
Page 25: Environmental Concerns
ENGLISH Energy consumption with a standard load, convention‐ 0.93 kWh/cycle al mode Energy consumption with a standard load, fan-forced 0.69 kWh/cycle mode Number of cavities Heat source Electricity Volume 72 l Type of oven Built-In Oven Mass 31.9 kg Energy saving Cooking with fan When possible, use the cooking functions The oven contains features which... -
Page 26: Ikea Guarantee
• Cases where no fault could be found Replaced parts become the property of IKEA. during a technician’s visit. What will IKEA do to correct the problem? • Repairs not carried out by our appointed service providers and/or an authorized... - Page 27 • make a service request under this recommend you read the appliance guarantee; documentation carefully before contacting • ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture; • ask for clarification on functions of IKEA appliances.
- Page 28 21552 © Inter IKEA Systems B.V. 2021 AA-2280239-1...
