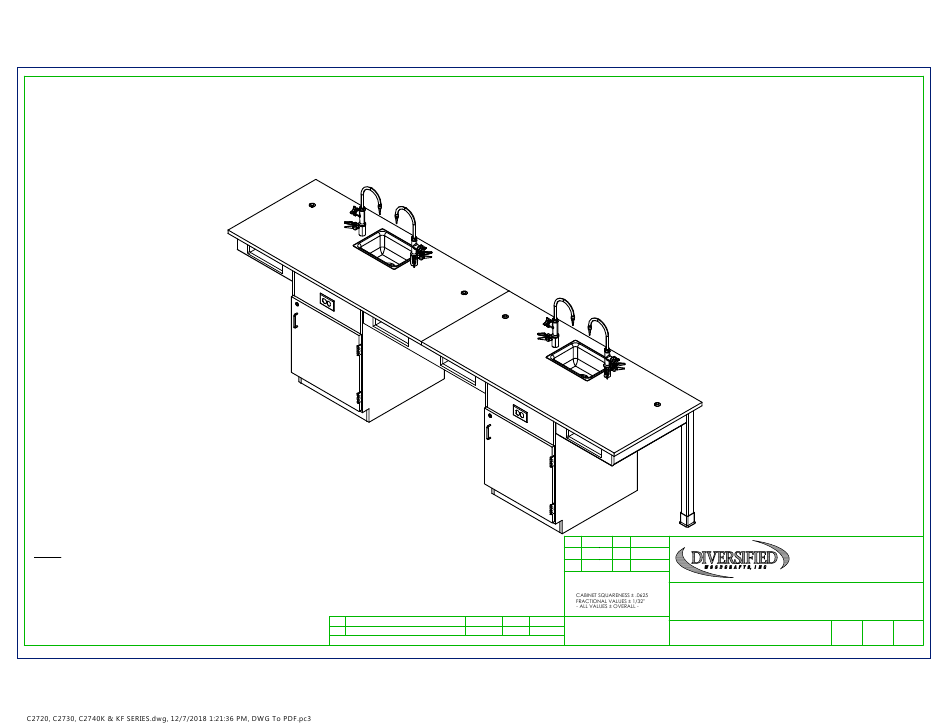

ASSEMBLY TEMPLATE

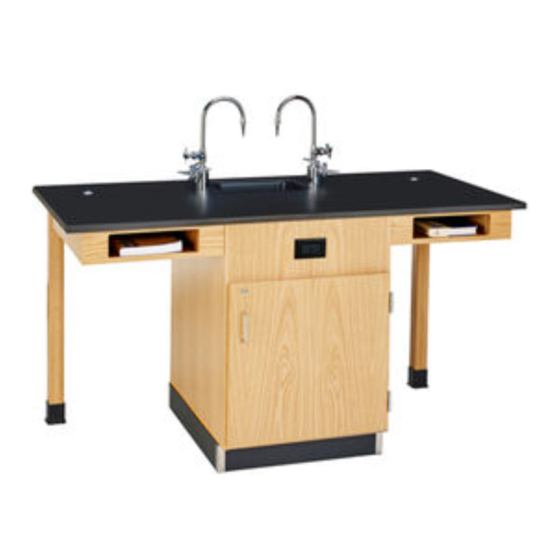

STUDENT SERVICE ISLAND-SINGLE
C2520K, C2520KF, C2530K , C2530KF, C2540K, C2540KF, C2720K, C2720KF, C2730K, C2730KF, C2740K, & C2740KF SERIES
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\DIVERSIFIED\ASSEMBLY INSTRUCTIONS\ACAD\C2520, C2530, C2540K & KF,
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
10/31/16
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DWN
DWN
10/31/16
EMK
BY:
DATE:
APR
DATE
BY:
APR:
APR
DATE
BY:
APR:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
TITLE:
STUDENT SERVICE ISLAND-SINGLE
ASSEMBLY INSTRUCTIONS
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DRAWING NUMBER:
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
ECN NO.
BE ALTERED OR CHANGED WITHOUT
STUDENT SERVICE ISLAND
PERMISSION
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 13
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS C2520K Series
Summary of Contents for DIVERSIFIED WOODCRAFTS C2520K Series
- Page 1 ASSEMBLY TEMPLATE STUDENT SERVICE ISLAND-SINGLE C2520K, C2520KF, C2530K , C2530KF, C2540K, C2540KF, C2720K, C2720KF, C2730K, C2730KF, C2740K, & C2740KF SERIES ASSEMBLY INSTRUCTIONS 10/31/16 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE:...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP (STYLE VARIES), 1.00 X 30 X 66 VARIES VARIES " SOCKET AND TORQUE WRENCH - OPTIONAL CABINET 24"W X 35"H X 28"D VARIES CONTACT CEMENT APRON ASSEMBLY (FACTORY APRON ASSEMBLY - EXTERNAL SCREW DRIVER... - Page 3 ASSEMBLY TEMPLATE STEP 1: PLACE CABINETS IN DESIRED LOCATION. IF YOU HAVE "K" SERIES CABINETS, PLACE THEM OVER UTILITY HOOK-UPS. LEVEL CABINETS. ATTACH TO FLOOR. LEFT CABINET **NOTE** CABINET MUST BE LEVELED OR DOORS AND DRAWERS MAY NOT OPEN OR CLOSE CORRECTLY 10/31/16 DATE: 300 South Krueger Street...
- Page 4 ASSEMBLY TEMPLATE STEP 2: WITH HELP FROM ANOTHER PERSON, POSITION INTERNAL APRON ASSEMBLY UP TO RIGHT SIDE OF LEFT CABINET SO IT IS CENTERED CORRECTLY AND FLUSH WITH TOP OF BASE CABINET. PLACE L-BRACKETS IN CORRECT POSITION ON APRON ASSEMBLY AND RIGHT SIDE OF LEFT CABINET (SHOULD BE FLUSH WITH TOP EDGE OF FRONT AND BACK APRONS).
- Page 5 ASSEMBLY TEMPLATE L-BRACKET - TYPICAL STEP 3: ATTACH L-BRACKETS TO RIGHT SIDE OF CABINET WITH HARDWARE PROVIDED. REPEAT FOR OTHER SIDE OF INTERNAL APRON ASSEMBLY. 10/31/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com NOTE: UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE:...
- Page 6 ASSEMBLY TEMPLATE STEP 4: WITH HELP FROM ANOTHER PERSON, PLACE INTERNAL APRON ASSEMBLY IN BETWEEN CABINETS AND ATTACH TO L-BRACKETS WITH REMAINING SCREWS PROVIDED. CONTINUE STEP IF YOU HAVE MULTIPLE INTERNAL APRON ASSEMBLIES (EX. C2530, C2730, C2540, OR C2740 SERIES). ATTACH INTERNAL APRON ASSEMBLY TO L-BRACKETS - TYPICAL INTERNAL APRON...
- Page 7 ASSEMBLY TEMPLATE STEP 5: REPEAT STEPS 2-4 FOR EXTERNAL APRON ASSEMBLIES (BOTH LEFT AND RIGHT). SUPPORT BOTH ASSEMBLIES UNTIL LEGS HAVE BEEN ATTACHED, THEY ARE NOT STRONG ENOUGH TO WITHSTAND WEIGHT UNTIL LEGS AND TOP ARE ATTACHED. HOLD APRON ASSEMBLIES UP UNTIL LEGS HAVE BEEN ATTACHED LEFT EXTERNAL...
- Page 8 ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 6: SLIDE LEG BOOT ONTO LEGS WITH FLARED END TOWARDS BOTTOM OF LEGS. SCREW LEG LEVELERS INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY 10/31/16 DATE: 300 South Krueger Street NOTE: DATE...
- Page 9 ASSEMBLY TEMPLATE INSERT HANGER BOLT THROUGH HERE WITH LOCK STEP 7: WASHER AND HEX NUT INSERT HANGER BOLT ON ONE LEG THROUGH THE CORNER BRACKET AND INSERT LOCK WASHER AND HEX NUT. TIGHTEN NUT USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS .
- Page 10 ASSEMBLY TEMPLATE STEP 8: ADJUST LEG LEVELERS TO LEVEL LEGS WITH CABINET. APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND APRONS. PLACE TOP ON UNIT WITH PROPER OVERHANG (2" OVERHANG ON SIDES AND 1.25" ON FRONT AND BACK). APPLY A BEAD OF ADHESIVE TO THE EDGES OF TOPS AND PRESS FIRMLY TO CONNECT TOPS TOGETHER. WIPE OFF ANY EXCESS CAULK.
- Page 11 ASSEMBLY TEMPLATE STEP 9: IF YOU DO NOT HAVE A "K" SERIES UNIT, SKIP TO STEP 10. APPLY SILICONE ADHESIVE TO SINK OPENINGS ON TOPS. LOWER SINKS INTO OPENINGS. WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET. LET CURE FOR 6-12 HOURS. APPLY SILICONE ADHESIVE AROUND OPENING FOR TOP - TYPICAL...
- Page 12 ASSEMBLY TEMPLATE MULTI-SERVICE FIXTURE - TYPICAL STEP 10: ATTACH RUBBER MOLDING TO BASE OF CABINETS USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. IF YOU HAVE A "K" SERIES UNIT, INSTALL MULTI-SERVICE FIXTURES IN HOLES ROD SOCKET - TYPICAL PROVIDED ON TOPS.
- Page 13 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
