SOGEDIS D Series Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

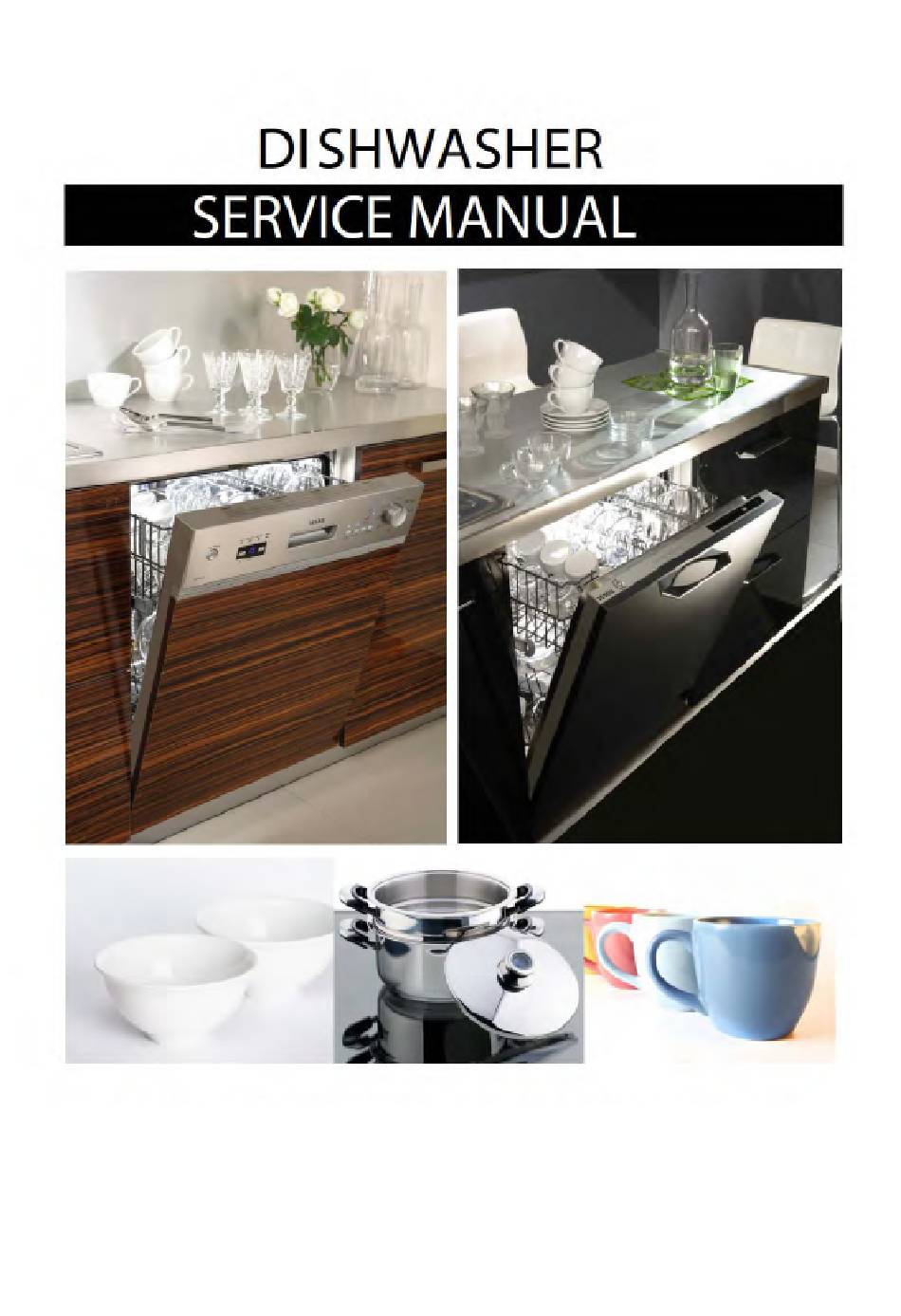

DISHWASHER
(D SERIES)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the D Series and is the answer not in the manual?

Questions and answers

Related Manuals for SOGEDIS D Series

Summary of Contents for SOGEDIS D Series

  • Page 1 DISHWASHER (D SERIES)
  • Page 2 2.ELECTRICAL COMPONENTS AND MEASUREMENTS 2.1 ON / OFF SWITCH It can’t be measured from the electronical card. DOOR SWITCH CN2.9 - CN2.2 0 Ω KN2.8 - KN2.10 0 Ω Door is close 2.2 DOOR LOCK It is a mechanical lock/release system that is closing the door, supplying the connection of electrical parts in the machine and cutting off the connection.
  • Page 3 Primary winding CIRCULATION PUMP CN2.3 - CN2.9 KN2.3 - KN 2.8 Secondary winding (from the component) Above sketch show the connectors of the washing pump on the electronical card. Probes of the tester should be applied on to the related connectors. From the component: A) Measurement of the primary windings of the washing pump.(118.2-135.9 Ω) B) Measurement of the secondary windings of the washing pump (white cable –...
  • Page 4 Position 1: You can check the floater by controlling the specified value intervals. Position 2: If failure code is occured related with the floater within control the above values: You can figure out whether leakage occurs or not. 2.5 CAPACITOR Capacitor is permanently connected to the circulation pump coils.
  • Page 5 2.6 DRAIN PUMP From the electronical Card: Above sketch show the connectors of the drain pump on the electronical card. Probes of the tester should be applied on to the related connectors. From the component: Probes of the tester should be applied on the related connectors as shown on the pictures. 2.7 HEATER It can’...
  • Page 6 2.8 NTC 2.9 PRESSURE SWITCH From the electronical card: CN2.10 - CN2.2 0 Ω KN2.9 - KN2.10 0 Ω Full fıll water PRESSURE SWITCH ∞Ω ∞Ω No water From the component:...
  • Page 7 2.10 DIVERTER From the electronical Card: Sketch above show the connectors of the diverter on the electronical card. Probes of the tester should be applied on to the related connectors. From the component: Probes of the tester should be applied on to the related connectors as shown on the pictures. 2.11 WATER INLET VALVE Single inlet and single outlet standard single coil selenoid valve.
  • Page 8 Above sketch show the connectors of the water inlet valve on the electronical card. Probes of the tester should be applies on to the related connectors. From the component: Probes of the tester should be applied on to the related connectors as shown on the pictures. 2.12 REGENERATION VALVE From the electronical card: REGENERATION VALVE...
  • Page 9 Above sketch show the connectors of rhe regenaration valve on the electronical card. Probes of the tester should be applied on to the related connectors. From the component: 2.13 PARASITE FILTER 2.14 TURBO FAN MOTOR From the electronical card: FAN MOTOR CN 6.2 - CN 2.9 KN 6.2 - KN 2.8...
  • Page 10 Above sketch shows the connectors of the fan motor on the electronical card. From the comonent: Turbo fan resistance value: 265 ± %10 Ω (The resistance of the torbo fan is measured with the resistor switch). 2.15 RINSE AID SENSOR From the electronical card: 0Ω...
  • Page 11 Below sketch shows the connectors of the rinse aid sensor on the electronical card. From the component: Probes of the tester should be applied on to the relatde connectors as shown on the pictures. 2.16 SALT SENSOR Salt sensor can also be measured from the water softener when the salt sensor assemblied on the water softener. From the electronical card: CN5.1 - CN5.2 0 Ω...
  • Page 12 From the component: 2.17 POWER CORD 2.18 DETERGENT / RINSE AID DISPANSER It can’t be measured from the electronical card: DETERGENT DISPENSER 2300 Ω ±%10 (25 C°) 2300 Ω ±%10 (25 C°)
  • Page 13 3.INTERFACE AND HARDWARE 3.1 D1 UI (D13_2): Apart from the on-off switch that is a separate component, the UI includes: “Selection program” button; 4 program LEDs; “Salt” LED; “Rinse” LED; “End” LED. D1 UI 3.2 D2 UI (D21_1) : Apart from the on-off switch that is a separate component, the UI includes: “Selection program”...
  • Page 14 3.3 D22_1: Same as D21_1. Also hyigene program is added. “Selection program” button; “Salt” LED; “Rinse” LED; “End” LED; Note: Auto program works if turbidty is present (instead of ıntensive program.) Program sequences: p1-hygiene 70 C p2-ınt 70C p3-super50 p4-eco p5-quick 30 p6-prewash 3.4 D4 UI (D41_2,D42_2):...
  • Page 15 3.5 D50 UI (D12_7) Apart ON/OFF switch that is a separate component interface includes: 3.6 D50 (D13_7) 3.7 D51 UI (D22_7) Apart from the on-off switch that is a separate component, the UI includes: “Selection program” button; 1 digit (programs); “Salt”...
  • Page 16 3.8 D5X Full 3.9 D45 with water recovery tank Apart from the on-off switch, there is a separate component, the UI includes: “Selection program” button; 2.5 digit (programs & delay); “Salt” LED; “Rinse” LED; “End” LED; “Start delay selection” button, 3-LEDs bar (the start delay function may be absolute, i.e. with “counting during Power Fail”...
  • Page 17 4. WASHING PROGRAMS ( 60&45 CM) 4.1 Washing program Cross Table Model QUIC DELCAT ECO 50 DALY DUAL SUPER SUPER HYGIEN INTNSI EXTRA A.DEL A.NO A.INT Bardak 14’ K 30’ E 40 C 5.4lt 50’ 55’60 C E 60 C HYGIEN +21/30 WASH...
  • Page 18 5. WASHING SPECIFICATIONS AND PROGRAMS 5.1 Starting of the program: -After the first power on, until pressing any button display shows two dashed lines (“--“, justified to the right) , than if pressing any button the (default program ECO) is shown at every turn. ( Ex: 3secs P3, 1sec 188). - When the dishwasher is powered off and on again the last executed program and options are not visualized on screen anymore.
  • Page 19 5.4 Memorization during cycles During washing program steps and options are stored in memory and a flag “cycle in progress” is set. At the end of the program, the flag “cycle in progress” is reset,and a new cycle can start. 5.5 Power Fail: During washing programs, phase and options are stored in memory and a flag “cycle in progress”...
  • Page 20 - At the end of the reset, the End led will be ON and the buzzer will be activated (1sec sound, 4sec wait until total time 21sec is completed [total 5 bip sound] until 15 min passed) If the door is not opened by the user, the activation of the buzzer will continue at ever each 5min passed (with 5 time bip in 21sec as indicated above until 15 min passed).
  • Page 21 5.13.3 Selection of 3in1 (tablet) option: Detergent type selection. If the option is chosen LED is fixed on. - While the door is open, press Tablet button and select program. - During the wash if the user open the door, Tablet option is still selectable. - The program will start in 3sec after door is closed.
  • Page 22 the first time: the upper spray LED is on, and lower spray LED is off: wash is executed only with upper spray arm; the second time: the upper spray LED is off, and lower spray LED is on: wash is executed only with lower spray arm; the third time: the upper spray LED is on and lower spray LED arm is on: wash is executed with both spray arms;...
  • Page 23 5.13.8 Delay Start option (D21_2; D22_7;): The delay start option is selected by pressing the regarding option button before the program starts. It is possible to select the delay option before select the program. Before starting the program, the delay is selected by consecutive pressures of the button; the selection loop of sequences is: no selection, 3h, 6h, 9h, no selection, 3h, etc.
  • Page 24 5.14 TİMEPHASE Timephase is a minimum duration that lasts as one wash phase. According to water inlet temperature, wash phase can be increased but must last at least dedicated timephase duration. Rule: a) If water inlet temperature of main wash in eco program, < 30̊...
  • Page 25 REGENERATION CYCLE FOR 60 CM: When it occurs the regeneration valve works after last rinse and during the drying steps. There are 6 hardness levels. Water Hardness level Litres Level 1 Never Level 2 116 lt Level 3 64 lt Level 4 52 lt Level 5...
  • Page 26 Level 1: Led1 (P1-Int 65 C) Level 2: Led2 (P2- Super 50’) Level 3: Led3 (P3-Eco 50 C) Level 4: Led4 (P4-Prewash) Level 5: Led1-Led4 (P1-P4) (Int 65 C –Prewash) Level 6: Led2-Led4 (P2-P4) (Super 50’-Prewash)  By switching off the machine, the new level is setted. D14_5 Water Hardness Level Level 1 Led1 (P1) is ON...
  • Page 27 6.4 Water hardness set (D22_7): - While the door is open and the machine is switched OFF. - By pressing the Program Button, Switch ON the Machine. - Continue to press the Program Button for 3”. - If "Hardness Set" is reconized, "S" and "L" will be shown sequentially in the display for 2sec. And the last setted level will be shown in the display.
  • Page 28 D21 model: Level 1: Led1-Led5(Int 70C-Prewash) Level 2: Led2-Led5(Super 50’-Prewash) Level 3: Led3-Led5(Eco 50 C-Prewash) Level 4: Led4-Led5(Quick 30-Prewash) Level 5: Led1-Led4- Led5(Int 70C-Quick 30’- Prewash) D12_7 model: Level 1: Led26 (int65°C) Level 2: Led2 (Eco 50 C) Level 3: Led3 (Prewash) Level 4: Led26-Led3 (int65°C- Prewash) Level 5: Led2-Led3 ( Prewash- Eco 50 C) For models with display;...
  • Page 29 8. IONIZER Ionizer function can be activated/deactivated with specified button combinations. Also, when machine is turned off and then on, ionizer function is cancelled. Ionizer cycle is as follow: 5’ ON, 55’ OFF, 5’ ON,55’ OFF,.. After 24 hours is completed, ionizer function is deactivated automatically by software. During 5’...
  • Page 30 When machine is ON, press Program button for 6”. Between 3 and 6 seconds, drain is executed. After 6 second, only ionizer function will be on. Display shows “Ion” when ionizer is recognized. 9. INNER LIGHT FUNCTION: Inner light is available only D41_2, D42_2, D45, D41_5, D21_2 (60 cm) and D41_7-D42_7 (45 cm) models. D41_2 and D42_2,D45 (60 cm): The door must be at OPEN position during activation and deactivation of inner light modes.
  • Page 31 The door must be at OPEN position during activation and deactivation of inner light modes. How to change from “ECO MODE” to “NORMAL MODE” for Inner Light option in 60cm D41_5 model : * First open the dishwasher door and energize the machine via main switch (if it is in OFF position). *Program and 1/2Load button should be pressed for 3”...
  • Page 32 Note: Factory setting for inner light are set to ‘’ECO MODE’. NOTES: For FI productions, the inner light setting should be allowed only if the door is open condition and before starting program. During program, it can not be allowed to set inner light. D22_3(60cm) The door must be at OPEN position during activation and deactivation of inner light modes.
  • Page 33 *Press ‘’ 3in1’’ and ‘’1/2’’buttons simultaneously for 3 seconds. *“IL1” will be shown in the digit display for 2 seconds to show that the “Eco Mode” is selected for inner light option. Also inner light turns OFF and ON again (blinks momentarily) to show that this selection is activated.
  • Page 34 For D41_7, D42_7,D32_7 -First energize the machine via main switch (if it is in OFF position).  Press both “Delay” and “Tablet” buttons for 3” at the same time. If voice controlling is done for the first time, at the end of 3 seconds, “S3” is shown on the •...
  • Page 35 Step Time Tested Load Show code 6” Before start, the code of last error is visualized (see below) Drain 6” Drain pump. Fill (3l/2,5l)* ~ 1’ Flow meter; Inlet Valve; Turb. Calibration Turbidity Calibration (only D4)  Fill + Wash Flow meter;...
  • Page 36  Last recorded error is not shown at athe end of a error-free service test. If there is no error in D1,D2,D12_7 models, service test starts without showing last error.  -The last error code memorized before is never shown again if service test is completed successfully and ‘’--’’ is •...
  • Page 37 - or after showing the last error code for 6sec like in the freestanding models- “SP” will be shown untill the end of test program). - Close the door then service program will start automatically. Note: To skip the service test, Open door and switch off and on machine or open door and press Program Button for 3secs to perform reset.
  • Page 38 D4 UI and D52 UI N° Name SERVICE All leds Display Overflow Blink Leakage Blink Drain time out Blink Re-Fill time out Blink Presence Flow meter imp. Blink Absence of flowmeter impulses with full Blink Absence of flowmeter impulses with empty Blink NTC ca/cc Blink...
  • Page 39 D51 UI Means that: -During washing cycle, If the service man wants to enter into ;Service test, End test or Hardness set, machine stops the program that is running and, If entered into; Hardness set; cut off the washing cycle and directly goes into hardness set. ...
  • Page 40 13.2 Description of the failures 13.2.1 Opened DS Recognize: if door is opened with a started program. Action: Wait. Exit: Closing door. Service: 13.2.2 Delay in re-start program Recognize: if door is opened and re-closed in a heating step. Action: re- start program without any delay if temp.
  • Page 41 13.2.5 Presence of FLM impulses and INVAL switched OFF Display Vers. D1: Blink Blink Vers. D2: Blink Blink Blink Vers. D4: All leds blink When the triac valve is OFF and flowmeter gives some impulses (more than 500cl) � enter in the failure routine and drain all water (WIV 12secOFF/12sec ON) �...
  • Page 42 1) If there is no Flowmeter connection problem but PSW persist not to activate; In Fill step , required water will be taken into basin ( For ex: it takes 3,3lt.) In Fill+Wash step, if PSW does not activate , WIV and CP works together for 30 sec, but PSW still persist not to activate ;...
  • Page 43 Action: Go to Failure routine Exit: OFF/ON. Service: Not necessary if the reason is a momentary. YES in the other cases. 13.2.10 Level Empty and regular/rarely Flow meter impulses. Recognize: With flow meter impulses (time out of absence of flow meter impulses doesn’t expire) it reaches the second quantity of required water related to the washing cycle) but it doesn’t reach the full level within the time out (30”).
  • Page 44 13.2.12 NTC open or short-circuit Recognition of open or short-circuit NTC. Test is executed during all the program flow. Recognize: Stop program flow. Go to Failure routine. Action: OFF/ON. Exit: Display Vers. D1: Blink Blink Vers. D2: Blink Blink Blink Vers.
  • Page 45 -Having diverter models, if machine is powered off/on, diverter starts from lower position(lower spray arm works). -If user open/close the door, diverter direction does not change. -While diverter is energized, If user make Power Off/On, diverter must start with lower condition. 13.2.16 Parameters Check Sum Recognize: When parameter Check sum is uncorrected...
  • Page 46 -During washing, If PSW goes empty level(re-fill situation) Turn off the machine. Disconnect the pressure switch connector and connect external micro switch to provide manual control. Start a program. Machine directly discharges the water and starts that step by taking water. Related failure code is shown after this procedure is repeated 3 times.
  • Page 47 14. Failure codes 14.1 D13_2 Note: D14_5 has the same failure codes as D13_2. L2(Super Name L1(Intensive) L3(Eco) L4(Prewash) 50') Overflow Blink Blink Blink Leakage Blink Blink Drain time out Blink Blink Re-Fill time out Blink Blink Presence Flow meter Blink Blink impulses...
  • Page 48 14.3 D41_2,D42_2: N° Name NORMAL SERVICE All leds Display All leds Display Overflow Blink Leakage Blink Blink Drain time out Blink Blink Re-Fill time out Blink Blink Presence Flow meter imp. Blink Blink Absence of flowmeter impulses with full Blink Absence of flowmeter impulses with empty Blink Blink...
  • Page 49 14.5 D41_5 Name Overflow Leakage Blink Blink Blink Drain time out Blink Blink Blink Re-Fill time out Blink Blink Blink Presence Flow meter Blink Blink Blink impulses Absence of flowmeter impulses with full Absence of flowmeter Blink Blink Blink impulses with empty NTC cc/ca Blink Blink...
  • Page 50 14.7 D12_7 : Name P1(Intensive) P2(Eco) P3(Prewash) Overflow Blink Blink Blink Leakage Blink Blink Drain time out Blink Blink Presence Flow meter impulses Blink Blink Absence Flow meter imp. Blink Blink Blink Empty Level Blink Blink Re-Fill time out Blink Blink NTC ca/cc Blink...
  • Page 51 14.9 D41_7-D42_7 : N° Name NORMAL SERVICE All leds Display All leds Display Overflow Blink Leakage Blink Blink Drain time out Blink Blink Re-Fill time out Blink Blink Presence Flow meter imp. Blink Blink Absence of flowmeter Blink impulses with full Absence of flowmeter Blink Blink...
  • Page 52 If it occurs diverter or turbidity failure in END test 1 program, please implement below modifications as it is in current D models. Diverter failure: Stop circulation pump just after detergent dispenser activation at step 41 until the end of program if electronic card can not detect diverter position during end test 1. - Turbidity failure: Start circulation pump just after turbidity sensor check (at step 92) for 6 sec, if electronic card realize Turbidity sensor failure during turbidity test.
  • Page 53 60 cm: All leds ON 1 st combination: Int 65 C led 2 nd combination: Prewash led. ALL leds ON 1 st combination: Int 70 C led. 2 nd combination: Prewash led+Quick 30’ led. D41-D42: D41: D42: All leds ON All leds ON 1 st combination Tablet led 1 st combination Tablet...
  • Page 54 MEASUREMENT THE WATER HARDNESS TEST STRIP; The washing effectiveness of your machine depends on the sofness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is corrrectly set. To make the system setting, use the testing strip, if it is available, and find the hardness of the mains water supply.
  • Page 55 DRAIN PUMP • Check the drain pump resistance and power values • There can be a problem with cable connection of the drain PRESSURE SWITCH • Pressure swıtch of the heater casing group can have a mechanical or cable connection problem. F3 (ERROR OF CONTINUOUS WATER INPUT) WATER INLET VALVE •...
  • Page 56 • Water inlet valve can be out of order. There can be a problem with the cable connection of water inlet valve. FLOATER • Floater switch can bo out of order or have a problem with the cable connection. PRESSURE SWITCH •...
  • Page 57 • Check the electronic card F9 (DIVERTER POSITION PROBLEM) DIVERTER • Check the values of the diverter. • Check the cable connection of the diverter. ELECTRONIC CARD • Check the electronic card FA (TURBIDITY SENSOR FAULTY) TURBIDITY SENSOR • There can be some soil around the turbidity sensor. •...
  • Page 58 18. REPAIR TECHNIQUES COMPONENTS AND RESISTANCE VALUES COMPONENTS NOTES ON / OFF SWITCH 0 Ω on component 0 Ω on component ON/OFF button is presserd DOOR SWITCH CN2.9 - CN2.2 0 Ω KN2.8 - KN2.10 0 Ω Door is close CN2.10 - CN2.2 0 Ω...
