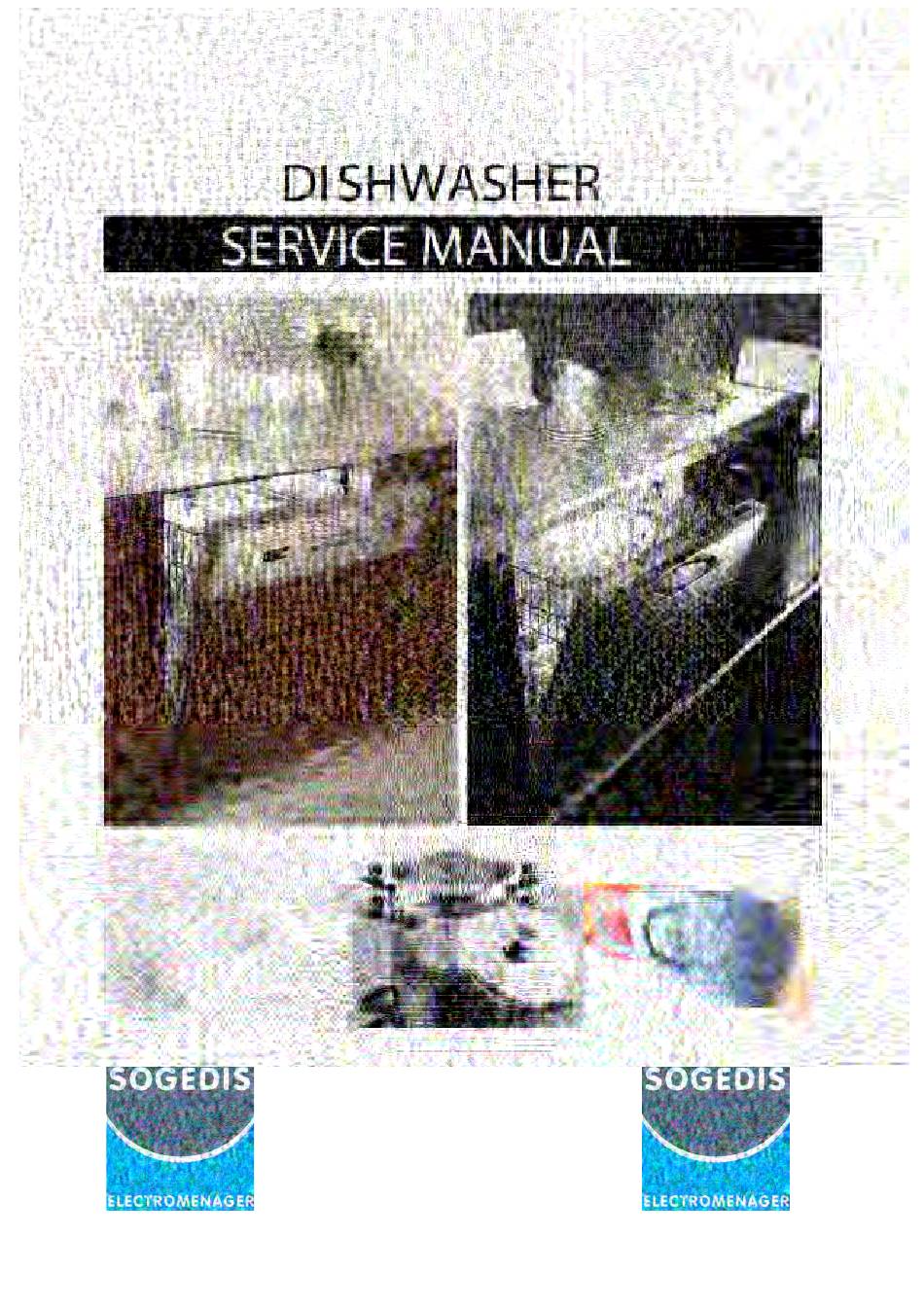

Page 1 FREESTANDING (SERIES T21)
Page 2: Table Of Contents
Information sheet....................2 Barcode sticker code explanation.................3 Electrical components...................4 Interface and hardware..................10 Dısplay card model....................10 Washing program....................11 Rinse aid absence and salt absence visualization......................12 Option selection.....................13 Inner light option....................15 Washing program duration..................16 Software requirements...................16 Feature of time phase ....................17 Renegeration cycle ....................17 Water hardness set....................18 Rinse aid set......................18 Service test......................19...
Page 3: Information Sheet
INFORMATION SHEET BARCODE STICKER CODE EXPLANATION / DISHWASHER: SERIAL NO 0001 668316 00205458 Work order PRODUCT 01- w/o cartoon; w strip Increases by number 02- w/o cartoon; w/o strip CODE numeratically 03- w cartoon ; w strip 04- w cartoon ; 4- lane 05- w/o cartoon ;...
Page 4 TOOLS FOR DISASSEMBLE Phillips screwdriver *All kinds of star-head screws, *in the phillips screws of the internal components, Plier *It is used to bend all kinds of sheet metal ends. Multimeter *Resistance values of all kinds of internal components, *Electronic card resistors, *It is used to measure the resistance of display cards.
Page 5 Flat Screwdriver It is used to remove all kinds of aesthetic parts (side panels, front panels and external aesthetic parts of the machine). Side Cutter It is used to cut cables of internal components or any hard part. Chargeable Drill It is the most important tool used to remove and install all kinds of screws in the machine.
Page 6: Electrical Components
ELECTRICAL COMPONENTS BUTTON ( ON / OFF SWITCH ) Button is assambled in the control panel unit. ON /OFF (two pole) Voltage 250 V Currency 16 (4 ) DOOR LOCK It is a mechanical lock/release system that is closing the door, supplying the connection of electrical parts in the machine and cutting off the connection.
Page 7 CAPACITOR Capacitor is permanently connected to the circulation pump coils. DRAIN PUMP HEATER Voltage 220/240 volt Total power 1800W 27.6-30.6 ohm...
Page 8 PRESSURE SWITCH Voltage 220/240 v Frequency 50/60 Hz 16 A - 3 Pins DIVERTER There is diverter at freestanding models It is assembled to the Heater Casing Group. WATER INLET VALVE Single inlet and single outlet standard single coil selenoid valve. It is assembled to the basement and connect to the airbreak by hose.
Page 9 REGENERATION VALVE Regeneration valve is assembled on the water softener. PARASITE FILTER It is used to prevent parasites from the main supply It has been assemblied to basement. TURBO FAN MOTOR There is a thermal protector shaded pole motor, two pole temperature is between -40-150 °C Turbo fan resistance value: 265 ±...
Page 10 SALT SENSOR Voltage 250 V Currency 50 mA It is assembled to the water softener. It warns if the salt is less than requested quantity. POWER CORD DRAIN HOSE...
Page 11 UPPER SPRAY ARM It distributes water from upper spray arm to dirty dishes in the upper basket. It provides to wash the dishes in the upper basket through turning by the holes with various angles. LOWER SPRAY ARM It distributes water from lower spray arm to dirty dishes in the lower basket. It provides to wash the dishes in the lower basket through turning by the holes with various angles.
Page 12: Interface And Hardware
INTERFACE AND HARDWARE Interface T21_11 Apart ON/OFF switch that it is a separate component interface includes: Program button; • Led “Rinse Aid”; • Led “Salt”; • “Start/Pause” button with integrated led; • Leds according to program number; • Program status with 4 leds; Led “Wash”; Led “Rinse”; Led “Dry”; Led “End”; •...
Page 13: Washing Program
WASHING PROGRAM WASHING PROGRAM CROSS TABLE Auto Model Mini 14’ Quick Delicate Economic Super Intensive Daily Auto Auto 30’ 50’ Delicate Normal Intensive 30°/50°C 50°/60°C 60°/70°C T11_11 T12_11 T13_11 T14_11 T21_11 T21_2 prewash T21_4 X = present - = not present Program start positions T21 T21_11 Model Selecting, Starting, Running, and Termination of a Program...
Page 14: Rinse Aid Absence And Salt Absence Visualization
Opening and closing door during program during a dry step: During dry if the door is opened and re-closed, the program ends. In model T12_11&T13_11&T14_11&T21_11; during dry if the door is opened and re-closed, the program continues. In model T12_11&T13_11&T14_11&T21_11; Flow ind.
Page 15: Option Selection
Note: When incompatible options are selected, led of last selected option turns on, the other one turns off. Ex: User selected extra dry option(its led is on). Then, he selected extra hygiene. Extra dry option led turns off, extra hygiene led turns on. Compatibility between Options&Programs(T21) Half Load Hygiene...
Page 16 Delay Start option (T12_11,T13_11,T14_11,T21_11 model) Delay start option is selected before program start by pressing “+” and “-” button in the display card. To change this option during a delay time it necessary to press s/p button and put the machine in “pause”...
Page 17: Inner Light Option
When the door is closed and the function is selected, ionizer function will start. There is no need to press Start/Pause button. Start/Pause button led is off while ionizer is working. Ionizer does not work together with any program or not executed in any program. The function will follow below loop and if there is no intervention, it continues until 24 hours is completed.
Page 18: Washing Program Duration
Also inner light turns OFF and ON again (blinks momentarily) to show this • selection is activated. • After “Eco Mode” is selected, the inner light will be ON for 4min after machine door is opened and then turns OFF. If any user intervention occurs such as pressing buttons, Eco Mode cycle starts from beginning (inner light is ON for 4min and then becomes OFF again) Note: Factory setting for inner light is set to ‘’IL1’’.
Page 19: Feature Of Time Phase
Water drain Action: Water drain starts with drain pump ON for 33”. After 30”, circulation pump ON.When empty level is recognised (by pressure switch signal), the circulation pump stops and the machine continues for the request steps. Precaution: if pressure switch level doesn’t switch in Empty level (during circulation pump on), failure of Water drain works (see failure chapter).
Page 20: Water Hardness Set
If Water hardnes level is 5 or 6 • First regeneration step is performed 0,2lt water If Water hardnes level is 2 or 3 or 4 • First regeneration step is performed 0,1lt water If Water hardnes level is 1 •...
Page 21: Service Test
Without display models At any pressure of program selection button rinse aid level is incremented. With display modelsAt any pressure of + button rinse aid level is incremented. At any pressure of – button rinse aid level is decremented. Rinse aid level 1 returns after level 5. * If it is the first rinse aid set, Default rinse aid level is 4 which corresponds to 4,5 cc.
Page 22: Service Failure Codes
Step Time Tested Load Show code 6” Before start, the code of last error is visualized (see below) Drain 6” Drain pump. Fill (3l/2,5l)* Flow meter; Inlet Valve; Fill + Wash ~ 1’ Flow meter; Inlet Valve; Pressure Switch; (0,5/1lt)** Turb.
Page 23: End Test Program
Vers. T2_1 : ALL leds blink Display Service: NO LOW VOLTAGE FAILURE Recognize: When low voltage (blow 145V, then 145-155VAC) detected during 3 hours Action: Go to Failure routine. Exit: OFF/ON. Vers. T21_1 : ALL leds blink Display Service: NO Coding failure for T12, T13, T14, T21: N°...
Page 24 - At the end of end test 1, switch OFF the dishwasher. -To skip the End test1, press S/P button for 3 sec. Diverter failure: Stop circulation pump just after detergent dispenser activation at step 41 until the end of program if electronic card can not detect diverter position during end test 1.
Page 25: Measurement The Water Hardness
MEASUREMENT THE WATER HARDNESS TEST STRIP; The washing effectiveness of your machine depends on the sofness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is corrrectly set. To make the system setting, use the testing strip, if it is available, and find the hardness of the mains water supply.
Page 26: Failure Codes (Possible Problems)
FAILURE CODES (Possible Problems) F1 (ALARM IS ACTIVE FOR OVERFLOW) FLOATER Floater switch can be out order or have a problem with the cable connection. • There can be a water leakage from the tub • ELECTRONIC CARD Electronic card can be out of order. •...
Page 27 F5 (INADEQUATE WATER SUPPLY) Water tap Make sure the water input tap is totally open and that there is no water cut.  Water inlet hose Close the water input tap, seperate the water input hose from the tap and clean the ...
Page 28 F7 (EXTREME HEATING UP FAULTY) If the water temperature inside machine higher than 77°C, ntc can be out of order.  Electronic card Electronic card can be out of order.  F8 (INADEQUATE HEAT) Heater Check the power and resistance values. ...
Page 29: Poor Drying
POOR DRYING a) The programme which hasn’t got a drying phase; could be selected the customers should be informed about the programmes. b) there might be lack of rinse aid compartment. X series have rinse aid indicator on the control panel. There isn’t any rinse aid there is rinse aid c) There can be mechanical or electrical problem with the detergant dispenser.
Page 30: Necessary Information Have To Be Given To Users While Installing The Dishwasher
NECESSARY INFORMATION HAVE TO BE GIVEN TO USERS WHILE INSTALLING THE DISHWASHER Customer should be informed about follawing items. Give general information to user about the product. • General information about washing programmes and suggest to the customer using • suitable program according to the dirtiness level.
Page 31: Repair Techniques Components And Resistance Values
REPAIR TECHNIQUES COMPONENTS AND RESISTANCE VALUES COMPONENTS NOTES ON / OFF SWITCH 0 Ω on component 0 Ω on component ON/OFF button is presserd DOOR SWITCH CN2.9 - CN2.2 0 Ω KN2.8 - KN2.10 0 Ω Door is close CN2.10 - CN2.2 0 Ω...
Page 32: Component Values Measurement
COMPONENT VALUES MEASUREMENT Precaution: Always remove the plug from the power socket before touching internal components. WASHİNG PUMP: From the electronical card: You can only measure the primary winding value from the electronical card. Resistance value of the primary winding must be Primary winding Secondary winding (from the CN2.3 - CN2.9...
Page 33 DRAIN PUMP From the electronical Card: Above sketch show the connectors of the drain pump on the electronical card. Probes of the tester should be applied on to the related connectors. From the component: Probes of rhe tester should be applied on the related connectors as shown on the pictures.
Page 34 WATER INLET VALVE From the electronical Card: WATER INLET VALVE CN2.6 - CN2.9 4200 Ω ± %10 (20°C) KN2.6 - KN2.8 4200 Ω ± %10 (20°C) Above sketch show the connectors of the water inlet valve on the electronical card. Probes of the tester should be applies on to the related connectors.
Page 35 HEATER It can’ be measured from the electronıcal card. From the component: DETERGENT DISPENSER It can’t be measured from the electronical card: DETERGENT DISPENSER 2300 Ω ±%10 (25 C°) 2300 Ω ±%10 (25 C°) From the component:...
Page 36 REGENARATION VALVE From the electronical Card: REGENERATION VALVE CN2.2 - CN2.7 3560 Ω ± %10(25°C) KN2.2 - KN2.10 3560 Ω ± %10(25°C) Above sketch show the connectors of rhe regenaration valve on the electronical card. Probes of the tester should be applied on to the related connectors. From the component:...
Page 37 PRESSURE SWITCH From the electronical card: CN2.10 - CN2.2 0 Ω KN2.9 - KN2.10 0 Ω Full fıll water PRESSURE SWITCH no water ∞Ω ∞Ω From the component: Probes of the tester should be applied on to the related connectors as shown in the picture above.
Page 38 DIVERTER From the electronical Card: Sketch above show the connectors of the diverter on the electronical card. Probes of the tester should be applied on to the related connectors. From the component: Probes of the tester should be applied on to the related connectors as shown on the pictures.
Page 39 SALT SENSOR From the electronical card: CN5.1 - CN5.2 0 Ω NO SALT KN50.10 - KN 50.11 0 Ω NO SALT Measure just on the electronıc SALT SENSOR ∞Ω THERE IS SALT ∞Ω THERE IS SALT Sketch above show the connectors of the salt sensor on the electronical card. Probes of the tester should be applied on the related connectors.
Page 40 FLOATER From the electronical card: Mıcroswıtch ıs ınactıve (no water ) CN2.1 - CN 2.5 0 Ω KN2.5 - KN 2.10 0 Ω mıcroswıtch ıs actıve (there ıs FLOATER (MICROSWITCH) CN2.1 - CN 2.4 KN2.4 - KN 2.5 ∞Ω ∞Ω water) Position 1 : You can check the floater by controlling the specified value intervals.
Page 41 DOOR SWITCH From the electronical card: DOOR SWITCH CN2.9 - CN2.2 0 Ω KN2.8 - KN2.10 0 Ω Door is close Above sketch show the connectors of the door switch on the electronical card. From the compoonent: Probes of the tester should be applied on to the related connectors as shown on the pictures.
Page 42 FAN MOTOR From the electronical card: FAN MOTOR CN 6.2 - CN 2.9 KN 6.2 - KN 2.8 Above sketch showa-s the connectors of the fan motor on the electronical card. From the comonent: Probes of the tester should be applied on to the related connectors as shown on the pictures.
Page 43 RİNSE AİD SENSOR From the electronical card: CN 5.3 - CN 5.2 0 Ω NO RİNSE AİD KN 50.8 - KN 50.9 0 Ω NO RİNSE AİD Rınse adı off RINSE AID SENSOR Rınse aıd on ∞Ω THERE IS RİNSE AİD ∞Ω...
Page 44 ON/OFF SWITCH It can’t be measured from the electronical card. DOOR SWITCH CN2.9 - CN2.2 0 Ω KN2.8 - KN2.10 0 Ω Door is close From the component:...
Page 45: Disassembly
DISASSEMBLY CAUTION!: REMOVE ELECTRIC PLUG FROM THE SOCKET DURING THE DISASSEMBLY Top Plate a) Remove two screws that fix the top plate at the back. b) Push the top-plate back and pull it up. Plastic Kick Plate Remove two screws fixing plastic kick plate. Remove the plastic kick plate as it is shown in the picture.
Page 46 Side panels Remove the screws fixing side panels Front Panel a) Remove the screws as it shown in the picture. b) Pull down the front panel after removing the screws.
Page 47 Kick Plate Sheet Iron a) Remove top plate, plastic kick plate and side panels. b) Remove the screws (4 screws) that fix the kick plate sheet iron. c) Pull it down as shown in the picture. To remove the side panel, remove the upper plastic hinge and than the above one and pull it up. •...
Page 48 Control Panel a) Remove 6 screws that fix control panel to the door inside sheet iron. b) Remove the control panel group crefully as shown in the picture c) Remove the cable connection plastic which fix cable harness to the control panel as shown in the picture.
Page 49 Dispenser a) Remove the front panel b) Remove the wire. c) Remove dispanser from inside door’s hingers by using slotted screwdriwer. Push and remove the dispanser. Door Inside a) Remove side panels. b) Remove Built-in Hinge Spring. c) Pull the door inside up as It is shown in the picture. d) Remove two screws that fix hinge movement sheet iron to the door inside.
Page 50 Air - break a) Remove the left side panel of the machine. b) Open machine’s door c) Rotate counterclockwise air-break nut and remove it. d) Remove air-break’s connections with salt cap as it is shown in the picture. (be careful about plastic hinges)
Page 51 Hose connection plastic a) Remove left side panel. b) By using flat tip screwdriver remove hose connection plastic’s hinge from the basement as it shown in the picture c) Push the hose connection plastic. Warning: If you do not obey instrucyions while disassembly od the hose connection plastic it can be broken.
Page 52 Power cord a) Remove hose connection plastic. b) Remove the lower cover. c) Remove the wires that is between power cord and parasite filter. d) Remove the power cord.
Page 53 To acces the components from in Front of the Machine a) Remove plastic kick plate iron sheet and basement front cover Regenaration valve a) Remove plastic kick plate and kick plate iron sheet. b) Remove the wires c) To remove regenaration Value rotate counterclockwise and pull it as it is shown in the picture.
Page 54 Access the components from the lower cover a) Lay the appliance on the rear panel. b) Remove lower cover from the places that are shown in the picture. Circulation pump a) Remove lower cover from the places and measure the component.
Page 55 Water softener a) To remove salt cup cover, rotate it in the direction of counterclockwise b) To remove salt cup nut, rotate it in the direction of counterclockwise. c) Remove left side panel. d) Derach the connections which are between water softener and air-break.
Page 56 Floater a) Remove lower cover. b) Remove two screws that fix floater as it is shown in the picture. c) Remove the two floater hoses. d) Remove the wire that is connected to the floater.
Page 57 Water Inlet valve a) Remove lower cover. b) Remove the wire that is connected to the water inlet valve. c) Remove the clamp that connects water inlet valve and air-break as it is shown in the picture To remove water inlet valve pull it back as it is shown in the direction of picture then release water inlet valve from the pins that is connecte to and rotate it in the direction of counterclockwise.
Page 58 Draining hose a) Remove the hose connection plastic. b) Remove lower cover. c) Remove the clamp that fixes draining hose to thesump d) Remove draining hose Lower basket a) Open machine’s door. b) Pull the basket to yourself. Upper basket a) Open upper basket rail lock front.
Page 59 The components that are inside the tub course, micro and metal filters a) Open the door. b) Remove lower basket c) To remove microfilter group rotate them in the direction of counter clockwise and pull them up as it is shown in the picture d) To remove microfilter group (course filter and micro filter ) pull them as it is shown in the picture.
