SOGEDIS Y Series Service Manual

Hide thumbs Also See for Y Series:

Advertisement

Quick Links

Download this manual
SERIE Y

Advertisement

loading
Need help?

Need help?

Do you have a question about the Y Series and is the answer not in the manual?

Questions and answers

Related Manuals for SOGEDIS Y Series

Summary of Contents for SOGEDIS Y Series

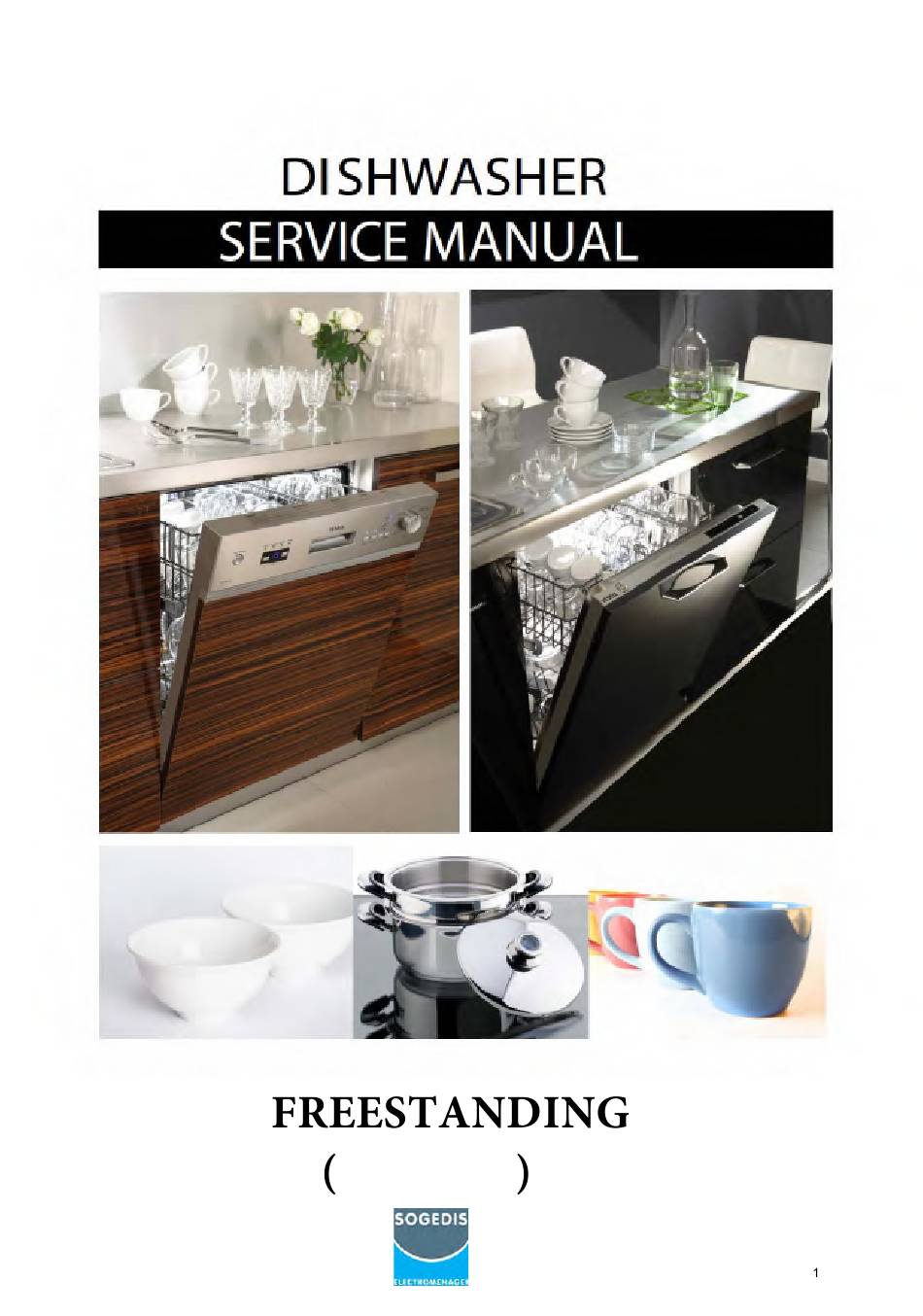

  • Page 1 SERIE Y...
  • Page 3 668316 00205458 0001...
  • Page 15 The user interface includes: Program button Program status with Wash, Rinse, Dry and End leds / Program numbers with 4 leds Start/Stop and Reset button with 1 led Delay and Half Load button with integrated led(Half Load led) Delay durations with 2 leds On/Off button with integrated led Rinse aid and Salt leds Note: Wash, Rinse, Dry, End leds also corresponds to program numbers P1, P2, P3, P4, P5 and P6...
  • Page 16 The user interface includes: Display including Wash, Rinse, Dry and End leds + 3 digits + Program button + Start/Stop/Reset button Extra button wtih 3 leds(Hygiene led, Rinse led, Dry led) Delay button with 1 led(Delay led) Half load and Tablet option button with integrated led Upper Basket led Lower Basket led On/Off button with integrated led...
  • Page 17 The user interface includes: Display including Wash, Rinse, Dry and End leds + 3 digits + Program button + Start/Stop/Reset button Extra button wtih 3 leds(Energy Save, Fast, Silent) Delay button with 1 led(Delay led) Half load and Tablet option button with integrated led Upper Basket led Lower Basket led On/Off button with integrated led...
  • Page 19 When the dishwasher is switched on, For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Switch on Select program ON/OFF* ON/OFF* ON/OFF* ON/OFF* Pressure of Start/Stop button *When user selects a program related program led(s) is ON. After pressing Start/Stop button, related program led(s) is OFF, Wash led is ON.
  • Page 20 When the machine passes to dry step, Dry led and On/Off led are ON. Wash, Rinse and End leds are OFF. When the program finished, End led and On/Off led are ON. Wash, Rinse and Dry leds are OFF. Ex2: User presses On/Off button to switch on the dishwasher. On/Off led and Start/Stop led are ON. Next, selects P2 by pressing program button twice.
  • Page 21 FOR USA MODELS: For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Door open Door closed For models w/ display; COMMANDS Wash Rinse On/Off Digit Door open program number duration of default program are shown alternately Door closed program number...
  • Page 22 duration of default program are shown alternately During the program if the door is opened and re-closed without any modifications on the program button and without the pressure of Start/Stop button, the program continues. Washing program re- For models w/o display; COMMANDS Start/Stop Wash...
  • Page 23 During dry step: if the door is opened and re-closed, the program is ended. For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Door open Blink Door closed *When the door is opened, Dry led is ON together with the blinking Start/Stop led. When the door is closed, program ends and End led is ON.
  • Page 24 program pauses, program number duration program are shown alternately Door closed Duration program resumes During regeneration and resin washing step: if the door is opened and re-closed, the program continues. For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Door open Blink Door closed led is ON together with the blinking Start/Stop led.
  • Page 25 For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Door open Blink Door closed is ON together with the blinking Start/Stop led. For models w/ display; COMMANDS Wash Rinse On/Off Digit Door open Duration program pauses, program number duration program are shown alternately Door closed...
  • Page 26 Door open program number duration of default program are shown alternately Select program program number duration program are shown alternately Pressure of Start/Stop Duration button program blinks Door closed Duration program If user selects a program when the door is open, related program duration and number is seen on the display.
  • Page 27 For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Pressure of Start/Stop ON/OFF* ON/OFF* ON/OFF* End of program ON** Rinse, Dry) is ON. For models w/ display; COMMANDS Wash Rinse On/Off Digit Pressure of Start/Stop Blink End of program Display shows ring cancelation process and End led blinks.
  • Page 28 The program continues with the flow program but with the parameters (temperature, times) of the new program. In heating step: If temperature is over than the new desired temperature, cut off heating step and go on with the next step with new parameters. If temperature is lower than the new desired temperature heat up water to the desired temperature level.
  • Page 29 *If user presses Start/Stop button, program continues with the new parameters and related washing led(s) is ON For models w/o display; COMMANDS Start/Stop Wash Rinse On/Off Washing cycle is in ON/OFF ON/OFF ON/OFF progress Pressure of Start/Stop ON/OFF ON/OFF ON/OFF Drain of water Blink End of Drain...
  • Page 30 For models w/ display; COMMANDS Wash Rinse On/Off Digit Before starting program program number duration program are shown alternately Pressure of On/Off button When machine is changed to Power OFF position during program, all leds are OFF, display is OFF, Program is paused and all electrical components are stopped.
  • Page 31 program *New program cannot be selected without pressing Start/Stop button. Note: If the washing step is Dry before machine is powered off, program ends after machine is powered on. For models w/o display; COMMANDS Start/Stop Wash Rinse Selected Related On/Off indicators program (delay...
  • Page 32 During delay time Pressure of Start/Stop Blink button Select new program Blink New program led(s) is ON Pressure of Start/Stop New program button led(s) is ON For models w/ display; COMMANDS Delay On/Off Digit During delay time Delay duration Pressure of Start/Stop Delay duration, button program number and...
  • Page 33 Mains voltage is cut(Power off) Mains voltage is back(Power on) Delay duration blinks twice and then resumes Select new program Delay duration Pressure of Start/Stop button new program number program are shown alternately When user selects delay time but does not presses Start/Stop button: if user switch off/on the machine, delay timer is cancelled and machine is on standby position.
  • Page 34 -In case of Power fail during washing, options are stored in memory. -When the machine is switched on again, the last selected options are active and washing must go on remaining. -Due to Eco design requirements, each energized of the machine (by pressing ON/OFF) Eco program must be fixed as default, the options that are chosen before will be cancelled.
  • Page 35 For models w/ display-w/ diverter-w/ BLDC w/ ADO; Option Delay (1-19h) Half load(3 modes) Tablet Extra Fast Extra Silent Energy Save Child Lock For models w/ display-w/ diverter-w/ BLDC w/o ADO; Option Delay (1-19h) Half load(3 modes) Tablet Extra Fast Extra Silent Extra Drying Child Lock...
  • Page 36 OPTIONS Extra Delay Half Load Tablet Child Extra Extra Hygiene Lock Rinse PROGRAMS Prewash Quick 30' Delicate 40 Intensive Daily 60 Normal 55 Auto Delicate 30- Auto Normal Auto Steamwash *Half load cannot be selected for models without diverter. For Y25: Delay Half Load Child...
  • Page 37 Steam Wash For Y26: Delay Half Load Child Extra Extra Extra OPTIONS Tablet Start (3 modes) Lock Drying Fast Silent PROGRAMS Prewash Dual Pro wash Hygiene 70 C 70 C Steam Wash For Y23_USA: Child Lock Option Short description Delay Timer Program starts with a delay The wash is executed with upper spray, Half Load(3 modes)
  • Page 38 Child Lock It can be activated by pressing related buttons at the same time for 3 seconds(see 5.4.4) Buttons are blocked to press. Extra Hygiene Increase the washing temperature at final rinse step in order to eliminate bacteria This option increases water temperature at final rinse step and increase Extra Dry drying step duration up to 10 min.
  • Page 39 Cancelling the delay start is possible during the delay time. Press Start/Start button and the washing program will start. For models w/o display; Half load is enabled/disabled Delay led is ON. For models w/ display-w/o diverter; once and Half load led is ON. For models w/ display-w/ diverter;...
  • Page 40 For models w/ display-w/o diverter; Child lock is enable/disabled by c For models w/ display-w/ diverter; Extra option is selected before program start button and regarding led is ON. When Extra button is pressed; First time: Hygiene led is ON, Rinse and Dry leds are OFF. Wash is executed with the following steps with instead of the normal.
  • Page 41 Heating relay must be switched with un-supplied Heater. Stop Circulation Pump. Wait for pressure switch certainly open. Open/Close Heater Relay Wait (Heater relay certainly close); Start Circulation Pump. If Tablet is selected, heating steps must be < 55 for steps before last rinse. Water Load is obtained by flow meter signals.
  • Page 42 Detergent dispenser step After wash+heating step is started 3 seconds, Dispenser is activated during 5 seconds. If power fail or opening door or pushing Start/Stop or switching OFF is happened, Detergent dispenser step is started again. Rinse aid dispenser step Dispenser is activated 25 seconds during rinse aid dispenser step twice.
  • Page 43 If Water hardness level is 1 Regeneration step is not performed -The consumed liters are counted by FLM(flow meter) impulses. -In case of FLM broken, the liters corresponding at the FLM time out are used. (2,1 lt + 2,5 lt ). *If the level set is less than L4: the regeneration cycle is not performed, but the quantity of consumed water is counted.
  • Page 44 Take memory failure code of low voltage to show at the beginning of service test. After main supply voltage is above 155VAC, program is started again When main supply voltage is above 285VAC, voltage sensing circuit detect high voltage and program is stopped by software.
  • Page 45 * If it is the first hardness set, hardness level is level 3. For models w/ display; Level Display Power OFF; press program button. Power ON and continue to press program Release program button. The last setting level is viewed*. Press program button to set the desired level.
  • Page 46 F =>6cc Action New(Sliding dispenser) Detergent cover opening: 5" 5" 0.3" Dose setting: Manual in the dispenser Automatic in the software 1 - 1cc 1 - 0cc cc 2 - 2cc 2 - 1.5cc 8"ON; 8"OFF 3 - 3cc 3 - 3cc 8"ON;...
  • Page 47 Models with turbidity contains FA error, the others does not. Machine must be ON position during activation and deactivation of inn nner light modes. Open or close position of th the door is no not important. First energize the machine via On/Off button. (if it is in OFF position). for inner light option machine door is open.
  • Page 48 If any user intervention occurs such as pressing buttons, Eco Mode cycle starts from beginning (inner light is ON for 4min and then becomes OFF again) While implementing Ionizer function for April 2018, we added 12V DC inner light for Y1 series. Y1 w/o display: inner light option.
  • Page 49 Step Time Tested Load Show code Before start, the code of last error is visualized (see below) Drain Drain pump. Fill (3l/2,5l)* Flow meter; Inlet Valve; Fill + Wash (0,5/1lt)** Flow meter; Inlet Valve; Pressure Switch; 4/ 4/ Turb. Sensor Measure of turbidity sensor Wash Circulation pump;...
  • Page 50 Note: When water tap is closed, FF failure code will be shown in USA models. For models w/ display; Name DISPLAY Notes Overflow In the normal work this failure is not visualized. Leakage Draining time out Presence of Flow meter impulses Absence of Flow meter In the normal work this failure is not visualized.
  • Page 51 If the failure requires the termination of the washing program: Stop all the devices. Start to visualize the failure code. Stop all the devices. Re-Start the washing program. If it is necessary it performs the Re-Fill routine Re-Fill Routine After a forced drain (ex: a failure routine) if the dishwasher was in wash before the drain it performs the re-fill routine: When the first load step is finished, Inlet Valve ON + circulation pump ON to load 1l (time out Return to the washing cycle...
  • Page 52 Draining timeout Recognize: level position. Action Go to Failure routine Exit OFF/ON Service Model Start/Stop(w/o Wash Rinse Display display) Delay(w/display) Y1 w/o display Blink Blink Y1 w/ display,Y2 All leds blink Presence of Flow Meter impulses and inlet valve switched OFF Recognize: When the triac valve is OFF and flowmeter gives some impulses (more than 500cl) >...
  • Page 53 Model Start/Stop(w/o Wash Rinse Display display) Delay(w/display) Y1 w/o display Blink Y1 w/ display,Y2 All leds blink Rarely flow meter impulses (perhaps low water pressure) Recognize: With rarely flow meter impulses (time out of absence of flow meter impulses Action Go to Failure routine.
  • Page 54 Re-Fill Recognize: During a washing step, if pressure switch goes from full level to empty level Failure routine start. Wash restarts with the Re-Fill routine (3l+1l). If pressure switch goes from full level to empty level for 3 times during the same washing step failure is recognized.
  • Page 55 Model Start/Stop Wash Rinse Display Y1 w/o display Blink Blink Blink Y1 w/ display,Y2 All leds blink Diverter Open Circuit(only Y2) Recognize: Action Go to Failure routine. Exit OFF/ON Service Model Start/Stop Wash Rinse Display All leds blink Turbidity (Y24,Y25, Y26) Model Start/Stop Wash...
  • Page 56 Action Go to Failure routine. Exit OFF/ON Service The problem would disappear YES. Model Start/Stop(w/o Wash Rinse Display display) Delay(w/display) Y1 w/o display Blink Blink Blink Blink Y1 w/ display,Y2 All leds blink Auto Door Failure(Y25) Recognize: When auto door mechanism is activated, the door is not opened Action Go to Failure routine.
  • Page 57 Overflow Leakage Blink Drain time out Blink Blink Re-Fill time out Presence Flow meter imp. Blink Absence Flow meter imp. With Full Absence Flow meter imp. Without Full Blink NTC ca/cc Blink Overheating Blink 10 Unsuccessful heating* Blink 11 Diverter opened Blink 12 CK Parameters Blink...
  • Page 58 Turbidity failure: Start circulation pump just after turbidity sensor check (at step 92) for 6 sec, if electronic card realize Turbidity sensor failure during turbidity test. If we open/close the door during end test, End test continues from the point on which we open/close the door.
