Summary of Contents for Hisense GG722B
- Page 1 说明书尺寸：210x145mm 材质：80g双胶纸 颜色：黑色印刷 装订方式:打钉...

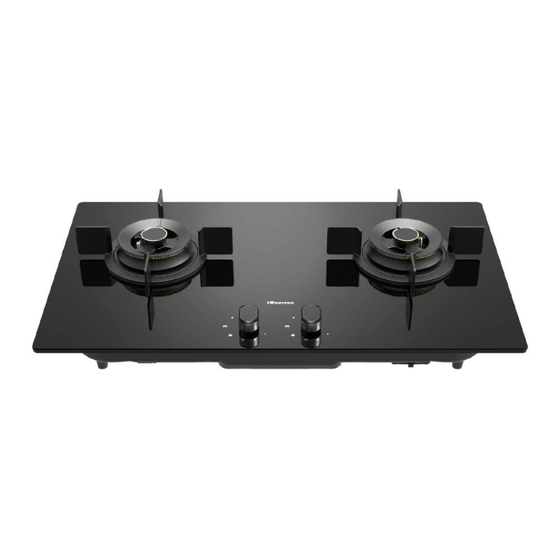

- Page 2 User and Installation Manual Built-In Gas Hob Model: GG722B Before installing or using the appliance, please read the manual carefully, and keep it for future reference.
-
Page 3: Table Of Contents
Tips Thank you for choosing “Hisense” gas hob. Please read the instructions carefully before installation and use. If you have any technical or difficult questions, please contact our company and we will serve you sincerely. Table of Contents Precautions......................Product Introduction................... -
Page 4: Precautions
Precautions In order to avoid harms to users and other personnel or any property damage, the following distinctions and signs are specially formulated. The following matters are all safety relevant, please strictly abide by them, and use the product correctly based on a full understanding of them. Content distinctions based on the degree of harm and damage When it is ignored and misoperations are carried out, it may cause Danger... - Page 5 The installation, maintenance, movement and Do not place flammable and explosive ancillary work of the product must be entrusted materials (clothes, newspapers, kerosene, to the service department of our company or a etc.) around the stove. service provider with installation and formal maintenance qualifications.
-
Page 6: Product Introduction
Product Introduction Product structure (subject to the actual product) Center burner Thermocouple Ignition Pan support needle Outer ring burner cap Distributor Knob Tempered glass panel Inner ring gas flap Hose connector Outer ring gas flap Battery box Stove foot Outer ring gas flap Inner ring gas flap Packing list (subject to the actual product) - Page 7 Product parameter Product model GG722B Gas type LPG G30 Gas supply pressure(Pa) 2900 Norminal heat input (kW) Rated voltage DC1.5V Product size(mm) 780×460×150 Note: The specific performance parameters of the stove are shown on the product nameplate.
-
Page 8: Product Installation
Product Installation Hearth opening and hob installation 1. Draw lines on the surface of the hearth and cut an opening according to the following drawing or the drawing and size indicated on the opening template on the packing case. 2. Insert the stove with the battery installed in the opening, and confirm that the stove is installed flatly. For glass panel stoves, paste panel sealing rubber strip around the bottom of the panel. -
Page 9: Operation And Use
Operation and Use Ignition, switch off, fire regulation Medium and small fire Maximum fire Minimum fire Medium and big fire Medium fire Small fire Ignition Turn on the gas supply, press the knob of the stove and rotate it counterclockwise. Switch off Rotate the knob clockwise back to the “... -
Page 10: Care And Maintenance
Tips 1.For newly installed hob or hob are left unused for a long time, the pipes are filled with gas. Therefore, if the stove cannot be ignited for the first time, repeat the ignition process and it can be fired after the gas in the pipe is exhausted; 2.In the case of yellow flame floating flame or backfire appear during burning, rotate to adjust the air regulating plate at the bottom of the stove until the burning flame become normal (see the figure below). -
Page 11: Common Faults And Solutions
Common Faults and Solutions Fault Cause Solutions The master gas switch is not Turn on the master gas switch turned on The hose is twisted, squashed Correct or replace the intake hose or blocked Replace the gas cylinder or query Out of gas Repeat the ignition process to Gas mixed in the hose... - Page 12 11286185-A...
