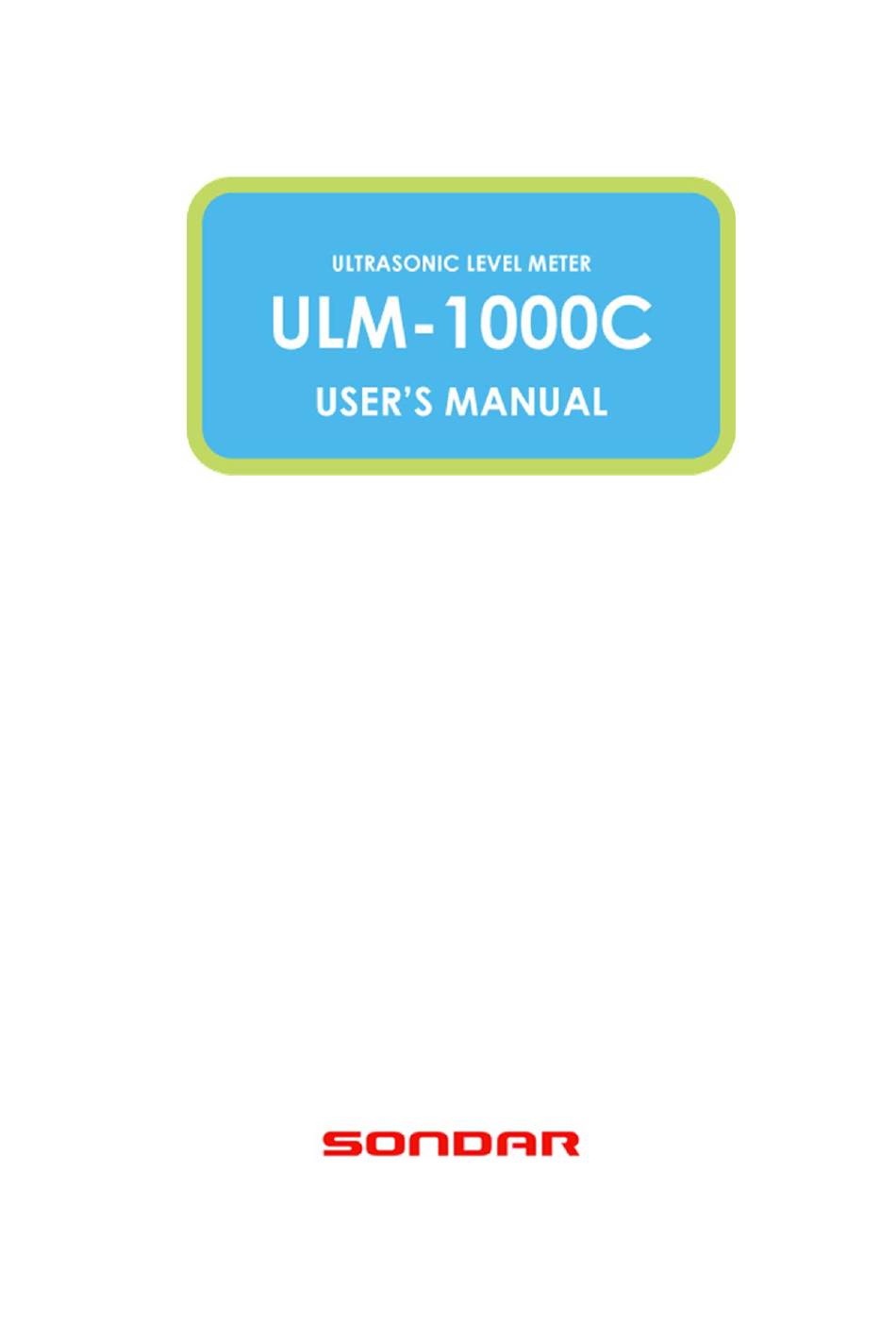

- Page 1 Please read this manual attentively before installation © IS Technologies Co., Ltd. PAGE 1 / 41...
-
Page 2: Table Of Contents
IV. WIRING ......................19 1. Wiring .............................19 2. Power ............................19 V. OPERATION ..................... 21 1. Start-up Display ........................21 [Pic1. Start-up Display] ......................21 [Pic2. Start-up Display ......................21 2. Display ............................22 3. Buttons ...........................24 © IS Technologies Co., Ltd. PAGE 2 / 41... - Page 3 2. Current Output Menu ......................29 3. Compensation Menu ......................31 4. Outputs Simulation Menu ....................34 5. Password Menu ........................35 VII. MAINTENANCE .................... 37 Warranty Period ........................37 Repair Service ..........................37 VIII. TROUBLE SHOOTING ................39 © IS Technologies Co., Ltd. PAGE 3 / 41...
-
Page 4: About This Manual
About this Manual This manual provides important information about the installation, wiring, operation, and control of ULM-1000C. Please read this manual before installing or operating the product. In addition to operating the product, this manual is very important. Please keep it in a safe place for easy reference. -
Page 5: Safety Guide Instruction
Safety Guide Instruction © IS Technologies Co., Ltd. PAGE 5 / 41... -
Page 6: Authorized Personnel
3. Cautions This manual provides all information you need to operate ULM-1000C, maintain and trouble shoot. Please follow the instructions in this manual. The manufacturer is not responsible in any way for the risk of an accident when user doesn’t follow the instructions. -
Page 7: Symbols
If it is ignored, injury to people and serious damage to the instrument could be result. Electric Shock If it is ignored, the product could be damaged by electric shock Information: It provides additional information. © IS Technologies Co., Ltd. PAGE 7 / 41... - Page 8 Product Description ULM-1000C © IS Technologies Co., Ltd. PAGE 8 / 41...
-
Page 9: Product

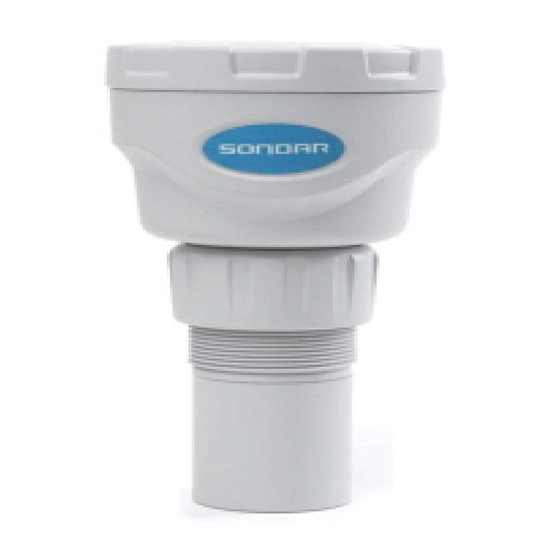

ULM-1000C is two-wire loop-powered instrument and its measurement range is 6 meters. ULM-1000C menu makes the user easy and simple for calibration. All functions are optimized which enables you to effectively monitor the liquid level and keep your facilities running safely and reliably. -
Page 10: Principle Of Operation
Distance: from the sensor bottom to surface of the target • • Level: from the bottom of storage to surface of the target • Empty: from the sensor bottom to the bottom of storage © IS Technologies Co., Ltd. PAGE 10 / 41... -
Page 11: Specification
Temperature Compensation by a built-in temperature sensor × Dimension (W) 120(H)x209(D) mm Weight ca. 1kg DC 20 ~ 30V Power Supply Power Consumption less than 0.022A * The Specification is subject to change without prior notice. © IS Technologies Co., Ltd. PAGE 11 / 41... -
Page 12: Product Package
3. Product Package (PG13.5) ULM-1000C Manual CD Cable Grand X1 Test Report 4. Dimension The enclosure material is polypropylene and the protection grade is IP67. © IS Technologies Co., Ltd. PAGE 12 / 41... -
Page 13: Installation
INSTALLATION © IS Technologies Co., Ltd. PAGE 13 / 41... -
Page 14: General Guide
Keep the distance from the place where are strong noise by high voltage, high current etc. Install the unit in the place vibration free. Use the product in accordance with its specifications. © IS Technologies Co., Ltd. PAGE 14 / 41... -
Page 15: Mounting
2. Mounting ULM-1000C can be mounted with a mounting bracket or with screw in flange or in many other ways. This manual explains two typical mounting types of ULM-1000C. 2-1. Installation with mounting bracket • If the equipment is installed or used in a manner not specified in this manual, then the protection provided by the equipment may be impaired. - Page 16 150mm 430mm 200mm 570mm • The nozzle length shouldn’t be exceeded the maximum length above. Shorter setting is better. • The nozzle should be free of obstructions such as weld seams. © IS Technologies Co., Ltd. PAGE 16 / 41...
-
Page 17: Installation Condition
The bottom of the sensor should be Do not set the maximum level(100 % perpendicular to the surface of of Span) into the Dead Zone range water. © IS Technologies Co., Ltd. PAGE 17 / 41... -
Page 18: Wiring
Wiring © IS Technologies Co., Ltd. PAGE 18 / 41... -
Page 19: Power
2. Power The standard power type is DC power. The power range is DC20-30V. • When turning on the power of ULM-1000C for the first time, make sure any connected devices are disabled until all system functions are confirmed and to be operating properly. -
Page 20: Operation
Operation © IS Technologies Co., Ltd. PAGE 20 / 41... -
Page 21: Start-Up Display
V. Operation 1. Start-up Display When ULM-1000C is powered on, the screen shows as bellow pictures. After showing Pic2, the actual level value is displayed on the display screen. [Pic1. Start-up Display] [Pic2. Start-up Display © IS Technologies Co., Ltd. -
Page 22: Display
2. Display 2.1 LCD DISPLAY ULM-1000C has two modes for measuring level. Measuring Mode is to show the measuring value in real time while it is operating. Programing Mode is to calibrate the menus for individual applications. The 4 digits is shown in the LCD in the Measuring Mode. A Flashing “0” is shown when it is in fault condition (Lost Echo). - Page 23 E1 means transducer and 2.3 Measuring Mode This mode is used once the ULM-1000C has been set up in program mode. It is also the default mode that the unit reverts to when it resumes operation after a power failure.
-
Page 24: Buttons
2.4 Programing Mode This mode is used to set up the ULM-1000C or change information already set, this is achieved by using the 5 push buttons located either side of the display. Entering a value for each of the menu options that are relevant to your application provides all the programming information. - Page 25 • After all setting, press “RUN” to save the value. it returns to measuring mode. • If press “ESC” button instead of “RUN” button, it returns to the menu which you selected right before. The setting value isn’t saved. © IS Technologies Co., Ltd. PAGE 25 / 41...
-
Page 26: Programing
Programing © IS Technologies Co., Ltd. PAGE 26 / 41... -
Page 27: Application Menu
VI. Programming This chapter describes all of the menu options in ULM-1000C, in numerical order. Press the menu button, can be set the menu option. From menu 1 to menu 18 it can be moved with up or down key. The grey marked cell is the factory set value. - Page 28 • The setting value of the bottom distance is mostly maximum measuring range of the sensor. However, the bottom distance could be set as 99.99m depending on the application conditions. The incorrect bottom distance value causes the incorrect measurement. © IS Technologies Co., Ltd. PAGE 28 / 41...
-
Page 29: Current Output Menu
Empty Level (P04) minus Blanking Distance (P05). Except for when Measurement (P01) is selected as Distance in this case the Span is the same as the Empty Level (P04 © IS Technologies Co., Ltd. PAGE 29 / 41... - Page 30 [P08] mA Fail-safe Value When the instrument is installed incorrectly or the transducer is broken, it can’t be measured continuously. If the ULM-1000C Series fails to receive a valid echo return from the target, then the mA output can be used to indicate a fault condition (Loss of Echo).
-
Page 31: Compensation Menu
The 8 is equal to 0.8V. The table below shows the equivalent voltage to each value. The pre-set is “3.” Voltage ←Low High→ © IS Technologies Co., Ltd. PAGE 31 / 41... - Page 32 Sound Velocity accordingly to obtain an accurately displayed reading. Name of Gas Sound speed (m/sec) Chlorine Carbon dioxide Argon Oxygen 331.5 Ammonia Ethane Neon Helium © IS Technologies Co., Ltd. PAGE 32 / 41...
- Page 33 Option Description Automatic Effective only for the First signal [P16] Detection Target The signals reflectance is subject to change by the measuring target. Option Description Liquid Bubble Liquid Solid Powder © IS Technologies Co., Ltd. PAGE 33 / 41...
-
Page 34: Outputs Simulation Menu
ULM-1000C. This is for the simulation. [P17] Simulation Put the range at your disposal. ULM-1000C sends out the output current for the range. For example, if you put 6 meter (0.600), the output current is sent out respond to 6 meter. -
Page 35: Password Menu
After 1 second it returns to setting password mode. • User can’t configure the menus when user forgets the password. Please note password number and pay attention not to lose it. © IS Technologies Co., Ltd. PAGE 35 / 41... -
Page 36: Maintenance
Maintenance © IS Technologies Co., Ltd. PAGE 36 / 41... -
Page 37: Warranty Period
VII. Maintenance Warranty Period Warranty period is 3 years for ULM-1000C but if the problem is caused by ’ user s fault or misuse, the repair charge will be incurred. Repair Service When some problem is occurred in ULM-1000C, the error code displays on the screen, it shows what the problem is. -
Page 38: Trouble Shooting
Trouble shooting © IS Technologies Co., Ltd. PAGE 38 / 41... - Page 39 VIII. Trouble shooting When some problem is occurred in ULM-1000C, the error code displays on the screen, it shows what the problem is. The error code information can be founded in this manual. 1. The level changes heavily periodically Cause: Motor or alternator is installed.
- Page 40 1. Automatic Detection 2. Effective only for the first Automatic Algorithm signal 1. Liquid 2. Bubble Liquid Detection Target Liquid 3. Solid 4. Powder Output Simulation 0.000-7.000 3.000m Simulation Password Password 0-9999 © IS Technologies Co., Ltd. PAGE 40 / 41...
- Page 41 IS Technologies Co., Ltd. 11-78 Songdo-dong Yeonsu-gu, Incheon-City,406-840, Republic of Korea Phone: +82 32 850 2624 Fax: +82 32 850 2612 ©IS Technologies Co., Ltd. 2013. Email. sales@sondar.com © IS Technologies Co., Ltd. PAGE 41 / 41...
