Summary of Contents for Ryobi R36PHD00

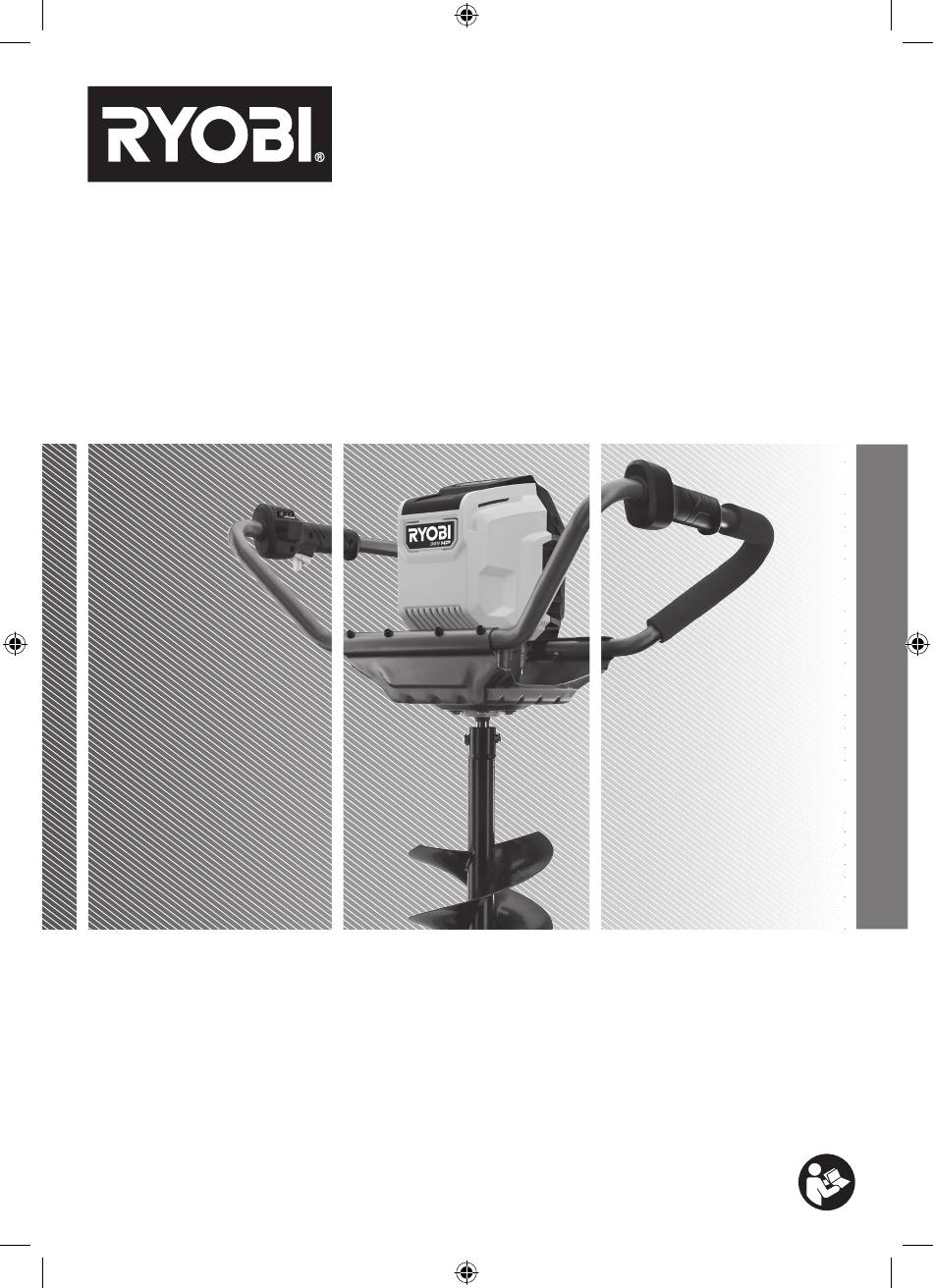

- Page 1 R36PHD00...
-
Page 2: Intended Use
■ Do not abuse the cord. Never use the cord for IMPORTANT! carrying, pulling or unplugging the power tool. Keep It is essential that you read the instructions in this manual cord away from heat, oil, sharp edges, or moving before assembling, operating, and maintaining the parts. - Page 3 ■ Disconnect the plug from the power source and/ SERVICE or remove the battery pack, if detachable, from Have your power tool serviced by a qualified repair ■ the power tool before making any adjustments, person using only identical replacement parts. This changing accessories, or storing power tools.
-
Page 4: Led Display
■ Brace the product properly before use. The product WARNING! If the product is dropped, suffers heavy produces a high output torque and without properly impact, or begins to vibrate abnormally, immediately turn off bracing the tool during operation, loss of control may the product and inspect it for damage or identify the cause occur resulting in personal injury. -
Page 5: Switch Position
■ After each use, clean the product with a soft, dry cloth. SWITCH POSITION Any part that is damaged should be properly repaired or replaced by an authorised service centre. Display Description Location ■ Check all nuts, bolts, and screws before each use and at frequent intervals for proper tightness to ensure that Reverse Bottom... -
Page 6: Symbols In This Manual
Guaranteed sound power level SYMBOLS IN THIS MANUAL Note Warning Original Instructions... - Page 7 R36PHD00 Right handle assembly Speed select and reverse switch Trigger Wire assembly Insulated handle Left handle assembly Battery port Gear box Quick-lock pin Nuts and bolts for handle assemby Drive shaft Auger Tools for assembly Operator’s manual Battery pack Charger...
- Page 8 Always wear safety goggles or safety Loosen and remove the nuts and bolts Insert the right handle assembly on the glasses with side shields when using a hex key or wrench. side with the exposed cable leading to operating the product. Wear non-slip, the motor controller in the power head.
- Page 9 With the battery port facing towards Align the holes on both sides and secure the handles using the nuts and bolts. you, insert the tubes of the left handle assembly into the curved slots on the power head base plate. Insert the auger into the drive shaft.
- Page 10 Operating the p.11 product Cleaning the Storing the p.13 p.14 product product...
- Page 11 OPERATING THE PRODUCT WARNING: Always stand with the forward/ reverse button close to the waist during operation. WARNING: Maintain a firm grip on the product, and hold both handles in the correct operating position. 1. Insert the battery pack until the latches click into place.
-
Page 12: Operating Tips
4. Use the product to plant and dig holes for applications such as planting of trees, shrubs, flowers, cultivating preparing soil, and light-duty fencing and posts. WARNING: Do not touch the auger bit when the product is turned on. Keep the auger bit away from the body and below waist level. -
Page 13: Cleaning The Product
CLEANING THE PRODUCT 1. Press the latches and remove the battery pack. 2. Unlock the quick-lock pin. Remove the auger from the drive shaft. 3. Clean the auger with water or a brush. WARNING: Never wash the body of the product with water. -
Page 14: Storing The Product
STORING THE PRODUCT 1. Press the latches and remove the battery pack. 2. Unlock the quick-lock pin. Remove the auger from the drive shaft. 3. Secure the quick-lock pin to the drive shaft. 4. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children. -
Page 15: Product Specifications
Cordless post hole digger standardised test and may be used to compare one tool with Model R36PHD00 another. They may be used for a preliminary assessment of exposure. Voltage 36 V d.c. - Page 16 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2021 Techtronic Cordless GP. 961087300-01...
