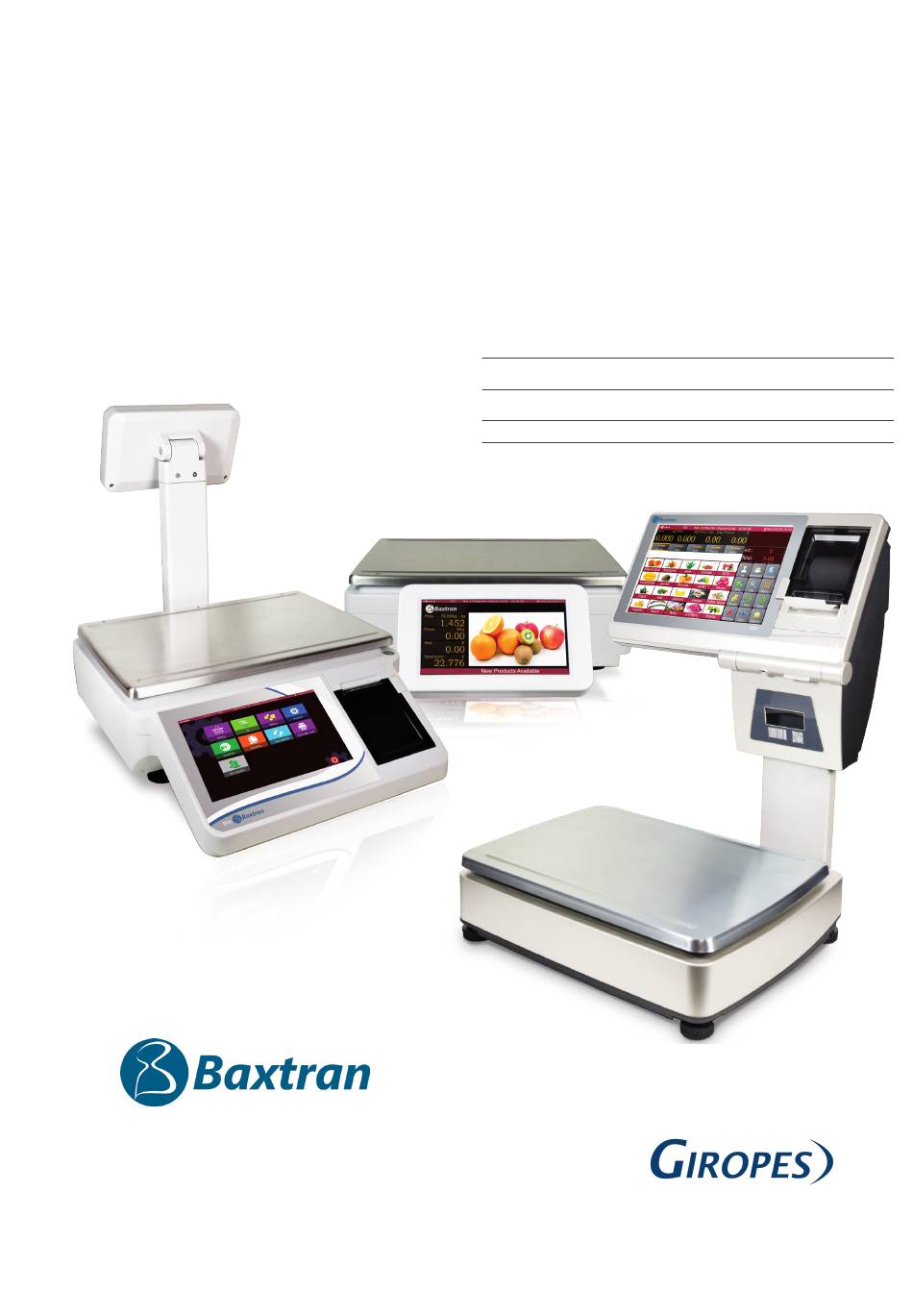

TOUCH SERIES
marca propiedad de | est une marque de | trade mark property of:
El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas regulaciones oficiales./Le
constructeur se réserve le droit de modifier les caractéristiques de ses produits en vue d'y apporter des améliorations techniques ou de respecter de nouvelles réglamentations./The
manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.
USER MANUAL
EN
COMMERCIAL SCALES
Pol. Empordà Internacional Calle F. Parcela 15-16
17469 VILAMALLA - (Girona) SPAIN
T. (34) 972 527 212 - F. (34) 972 527 211
USER'S MANUAL T-TOUCH SERIES
EN
EN
V.5_25/11/2019
Advertisement
Table of Contents
Related Manuals for Baxtran Giropes TOUCH Series
Summary of Contents for Baxtran Giropes TOUCH Series
- Page 1 USER'S MANUAL T-TOUCH SERIES TOUCH SERIES USER MANUAL COMMERCIAL SCALES V.5_25/11/2019 marca propiedad de | est une marque de | trade mark property of: Pol. Empordà Internacional Calle F. Parcela 15-16 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 - F. (34) 972 527 211 El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas regulaciones oficiales./Le constructeur se réserve le droit de modifier les caractéristiques de ses produits en vue d’y apporter des améliorations techniques ou de respecter de nouvelles réglamentations./The manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.
- Page 2 USER'S MANUAL T-TOUCH SERIES...
-
Page 3: Table Of Contents
USER'S MANUAL T-TOUCH SERIES QUICK GUIDE 1.1 REQUIREMENTS 1.2 INTERFACES 1.3 TYPE OF POWER SOURCE PAPER ROLL CHANGE - S70 / M80 1.5 SWITCHING ON AND OFF 2. GENERAL INFORMATION 2.1 SALES SCREEN 2.2 REAR SCREEN 2.3 ON-SCREEN KEYBOARD 3. OPERATION 3.1 FUNCTIONS 3.2 SALES OPERATION MODE MANUAL ENTRY PRICE / QUANTITY... - Page 4 USER'S MANUAL T-TOUCH SERIES WARNING! 1. Check the voltage before connecting the scale. Use only the correct voltage assigned to avoid damage. 2. Avoid using the scale in hazardous environments. 3. Avoid suddenly or strongly impacting the scale. 4. Avoid submerging the scale in water and in highly humid environments. 5.

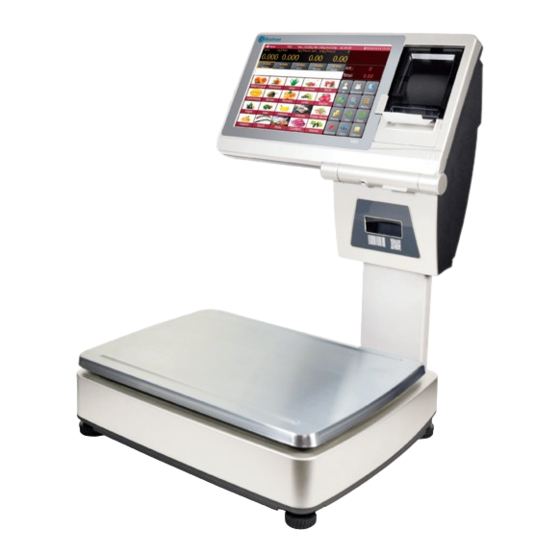

- Page 5 USER'S MANUAL T-TOUCH SERIES INTRODUCTION The touch screen scales S70 and M80 are specially designed for shops, supermarkets, etc. They use a Linux-based operating system with touch screens. Characteristics • Resistive touch screen system. • 8" (S70), 10'' (M80) TFT LCD screen. •...
-
Page 6: Quick Guide
USER'S MANUAL T-TOUCH SERIES 1. QUICK GUIDE 1.1 REQUIREMENTS Check that the power supply has the correct voltage required before use. The mounting location must be a stable surface free of heat, water and moisture. 1.2 INTERFACES RS-232 COM2 M80 Series: RJ-45 RJ-11 USB2... -
Page 7: Type Of Power Source
USER'S MANUAL T-TOUCH SERIES INTERFACE QUANTITY DESCRIPTION RJ11 Cash draw For mouse, keyboard, barcode scanner RJ45 Ethernet RS232 For printers or other supported equipment 1.3 TYPE OF POWER SOURCE M80 Series LOADING CONNECTOR SWITCHING ON S70 Series LOADING CONNECTOR SWITCHING ON... -
Page 8: Paper Roll Change
USER'S MANUAL T-TOUCH SERIES 1.4 PAPER ROLL CHANGE - S70 / M80 Push button to open Lift to open the lid Replace the paper roll Peel off the paper Close Pull out the paper... -
Page 9: Switching On And Off
USER'S MANUAL T-TOUCH SERIES 1.5 SWITCHING ON AND OFF SWITCHING ON Press and hold down the Power key until you hear a "beep", then the scale will start the power up process. SWITCH SHUTTING DOWN Press the key on the main menu, and press "confirm" on the pop-up screen to turn off the equipment SWITCH OFF KEY Note: If you press and hold the "On"... -
Page 10: General Information
USER'S MANUAL T-TOUCH SERIES 2. GENERAL INFORMATION 2.1 SALES SCREEN DISPLAY/ DESCRIPTION INDICATOR Zero Displays the current weighing status Tare Stable Range Displays the weighing range Operator Displays who the active operator is Capacity Displays the capacity, the minimum weight, and the division. Version Displays the software version Power supply... - Page 11 USER'S MANUAL T-TOUCH SERIES Unit price Displays the unit price Total Displays the amount Product Shows the product Sales list Shows sales or vendor summary according to model Category Displays the categories PLU Keys To select the product Active vendor Displays the active vendor and the total number of sales they have made Vendor To select the vendor...
-
Page 12: Rear Screen
USER'S MANUAL T-TOUCH SERIES 2.2 REAR SCREEN DISPLAY/ DESCRIPTION INDICATOR Product To display the selected product Tare To display the tare value Total weight To display the total weight of the product Unit price To display the unit price Total price To display the Total price Advertising To display the desired advertising (See page 43) -
Page 13: On-Screen Keyboard
USER'S MANUAL T-TOUCH SERIES 2.3 ON-SCREEN KEYBOARD The on-screen keyboard will open automatically to edit or enter new data. Back Tab: Use this key to change the field to be filled in. Press to switch to the keyboard for special symbols and numeric keys. Key to close the keyboard Change to Upper-case letter / lower-case letter Press to switch to the main keyboard. -
Page 14: Operation
3.1.1 Switching On During power-up, the scale will first run the operating system displaying T-Touch followed by the BAXTRAN logo. After the scale sets the current weight as a new zero reference, the sales menu is automatically started after entering the user name and password. (Default admin / admin). -
Page 15: Sales Operation Mode
USER'S MANUAL T-TOUCH SERIES 3.2 SALES OPERATION MODE a. Select a salesperson. Press the button to choose the desired salesperson displays the active salesperson for the accumulation Select a vendor from the list. - Page 16 USER'S MANUAL T-TOUCH SERIES SEARCH PLU (PRODUCT LOOK UP) Search for direct PLU: Click on the PLU of the desired category. Use the group/category key to select different product groups or categories. Search for indirect PLU: Click on the button to enter the product search: a) Product search via PLU number b) Product search via alphabetical order.
-
Page 17: Manual Entry Price / Quantity
USER'S MANUAL T-TOUCH SERIES 3.3 MANUAL ENTRY PRICE / QUANTITY When product information is not preset on the scale, click to manually enter the unit price and click Users can also enter the quantity manually to obtain the amount of the un- weighed products. -
Page 18: Remove Accumulated Products
USER'S MANUAL T-TOUCH SERIES AUTOMATIC ACCUMULATION: Use this application to automatically add weight and quantity values. The "operation settings" allow you to select automatic accumulation on loading or unloading. Note: Automatic accumulation must be active, consult Settings> Operation settings> Auto-accumulation >... - Page 19 USER'S MANUAL T-TOUCH SERIES Select the key to delete the selected items. If you have the sales list in the main window (M80), you can press key to delete the previously selected line. Note: items deleted from the sales list may be retrieved. Select the deleted item and click , as the case may be.
-
Page 20: Collection Operation
USER'S MANUAL T-TOUCH SERIES 4) Deleted element selected 5) Deleted element retrieved 3.6 COLLECTION OPERATION 1. Select a vendor to make the collection, 2. press key to print the ticket, or press and hold key to access the billing menu. - Page 21 USER'S MANUAL T-TOUCH SERIES Numeric key To enter the amount paid Debt key To automatically enter the missing amount to be paid To completely delete the amount received before allocating it to a method of payment << To delete the last digit of the amount received before allocating it to a method of payment Delete (TRASH) To delete rows from the sales list or the entire list if none is selected.
-
Page 22: Sales Return
USER'S MANUAL T-TOUCH SERIES Payment transaction: The payment method allows the incorporation of the type of payment, cash/card a) Simple transaction Click on DEBT to automatically charge the amount to be received and select cash or card for one method of payment or another. Different methods of payment Using the numeric keys, enter the partial amount received and assign it to the cash or card option. - Page 23 USER'S MANUAL T-TOUCH SERIES Press and hold a PLU key to edit product information or access the PLU edit screen in the main menu /ID/Product. Click the Edit key to enable editing. Click Save to confirm. NOTE: Editing is enabled for the selected product, to edit another product, press the desired product and the "edit" key. Up and To scroll through the product fields down keys...
-
Page 24: Main Menu Settings
USER'S MANUAL T-TOUCH SERIES 4. MAIN MENU SETTINGS From the sales mode, select the button to access the main menu. If no "DATA" appears on the user interface or has been mis-config- ured due to manipulation, press 4 times in a row in the area indicated in red to access the main menu. -
Page 25: Log In/Log Out
USER'S MANUAL T-TOUCH SERIES To change between €/kg, €/100g and €/250g Price type Print format To select ticket or label formats Logout To end the session with the current user To turn off the system 4.1 LOG IN / LOG OUT To close the session, click Logout and a pop-up screen will appear. -
Page 26: Sales
USER'S MANUAL T-TOUCH SERIES 4.2 SALES Click on the key to enter the sales mode. 4.3 ID SETTING Click the key to enter the database set-up menu. Click the return key to return to the home page. Product list Category Product categories Depart Department... - Page 27 USER'S MANUAL T-TOUCH SERIES Add or edit PLU Arrow keys To go up and down Edit To edit product information Erase To remove products To add new products Return key To return to the main page Save key To save the added information 4.3.1 PRODUCT NOTE: When products are created, they are related to the store number, department and scale so that changing these...
- Page 28 USER'S MANUAL T-TOUCH SERIES Department Select from the list White box To select the product image Unit price Select from list kg, 100g, 250g Note 1-8 For any information pieces Select for non-heavy products Price 7 digits (including decimals) Pre-Tare To enter the pre-tare value Traceability For traceability...
- Page 29 USER'S MANUAL T-TOUCH SERIES 4.3.4 OPERATOR Select the Operator key to add a user. In permissions, choose one as operator or administrator. Operator: only has permission for the sales operation, unless we select the permissions from the list we want to assign him/her.
-
Page 30: Settings
USER'S MANUAL T-TOUCH SERIES 4.4 SETTINGS Note: 1. The settings menu can only be accessed, if you are an administrator or operator who has this permission activated. To access the metrological parameters, you must press the motherboard calibration push-button before you can access the configuration related to the approval. -
Page 31: Basic Information
USER'S MANUAL T-TOUCH SERIES ONCE ON THE MAIN WINDOW PRESS THE BUTTON THE FOLLOWING MENU WILL OPEN: 4.4.1 BASIC INFORMATION 4.4.1.1 USER INFORMATION User information allows you to enter your company address, logo, slogan, store number, department number, scale number, manage header and footer data, etc. - Page 32 USER'S MANUAL T-TOUCH SERIES 4.4.1.2 CURRENCY CONFIGURATION It allows you to select the currency symbol from the drop-down list or the name of the entry currency. Note: Parameter blocked by the certification standard 4.4.1.3 DECIMAL POINT IN PRICE Select the number of decimal digits for the price display. (Parameter blocked by the standard). 4.4.1.4 PRICE DECIMAL POINT MODE Select the desired mode for the operation: FLOATING: The comma or decimal point is placed automatically.
- Page 33 USER'S MANUAL T-TOUCH SERIES 4.4.1.6 TYPE OF TAX Select the desired mode for the operation. Products without, with taxes included, with taxes excluded and if trading with products without an assigned rate of tax, ask us or use a default tax rate automatically. 4.4.1.7 PLU UNIT PRICE MONITORING - Use scale unit price It enables price type mode...
-
Page 34: System
USER'S MANUAL T-TOUCH SERIES 4.4.2 SYSTEM SETTINGS 4.4.2.1 GRAVITY Select the gravity value. (Note: parameter blocked by calibration button) 4.4.2.2 DATE AND TIME It allows us to configure the real time clock according to the local time. Set - Date / Set - Time Setting the date Setting time... - Page 35 USER'S MANUAL T-TOUCH SERIES 4.4.2.3 LANGUAGE Our touch scales allow you to change language. Select the language from the list, the confirmation screen will appear, press OK to confirm or Cancel. If you press OK, the machine will restart with the new language. If the language is not loaded in the scale's memory, the confirmation menu will not appear and no changes will be made.
- Page 36 USER'S MANUAL T-TOUCH SERIES 4.4.2.7 UPDATE SOFTWARE Upload the corresponding file via the USB and press confirm. Note: parameter blocked by the calibration button. 4.4.2.8 SYSTEM INFORMATION The screen shows the versions of the different parts of the firmware and the memory use. 4.4.2.9 DELETE DATABASE The menu allows you to delete products, reports, product images, audios, the entire database and reset the user interface.
-
Page 37: Weight
USER'S MANUAL T-TOUCH SERIES 4.4.2.10 BACK UP AND RECOVERY The menu allows you to choose whether to save the data before shutdown and the periodicity of the backup. As well as backing up at the present time or recovering a previous copy. 4.4.3 WEIGHING SETTINGS This menu allows you to modify the various metrological weight parameters. - Page 38 USER'S MANUAL T-TOUCH SERIES 4.4.4.1 DISPLAYING PRODUCTS It allows you to choose whether or not to display the product image in the sales window. 4.4.4.2 INTERCONNECTION OF THE SCALE This menu allows you to select the operating mode of the scale. By default, without inter-connection the SINGLE scale mode is selected. INTERCONNECTION: It is possible to interconnect up to 32 units by means of a switch, one of them being a master and the rest slave switches.
- Page 39 USER'S MANUAL T-TOUCH SERIES 4.4.4.3 FREE PRICING Select the "ON" option to be able to manually enter the price for each sale operation. Once the PLU has been selected, the numeric keypad will automatically appear to enter the desired price. 4.4.4.4 SAVE PRICE AFTER ACCUMULATION Select the option "ON"...
- Page 40 USER'S MANUAL T-TOUCH SERIES 4.4.4.7 LABELLING MACHINE Selecting ON enables the option of working with an external labeller. 4.4.4.8 AUTO-ACCUMULATION This menu allows you to choose the automatic accumulation mode, "on loading", "on unloading" or "Off" to accumulate manually. 4.4.4.9 PRINT DELETED ITEMS Show or not on the ticket the lines of the deleted products on the accumulation list.
-
Page 41: Calibration
USER'S MANUAL T-TOUCH SERIES 4.4.5 CALIBRATION This menu initiates the equipment’s weight calibration procedure. Follow the steps on the screen. Note: parameter blocked by the calibration button. 4.4.6 COMMUNICATION Configuration of the equipment’s communication ports. INTERCONNECTION / CONNECTION TO PC : If the scale is connected to a switch, the eth0 menu appears. -
Page 42: Previous Screen
USER'S MANUAL T-TOUCH SERIES 4.4.7 REAR SCREEN In this section, we can adjust different parameters and functions of the rear or customer screen. 4.4.7.1 LOGO SETTINGS Use this menu to upload your logo on the customer screen. Format: .png Measurements: S70: 274x74 px M80: 400x150 px Recommended size: <... - Page 43 USER'S MANUAL T-TOUCH SERIES 4.4.7.2 ADVERTISING MESSAGES Enter the banner advertisement below and select the texts you want to be played. 4.4.7.3 REAR DISPLAY MODE Choose the mode of operation of the customer's screen among the options: show image of the selected product (default option), show only advertising images, or show only the account of the selected vendor.
- Page 44 USER'S MANUAL T-TOUCH SERIES 4.4.7.5 SCREEN SAVER Choose the time when the full-screen is activated, when previously selected advertising images will be played back (screen saver). 4.4.7.5 VERSION It displays the firmware version of the customer screen.
- Page 45 USER'S MANUAL T-TOUCH SERIES SETUP MENU OVERVIEW (SETTINGS) MENU SUB-MENU DESCRIPTION BASIC INFORMATION User Company Enter company information, Information For example, if the printing format has headers, these Address will be printed on the ticket Telephone Logo Function reserved for choosing the logo. Slogan Company slogan Shop no.
- Page 46 USER'S MANUAL T-TOUCH SERIES SYSTEM SETTINGS Gravity To adjust the gravity value Date and Time To adjust the date and time Language To configure the language. Backlight To adjust the back-light. Sound To activate or deactivate the buzzer and adjust the vol- ume of the speaker (according to model).
- Page 47 USER'S MANUAL T-TOUCH SERIES OPERATION SETTINGS Visualisation of products To select the visualisation on the sales screen of the product image or just its name. (Depending on user interface configuration) Interconnection of the scale To select the mode of functioning: single or interconnected scale (master/slave) Free price Enables free price modification at each time of weighing...
- Page 48 USER'S MANUAL T-TOUCH SERIES COMMUNICATION Com0 Reserved for the built-in printer Com1 RS232 port, for connection to a printer or other device Com2 RS232 port, for connection to a printer or other device. Eth0 Configuration of the IP address of the scale, for its interconnection.
-
Page 49: User Interface
USER'S MANUAL T-TOUCH SERIES 4.5 USER INTERFACE The default user interface is sent configured, with automatic PLU sorting by category. You can reconfigure the interface to your liking. Examples: How the Interface mode settings work:... - Page 50 USER'S MANUAL T-TOUCH SERIES Description To exit the interface settings menu To delete the selected data key(s). To set the key on all pages. To move a selected key to a specific empty location. To increase the selected key to the right. To increase the selected key downwards.
- Page 51 USER'S MANUAL T-TOUCH SERIES Create custom page Select any key or click "Select All" to select all editable keys and click "Clear" to delete existing keys. You will be asked to confirm Clear, click "Yes" to confirm. All keys that have been selected will be removed from the user interface.
- Page 52 USER'S MANUAL T-TOUCH SERIES By using the keys you can adjust the size of each key. Select a location to add a new key. Select the pages key to add/edit pages and use them as Groups/Categories. To add a group/category search key (plus key), select "More Pages"...
- Page 53 USER'S MANUAL T-TOUCH SERIES Select a programmable location to add a new key and select the Page to choose the page key from the list. “ ” key The selected key will be added to the specific location If necessary, more pages can be added (such as group or category) Select a key to add a new name for the selected product using the search key "...
- Page 54 USER'S MANUAL T-TOUCH SERIES Selection of operation keys Select the key to add specific operation keys from the list. The selectable keys are: Tare, Zero, Back, Search, Print, Cash Box, Paper Feed, Clear, Accumulate, Menu Keys Description Tare Tare key The displayed weight will be stored as a tare value and that value will be subtracted from the measurement, leaving zero on the display.
- Page 55 USER'S MANUAL T-TOUCH SERIES Selection of the type of keyboard Description Standard Standard key mode for labelling. Pre-pack To select the default keys for models with labeller. Accumulation Accumulation labelling mode To select the default keys for the accumulation operation. POS mode keys To select the operation of the POS mode, default keys on scales with ticket printer.
- Page 56 USER'S MANUAL T-TOUCH SERIES Function — Preset In this option you can choose more vendors (V11-V20) and tare keys (T1~T10) *These keys are available according to model Function — Others In this option you can add pop-up messages, either in the form of a box or in the form of an intermittent message. Save Custom Operation Window Once you have finished editing the user interface buttons, click the key to return to the main window.
-
Page 57: Data
USER'S MANUAL T-TOUCH SERIES Click "Yes" to confirm and exit the setting or click "No" to undo all changes and exit. The menu window will be displayed, click on the key to enter the sales mode which can already be done with the new user interface. 4.6 DATA Click on the from the main menu. - Page 58 USER'S MANUAL T-TOUCH SERIES CSV Shop_ID same as for scale configuration "Scale no." CSV branch_id same as for scale configuration "Dept. no." CSV pos_not the same as for scale configuration "Store no." 4.6.1 DATA STORAGE The name of the folder in the USB root: scale_data Folders and sub-folders: “scale_data”...
- Page 59 USER'S MANUAL T-TOUCH SERIES Product Images Folder “image_product” Format: png Resolution: 150x150 ~ 300x300. Size: 50kb ~ 100kb Name: alphanumeric HDMI communication (under development): Resolution: 950x540 or higher Size: 50kb or higher Note: If you use high resolution images, the operation of the scale will be slow and the available space on the FLASH drive will be smaller.
- Page 60 USER'S MANUAL T-TOUCH SERIES Folder for translations. “translation” Folder for audio files "audio_product". Reserved for self-service models. Format: “wav” Bit rate: approximately 1411kbps. Size: 50kb or higher Name: alphanumeric Folder for print format files "format_receipt". Reserved for self-service models. The format files must have the extension .fmt and if they use logos they must be in the same folder in .bmp format The name should appear only with numbers and letters.
-
Page 61: Reports
USER'S MANUAL T-TOUCH SERIES Change prices: Function not currently available; always 0 Discount: Function not currently available; always 0 Tax_num: Type of product taxes Ingredient: Product ingredients Period: Expiry date of the product (by number of days) Recommend: Durability period (by number of days) Label format: : Function not currently available;... -
Page 62: Price Type
USER'S MANUAL T-TOUCH SERIES 4.8 PRICE TYPE key (price type) to change the price mode: €/kg, €/100g, €/250g. We have to have the option selected to use Unit Price scale. Press the 4.9 PRINT FORMAT Press the key (print format) on the main menu to access the selection of ticket or label formats. - Page 63 USER'S MANUAL T-TOUCH SERIES...
