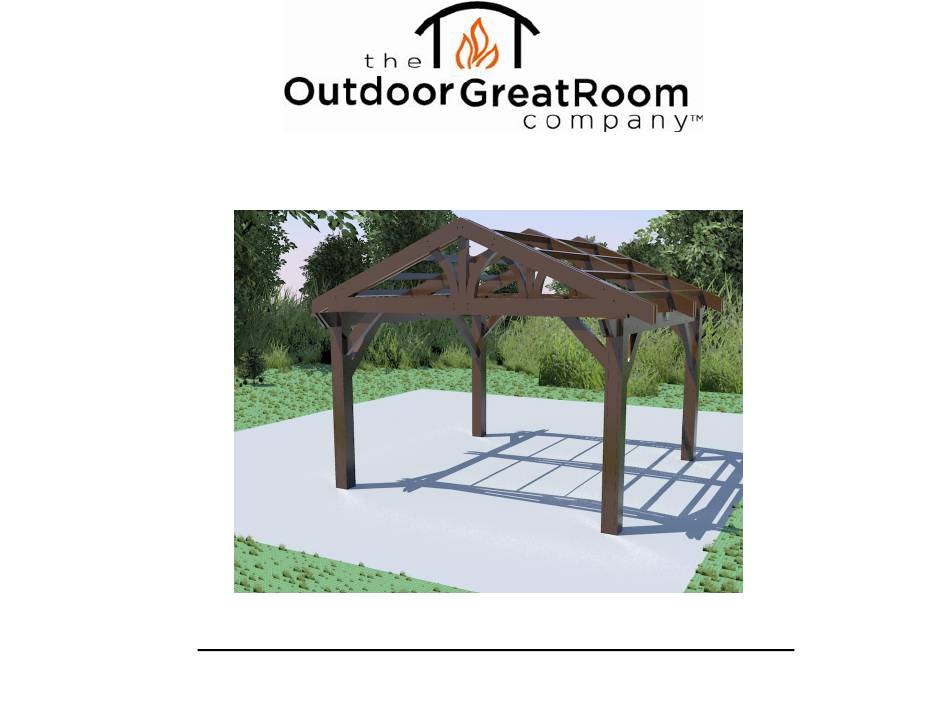

- Page 1 Lodge II Pergola Manual and Installation Instructions Please read these instructions before removing parts from crate...
- Page 2 Introduction Thank you for your purchase from The Outdoor GreatRoom Company. This pergola has been engineered and manufactured in the USA. The purpose of this manual is to make the installation and assembly simpler. Outdoor GreatRoom company recommends visiting with your local authority for building codes, restrictions, or requirements for this product.
- Page 3 Lodge II Pergola Assembly Instructions – Part List (Parts not shown to scale) Foot Washer Lock-washer...
- Page 4 Lodge II Pergola Assembly Instructions – A-Frame Assembly Step 1: IMPORTANT: Parts “B” and “J” exist in two forms. The center A-frames of this pergola require parts “B” and “J” Use construction adhesive and supplied wood screws to assemble in the with pre-drilled screw holes at one end of each beam configuration shown.
- Page 5 Lodge II Pergola Assembly Instructions – A-Frame Assembly Step 3: Assemble as shown. Insert bolts “U” from back side as necessary to hold frame together. Insert additional screws as shown. Screw diagram 3 Step 4: Apply adhesive and bolt assembly from step 1 as shown.
- Page 6 Lodge II Pergola Assembly Instructions – A-Frame Assembly Step 5: Bolt beams “F” into place as shown. This completes assembly of the first outside A-frame. Repeat steps 1-4 to assembly the second outside A-frame. (Note: Center A-frame requires different parts)
- Page 7 Lodge II Pergola Assembly Instructions – Ledger Beam Assembly Step 7: Assemble as shown. Insert bolts for assistance in lining parts up. Glue pieces in place and insert screws from back side. Remove bolts after screws are in place. Screw diagram 4 Step 8: Apply adhesive to parts “D”...
- Page 8 Lodge II Pergola Assembly Instructions – Column Assembly Step 9: Insert feet into column “A” base and fasten with bolt “T” making sure to use a washer, and lock-washer. If feet fit tightly, a rubber mallet may be used to force beams into place.
- Page 9 Lodge II Pergola Assembly Instructions – Main Assembly Step 11 : Lift ledger beams and lower into place on columns with beams “O” facing outward. Step 12: Lift the first A-frame into place on top of ledger beam/column assembly with beams “E”...
- Page 10 Lodge II Pergola Assembly Instructions – Main Assembly Step 13: Insert part “K” into end of A-frame. A rubber mallet may be required if it does not slide in easily. Slide downward until both holes line up. Insert bolts “S” and “V”...
- Page 11 Lodge II Pergola Assembly Instructions – Final Assembly Step 15: Attach Corbels “Q” to each corner as shown using hex-head screws “X” Step 16: Insert crossbeams “P” and fasten through pre-drilled holes with lag bolts “W.” Tighten.
- Page 12 Lodge II Pergola Assembly Instructions – Post Placement and Anchoring Peak height 130”...
- Page 13 Lodge II Pergola Assembly Instructions – Optional Steel Roof If you purchased an optional steel roof system for your Lodge II , use the instructions in this section to assemble your roof. Step 1 : Included in your roof kit: Cut end flashings to the length of roofing ...
- Page 14 Lodge II Pergola Warranty Information Your new Lodge II pergola is warranted against structural defects for a period of three (3) years from the date of purchase. This does not apply to damage caused by excessive loads such as snow or use of roof as storage. Your Lodge II pergola is warranted against defects in finish and other defects not related to structure for a period of one (1) year from the date of purchase.
