Artesyn Embedded Technology ATCA-7370 Quick Start Manual

ATCA-7370
Quick Start Guide
P/N:6806800P66B (June 2014)
1
What's in the box?
Make sure you receive all items of
your shipment:

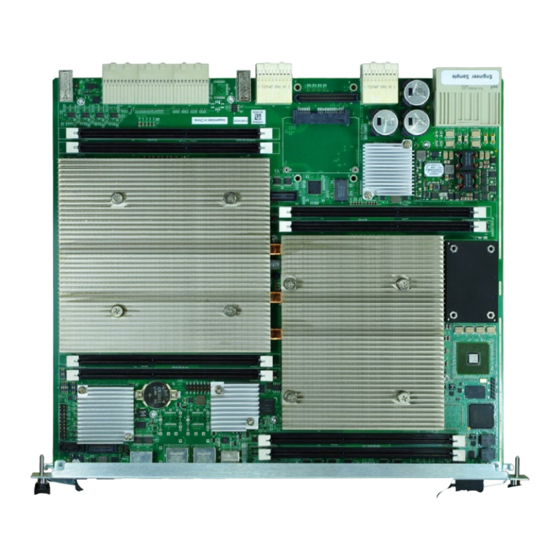

• ATCA-7370 blade
• Other items that were ordered
• Printed Safety Notes
When installing or servicing the
module or accessories, strictly
observe the safety precautions
in the Safety Notes. Otherwise,
personal injury or property dam-
age may occur.
2
Observe ESD-safe
measures
• Use either a properly grounded ESD
wrist strap or make sure that you are
working in an ESD-safe environ-
ment.
• Connect to the ESD connector at the
front or the rear of the system.
3
Prepare the installation
site
• For information on the environmen-
tal and power requirements, see the
ATCA-7370 Installation and Use man-
ual.
• Operating temperatures refer to the
temperature of the air circulating
around the blade and not to the
actual component temperature.
4

Install the DIMM

Notes:
• Some blade variants come with the
DIMM already installed.
• When installing DIMM memory
modules, the DIMM sockets farthest
away on each memory channel from
the CPU device need to be popu-
lated first.
• For thermal reasons, no 4-rank
DIMMs and no dual-die DIMMs are
allowed.
1. If necessary, remove the blade from
the system.
2. Open the locks of the memory mod-
ule socket.
3. Press the memory module carefully
into the socket.
As soon as the memory module is
fully inserted, the locks automati-
cally close.
4. If necessary, repeat steps 2–3 to
install additional memory modules.
