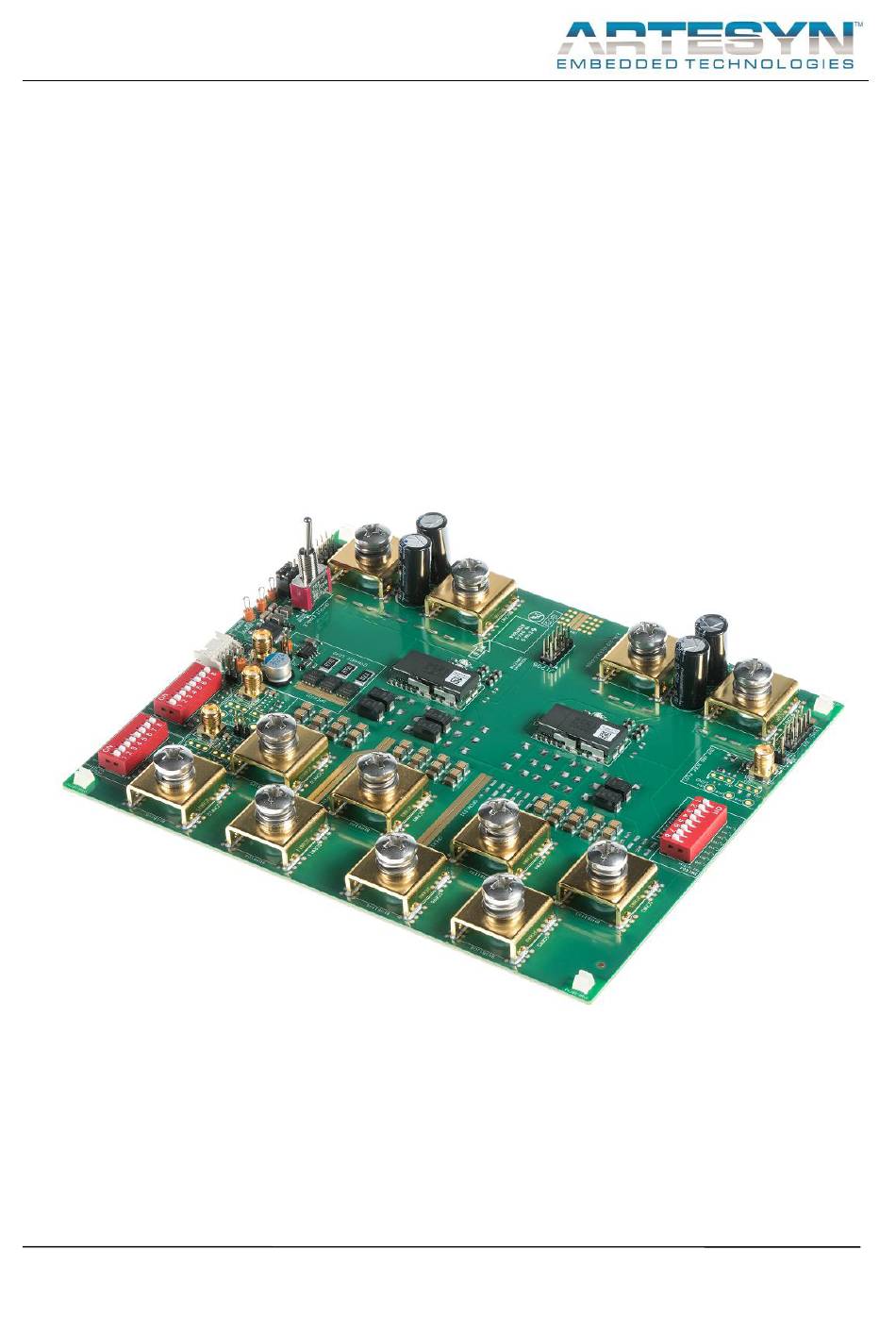

- Page 1 LGA50D Evaluation Board User Manual LGA50D JLPJ and JLP1J Evaluation Board User Manual Artesyn Embedded Technologies LGA50D Evaluation Board December 2018 Page 1 of 18...
-
Page 2: Table Of Contents
LGA50D Evaluation Board User Manual TABLE OF CONTENTS TABLE OF CONTENTS ..............................2 GENERAL ..................................3 ..............................4 QUIPMENT REQUIRED ................................5 EFAULT SETTINGS COMPONENT IDENTIFICATION ..........................6 OPERATION ..................................7 ................................ 7 OWER UP SEQUENCE ............................. 11 DDITIONAL INFORMATION ................................ -
Page 3: General
LGA50D Evaluation Board User Manual GENERAL The LGA50D evaluation board (LGA50D-EVAL-KIT-JLPJ, Revision AU) allows the user to test and investigate the performance of the LGA50D non-isolated module. Within the kit there are the following items: The evaluation board equipped with 2 LGA50D modules The Artesyn PMBus interface dongle The PMBus to USB interface cables Fig. -
Page 4: Equipment Required
LGA50D Evaluation Board User Manual Equipment required To run the evaluation board, the following equipment will be required to supply power to the board, apply load to the board, and to cool the dc-dc converters if the board is to be operated for long periods. -
Page 5: Default Settings
LGA50D Evaluation Board User Manual Default settings The evaluation board has been supplied with the following configuration and set-up by default. If no changes are made to the hardware and firmware configuration of the unit then, the user will see that this board is equipped with 2 LGA50D modules with the following voltage settings: 1 module is configured for a single output o Output voltage setting is 1.2V via the dip switches on the PCB... -
Page 6: Component Identification
LGA50D Evaluation Board User Manual COMPONENT IDENTIFICATION The key components and connection locations are shown in the picture of the evaluation board below. Note that the LGA50D shown at the ‘top’ of this picture is the one that is configured as the single output unit, and the ‘bottom’... -
Page 7: Operation
LGA50D Evaluation Board User Manual OPERATION Here are the instructions to power up the PCB and modules. Power up sequence To power up and configure the evaluation card, please follow the steps as described below. 1. Initial set position of the enable switch Please make sure the OUTPUT ENABLE toggle switch (S201) is in the “disable”... - Page 8 LGA50D Evaluation Board User Manual 2. Connection and configuration Connect the input and output cables to the M6 terminations of the PCB. Then connect the following: a. Connect the Vin1 and Vin2 connections to the DC power source with a voltage setting in the range of 7.5Vdc to 14Vdc b.
- Page 9 LGA50D Evaluation Board User Manual 3. Connection of the I C dongle to I C connector This is the interconnect cable between your PMBus dongle and the evaluation PCB. It is polarized and will only fit into the connected in 1 orientation The other end of this cable should be plugged into your dongle.
- Page 10 LGA50D Evaluation Board User Manual 5. Power up sequence To enable the DC-DC converters to work now that all connections to and from the evaluation board have been applied, take the following steps: Apply the input voltage to Vin1 and Vin2 Operate the toggle enable switch (S201) so that the toggle is leaning toward the input connections and away from the output connections.
-
Page 11: Additional Information
LGA50D Evaluation Board User Manual 6. The Power down sequence To disable the outputs from the evaluation board, please take the following steps: • Toggle Enable switch to disable Vout • Turn off main voltage to Vin1 and Vin2 Note that not following power up/down sequence may damage the evaluation board. Additional information 1. - Page 12 LGA50D Evaluation Board User Manual 2. Enabling each output The outputs of the individual converters can be enabled or disabled by populating and de- populating the enable jumpers as required. Fig. 9 – The enable jumpers – all 3 shown in place to enable all 3 outputs If the enable signal is bouncing during enable and disable, a 0.1uF 0603 capacitor can be added at C211, C212 and C213 for monotonic signal.
-
Page 13: Test Functions
LGA50D Evaluation Board User Manual Test functions The evaluation board is also equipped with test points to provide easily accessible voltage measurement points. 1. Vin and Vout sense locations Accurate input and output voltage measurements via pin-headers can be found on J205 and J1205. - Page 14 LGA50D Evaluation Board User Manual 2. Ripple and regulation measurement locations There are 3 test points provided to give accurate measurements of the output noise and ripple from the LGA50D. The mating connector to the SMA connector found on the Evaluation board can be defined as “A Straight Cable Mount SMA Connector, Plug, Crimp Termination type RG174U”.
- Page 15 LGA50D Evaluation Board User Manual • J403 Point of Measurement for Vout-1 ripple • J401 Point of Measurement for Vout-1 regulation Fig. 14– Ripple and regulation measurement point for Vout-1 3. Errata Fig. 15 J1206 silk screen Note; The silk screen on the demo-PCB is missing on J1206.The silk screen is shown on the right in the figure above.
-
Page 16: Appendix A - Silk-Screen Layer Of The Evaluation Board
LGA50D Evaluation Board User Manual Appendix A – Silk-screen layer of the evaluation board Artesyn Embedded Technologies LGA50D Evaluation Board December 2018 Page 16 of 18... -
Page 17: Document Revision History
LGA50D Evaluation Board User Manual DOCUMENT REVISION HISTORY DATE DESCRIPTION REMARKS 10Jan2019 First release Artesyn Embedded Technologies LGA50D Evaluation Board December 2018 Page 17 of 18... -
Page 18: Contact For Technical Support And Information
LGA50D Evaluation Board User Manual Contact for Technical Support and Information Americas Phone: +1 888 412 7832 or +1 407 241 2752 Email: techsupport.embeddedpower@emerson.com Availability: 8am to 8pm (EST) Asia Phone: 400 8899 130 (in China) and +86 29 88836505 (outside China) Email: TSXA.embeddedpower@emerson.com Availability:...
