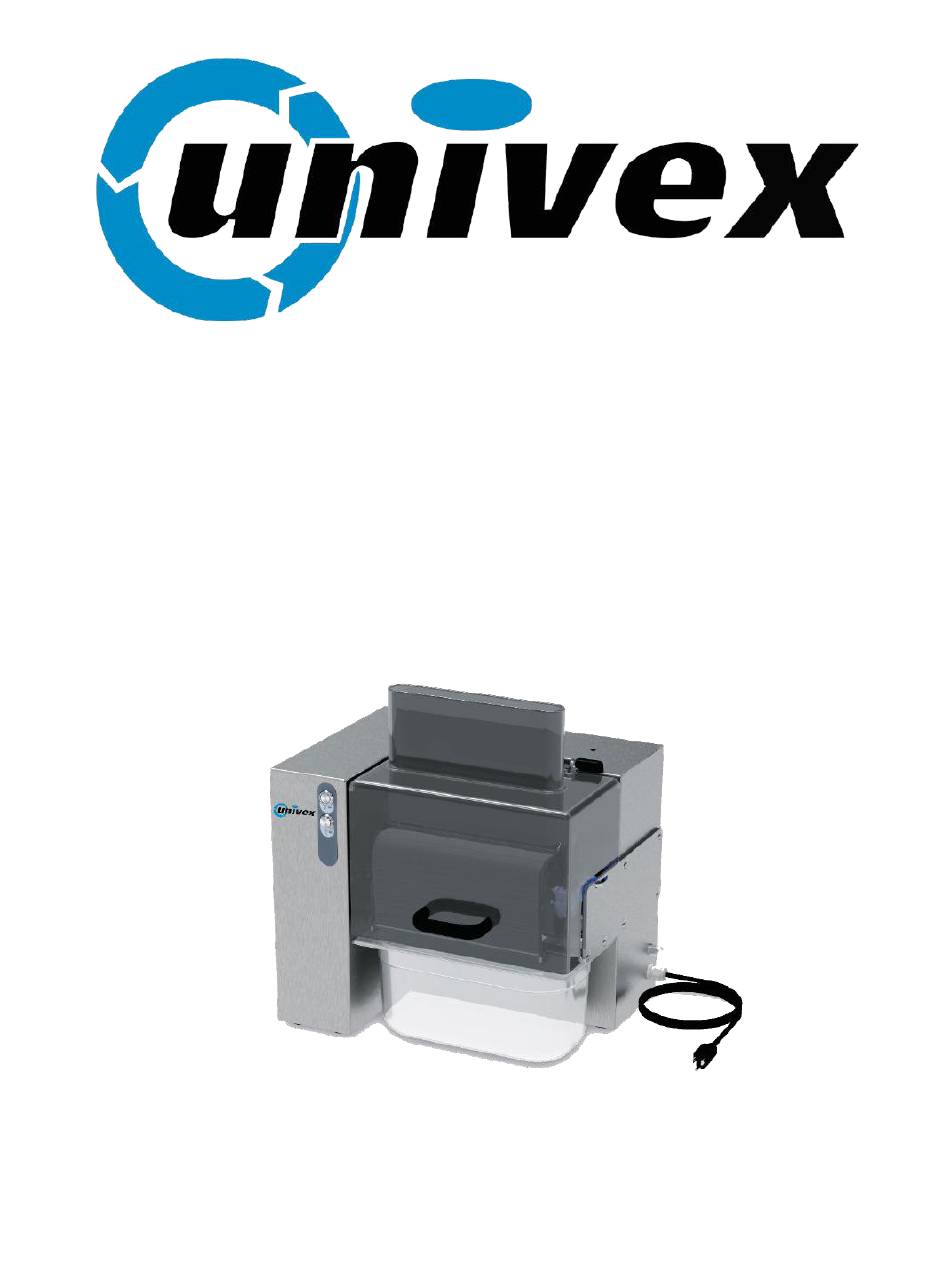

- Page 1 MT975 Meat Tenderizer/ Strip Cutter Operator Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Delivery and warranty 1.1 Foreword 1.2 Storing and using this manual 1.3 Warranty 1.4 Machine description 1.5 Intended use 1.6 Improper use 1.7 Specific equipment details 1.8 Guards and safety devices 1.9 Work position 1.10 Vibrations 1.11 Environmental conditions 1.12 Lighting 1.13 Safety equipment... -
Page 3: Delivery And Warranty
1 - Delivery and warranty 1.1 - Foreword CAUTION! The symbols used in this manual draw the reader’s attention to points and operations that are hazardous to the operator’s personal safety or that risk damaging the machine. Do not use the machine unless you have read and properly understood these notes. -
Page 4: Intended Use
hygiene. The blade rollers can be rapidly dismantled for quick cleaning. Ventilated motors offering the following advantages: extremely constant performance and long motor life; longer actual work time thanks to fewer interruptions; low level of heating so that the processed meat stays constantly fresh and unaltered. -
Page 5: Guards And Safety Devices
F = Amperage G = Year of manufacture H = Serial no. I = Manufacturer L = Barcode Fig. 1.7.1 CAUTION! Do not alter the data on the rating plate for any reason. 1.7.1 - Warning and danger signs (Fig. 1.7.2) CAUTION! Do not intervene on the electrical components when the machine is connected to the mains power supply. -
Page 6: Work Position
1. Cover for tools with loading mouth 2. Casing 3. Machine controls 4. Tray for collecting the processed product Fig. 2.1.1 2.2 - Technical specifications Power Power source Revolutions Rollers length watt/hp V/Hz MT975 370/0,5 120/60 2.3 - Machine dimensions and weight... -
Page 7: Noise Level Emitted
weight MTS975 2.4 – Noise level emitted The readings of the noise levels emitted by the machine indicate that the equivalent noise level is below 70 dBA. On request, the manufacturer can provide a copy of the noise test. 2.5 - Wiring diagrams 2.5.1 - Single-phase wiring diagram... -
Page 8: Controls And Indicators
3 - Controls and indicators 3.1 - List of controls and indicators Fig. 3.1.1 1 - Run button - Press to start the machine. 2 - Stop button Press to stop the machine. 3 - Start button LED - Lights up when the start button is pressed. 4 - Factory testing, shipping, delivery and installation 4.1 - Factory testing The machine you have purchased has been tested at our plants to verify its correct... -
Page 9: Electrical Connections
CAUTION! Take care when handling the machine: dropping it accidentally can seriously damage it. To avoid muscle injuries, lift the machine by flexing your legs. 4.4 - Electrical connections CAUTION! Check that the power supply line has the same specifications as those shown on the machine’s rating plate. -
Page 10: Preparing The Blade Cartridge
6.2 - Preparing the blade cartridge The machine can be configured with 2 different meat processing rollers: 1 - Tenderising rollers 2 - Cutting rollers - The “tenderising” system is made up of star-shaped blades (Fig. 6.2.1) that penetrate the meat and curt the nerves so as to make it more tender. -
Page 11: Malfunctions And Remedies
The safety devices are not all Check the safety devices present or mounted properly The product is not cut The knives of the blade roller Sharpen the knives or correctly are blunt replace them Univex Corp. 3 Old Rockingham Road Salem, NH 03079 USA info@univexcorp.com...
