Wouxun KG-UV9PX Quick Start Manual

Thank you and congratulations for purchasing this updated,
advanced HAM Two-Way Radio & SHTF Scanner.
The WOUXUN KG-UV9PX, a new entry in the famous KG-UV9-Series,
is built upon the trusted performance, proven design, and quality
manufacturing of the KG-UV9D(Plus) & KG-UV9P amateur radios.
It has been updated to deliver improved commercial grade personal
hobby, EmComm, and SHTF communications & scanning.
COMPLIANCE
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with PART 15B of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND
FEDERAL LAW.
FCC Regulatory Conformance
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy. If
not installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. Verification of harmful
interference by this equipment to radio or television reception can be determined
by turning it off and then on. The user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Do not transmit without an antenna attached, with a damaged
antenna, while touching the antenna, around explosives, or while refueling a
vehicle. Operate only with batteries & chargers designed for this radio.
–– Main Features
NEW: 3 Dark Color Display Modes • Priority Channel Quick-Jump
1.25m "220 Band" RX • Scan Advance • Bright Flashlight • Stiff Knobs
999 Memory Channels • Analog TDR Superheterodyne Dual-Band FM • FPP
Pre-Programmed for HAM + SHTF • 3 Power Levels • Dual-PTT • DTMF Keypad
Simplex & Repeater Capable • Cross-Band Repeater • 7-Band RX w/AM AIR Band
Broadcast FM Radio w/20 Memories • 3 Scan Modes • 10 Scan Groups • BCL
Dual Simultaneous Channel & VFO/Frequency Scanning • Duplex Operation
Priority Scan • Single & Dual-Watch Modes • Wide & Narrow BW • VOX
Repeater Reverse & Talk-Around • CTCSS/DCS Search/Scanning • Stopwatch
155 Split CTCSS/DCS PL Tones/Codes • Sub-Receiver Muting • Dual Indicator LEDs
3 Programmable Function Side-Keys • Manual & Auto Key/PTT Lock • Key Beeps
2.5 kHz Tuning Steps • Backlight Timer • ANI PTT-ID • Time-Out-Timer w/Alert
Voice Announce • 8-Character Alpha Names • 10 Squelch Levels • Battery Saver
Squelch Monitor • Squelch Tail Eliminator • 3 Speaker Muting Modes
Battery Voltage Meter • 8" HAM-Tuned Antenna • FCC Part 15B Certified
Emergency RESET (Default 29-Channel HAM + NOAA Configuration)
–– Feature Additions & Improvements
The following features have been added, modified or improved upon
over the original KG-UV9D (Plus) & KG-UV9P amateur radios, which the
KG-UV9PX is based on.
Power Levels: Low = 2 Watts | Mid = 5 Watts | High = 8+ Watts
•
• Scanning Advance: For the first time in the 9-Series amateur radio line, if
you encounter an unwanted signal while scanning in TO/CO Scan Modes,
you can use the Channel Knob or ▲▼ keys in either direction to
immediately advance/resume scanning. See Scanning section for details.
• Bright Flashlight: The KG-UV9PX has a new, brighter LED flashlight with
a tighter, more usable beam.
• Stiff Knobs: The channel and volume knobs now have additional washers
that provide more resistance, to help avoid accidental changes.
Pre-Programed for HAM + SHTF: The KG-UV9PX now comes pre-
•
programed with 850+ channels, including HAM FM Calls, many HAM
simplex freqs., a host of general and SHTF receive-only channels such as
NOAA Weather stations, GMRS/FRS, MURS, MMS (Marine), AIR (Aviation),
AAR (Railroads), and various federal emergency and agency frequencies.
• Usable Menu RESET ALL: The radio now defaults to 29 usable channels
after a Menu RESET ALL. See the Default Channel Programming Chart.

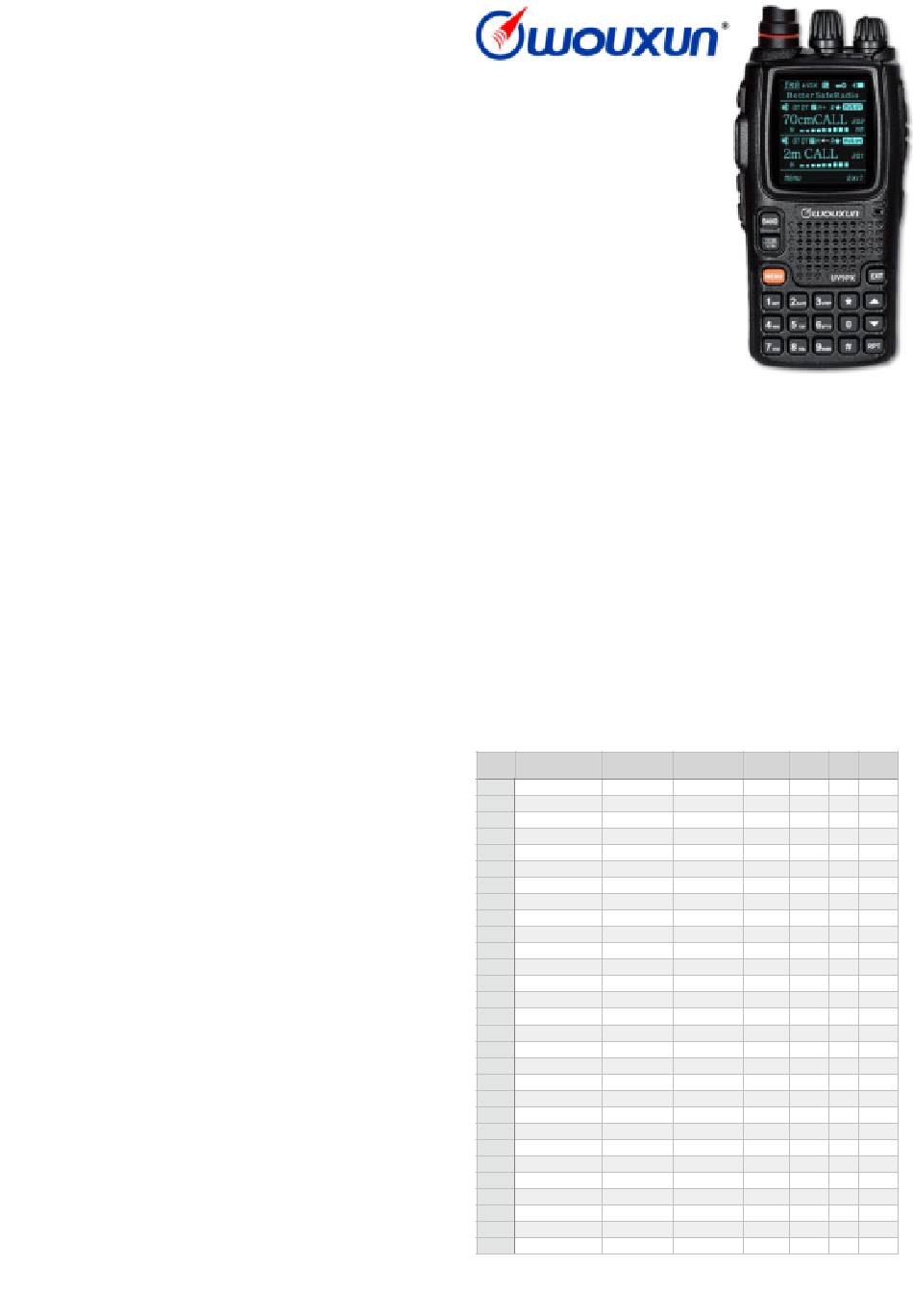

KG-UV9PX HAM
Two-Way Radio
Transceiver & Scanner
FCC PART 15B Certified / 97 Compliant
FCC ID: WVTWOUXUN23
FCC PART 97 Warning
This device operates on ARS (Amateur
Radio Service) frequencies, which require
an FCC (Federal Communications
Commission) license. You must be
licensed prior to transmitting on these
frequencies. Serious penalties could
result for unlicensed use of ARS
frequencies in violation of FCC rules, as
stipulated in the Communications Act's
Sections 501 and 502 (amended). You
will be issued a call sign by the FCC,
which should be used for station
identification when operating the radio
on ARS frequencies. You should also
cooperate by engaging in permissible
transmissions only, avoiding channel
interference with other ARS users, and
being prudent with the length of your
transmission time. To obtain a license
or ask questions about the license
application, contact the FCC at 1-888-
CALL-FCC or go to the FCC's website:
https://www.fcc.gov and request form
605.
1
–– Default Channel Programming Chart
The following factory/default channels are restored after performing a
RESET ALL function [MENU 61_RESET | ALL]. (custom SHTF prog. avail.)
#
CH CH Name RX Freq.
001 2m CALL 146.52000 146.52000 100.0
002 70cmCALL 446.00000 462.58750 100.0
003 220 CALL 223.50000
004 H3 C2.50 902.50000
005 H3 C6.50 906.50000
006 H3 C7.50 927.50000
021 H2 P6.42 146.42000 146.42000 100.0
022 H2 S6.49 146.49000 146.49000 100.0
023 H2 S6.53 146.53500 146.53500 100.0
024 H2 W6.55 146.55000 146.55000 151.4
025 H2 T6.56 146.56500 146.56500 151.4
026 H2 S7.42 146.42000 146.42000 100.0
041 H4 S1.10 441.10000 441.10000 100.0
042 H4 P6.03 446.03000 446.03000 100.0
043 H4 S6.10 446.10000 446.10000 100.0
044 H4 S6.50 446.50000 446.50000 100.0
061 ISS Dx 145.80000 144.49000
062
ISS Rpt 145.80000 437.80000
981
NOAA WX1 162.55000
982
NOAA WX2 162.40000
983
NOAA WX3 162.47500
984
NOAA WX4 162.42500
985
NOAA WX5 162.45000
986
NOAA WX6 162.50000
987
NOAA WX7 162.52500
988
NOAA WX8 161.65000
989
NOAA WX9 161.77500
991
MMS 16EM 156.80000
992
AIR EM (AM) 121.50000
H3 = 23cm HAM H2 = 2m HAM H4 = 70cm HAM C = CALL P = Prepper
S = Simplex W = WeatherChasers T = T-Hunt ISS = Intl. Space Station
NOAA = Natl. Weather Service MMS = Maritime Marine AIR = Aviation
Station ID
Your amateur radio call sign
must be transmitted using
voice in the English language,
or with International Morse
Code telegraphy using an
audible tone: (a) Following a
single transmission or a
series of transmissions; and
(b) After 10 minutes and at
least once every 10 minutes
thereafter during a series of
transmissions lasting more
than 10 minutes.
TX TX BW
TX Freq. W/N Scan
CTCSS PWR
H W
H W
100.0 W
100.0 W
100.0 W
100.0 W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
W
W
W
W
W
W
W
W
W
W
W
W
W
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
