Security control panel
FLEXi SP3
User manual
(FLEXi SK232LCD keypad)
September 2021
www.trikdis.com
UAB Trikdis Draugystes g. 17, LT-51229 Kaunas, Lithuania +370 37 408 040
info@trikdis.lt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEXi SP3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trikdis FLEXi SP3

Summary of Contents for Trikdis FLEXi SP3

  • Page 1 Security control panel FLEXi SP3 User manual (FLEXi SK232LCD keypad) September 2021 www.trikdis.com UAB Trikdis Draugystes g. 17, LT-51229 Kaunas, Lithuania +370 37 408 040 info@trikdis.lt...
  • Page 2 FLEXi SP3 user manual Attention! Read this user manual carefully. A representative from the company installing the alarm system will explain which functions of the FLEXi SP3 security module must be activated to ensure proper protection of the premises. Copyright ©...

  • Page 3: Table Of Contents

    FLEXi SP3 user manual Contents ABOUT YOUR ALARM SYSTEM ............................4 MAIN TECHNICAL SPECIFICATIONS ..........................4 POWERING THE EQUIPMENT............................4 GENERAL OPERATION OF THE ALARM SYSTEM ......................4 ............................. 4 RANSMISSION OF ALERT MESSAGES ............................5 LARM SYSTEM OPERATION MODES ............................

  • Page 4: About Your Alarm System

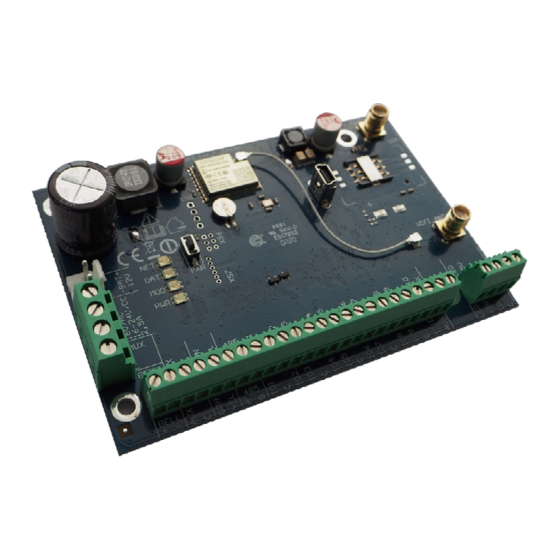

    About your alarm system The FLEXi SP3 control panel is part of a premise security and fire alarm system. It performs sensor signal processing and signalizer control and has integrated GSM and WiFi modems that can transmit alert messages to the central monitoring station and to users’...

  • Page 5: Alarm System Operation Modes

    User code – a four-digit combination for arming/disarming the alarm system and for temporarily bypassing security zones. It is recommended to assign every user a personal alarm control code. The memory of the FLEXi SP3 module can store up to 40 user codes;...

  • Page 6: Additional Functions

    Up to 8 temperature sensors DS18B20, DS18S20 or one temperature and humidity sensor AM2301 can measurement be connected to the FLEXi SP3 module. Intervals of permitted temperatures can be set for each of them individually. If the temperature changes beyond the set interval, an event message will be formed and sent to users.

  • Page 7: Quick Arming/Disarming Of The Alarm System

    FLEXi SP3 user manual Button Description 1, 2 ...9, 0 Buttons for entering numbers. Button for exiting modes and clearing values. Button for confirming the specified choice. Button for turning on full security mode ARM. SLEEP Button for turning on SLEEP mode.

  • Page 8: Arming The Alarm In Sleep Mode

    FLEXi SP3 user manual 2. Enter the [User code] using the keypad. 3. Press the buttons with the numbers of the partitions you want to control. 4. Confirm your selection by pressing the [OK] button. 5. The following text will appear on the keypad screen: Stay: Area.

  • Page 9: Temporary Zone Bypass (Bypass Function)

    FLEXi SP3 user manual 5.7 Temporary zone bypass (Bypass function) To switch on the Bypass function: 1. Press the keypad button [MENU]. 2. Press the [2] button on the keypad. 3. Enter the [User code]. 4. Enter the two-digit numbers of the zones that you want to bypass.

  • Page 10: Programming User Control Codes

    FLEXi SP3 user manual Trouble descriptions Trouble group Description of selected group [1]: Wireless zone battery [2]: Power trouble [1] Low/No Battery [2] AC lost [3] AUX trouble [3]: Bell trouble [4]: Communication trouble [5]: Zone tamper [8]: Clock loss...

  • Page 11: Deleting User Codes

    FLEXi SP3 user manual 5.12.5 Deleting User codes To delete existing User codes: 1. Press the [ ] button on the keypad. 2. Enter the 6-digit [Administrator code]. 3. Enter the desired two-digit user serial number. 4. Press the [SLEEP] button.

  • Page 12: Setting The Temperature

    FLEXi SP3 user manual 3. Press the [6] button. 4. Press the [1] key to select the Dark keypad screen background, or press the [2] key to select the Light keypad screen background. 5. Confirm your selection by pressing the [OK] button.

  • Page 13: Control Using Phone Calls

    PGMx output. Call the number of the SIM card inserted into the FLEXi SP3 security control module. If the phone number you are calling from is specified in the module‘s memory, the control panel will answer the call and you will have to enter the control command (see control command table).
  • Page 14 FLEXi SP3 user manual Command Data Description Turn off an output, “x” is the output number. E.g.: OUTPUT1 123456 OFF PULSE=ttt Turn on an output for a specified time - “x” is the output OUT number and “ttt” is a three-digit number that specifies pulse time in seconds.
  • Page 15 FLEXi SP3 user manual Information about the protected object Fill in the following tables. Keep this document in a safe location. Access codes Your Administrator code is ______________________________ Other access codes: Code Control key No. Code Control key No. Zones...
  • Page 16 FLEXi SP3 user manual Zone Protected space Zone type Temperature sensors Sensor Serial number Controlled space Max. temperature Min. temperature www.trikdis.com September 2021...
  • Page 17 FLEXi SP3 user manual Emergency call buttons Panic __________________________ Alarm system __________________________ Ambulance __________________________ Time intervals Time for entering _________________________ sec. Time for exiting _________________________ sec. Siren operation time _________________________ sec. Additional information ______________________ ____________________ __________________ (name) (phone number) (password)
