Stayton Media
Tables
AFCAF = Caffè finish
Model #
3460AFCAF
Stayton Media

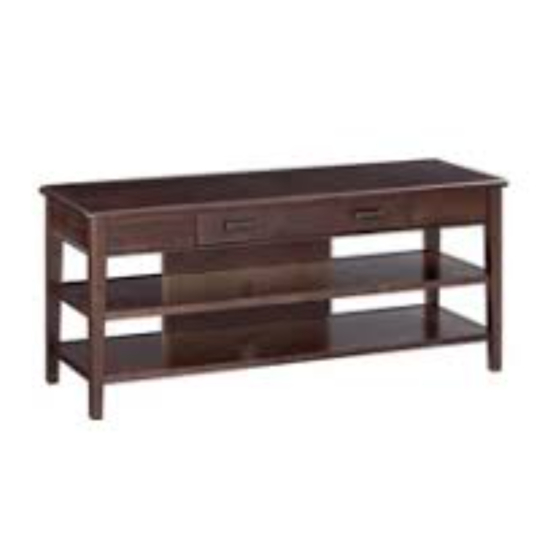

Console
3462AFCAF
Stayton Media
Center
Congratulations!
This fine piece of furniture will make a gorgeous addition to
your home. For the best results, read the Assembly
Instructions before you begin your project.
Service Policy: We will replace any part that is defective,
missing or damaged during assembly. For a replacement
part, directly contact Whittier Wood Products customer
service department by phone, fax, mail or email.
Hours: Our friendly customer service staff can be reached
Monday-Friday 7:00 a.m. to 5:00 p.m. (Pacific Time). You
may leave a message 24 hours a day, seven days a week.
800-653-3336 • Outside the U.S. or Canada: 541-687-0213 • Fax: 541-687-2060
CALL US FIRST! Do not return this item to the store
www.whittierwood.com • P.O. Box 2827 • Eugene, Oregon 97402, U.S.A.
P.O. Box 2827
Eugene, OR 97402 USA

IMPORTANT NOTES:

For normal household use only. Not recommended for
commercial use.
Do not climb, sit or stand on this piece of furniture.
Unload items before you move this unit.
Do not overload the drawer or shelves.
Before you load or move this unit, tighten all screws and
supports.
Before you begin your project, completely read the
Assembly Instructions.
Store this item: 1- in its box; 2- in a dry place; 3- in
temperatures that range from 40°F to 90°F (not on a cold
and possibly damp cement floor).
Periodically inspect your furniture for any loose glue
joints, screws or any other problem that might affect the
stability of your furniture. Tighten or repair as needed.
Serious or fatal crushing injuries can occur from
furniture tip-over. To help prevent tip-over:
Place heaviest items in the bottom drawers.
Unless specifically designed to accommodate, do not
set TVs or other heavy objects on top of this product.
Never allow children to climb or hang on drawers, doors
or shelves.
Never open more than one drawer at a time.
Use of tip-over restraints may only reduce but not
eliminate the risk of tip-over.
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
To Order: Provide the finish and furniture model number
(upper portion of this page), the part letter, production
code, quantity needed, reason for replacement and your
full name, address and telephone number.
Parts ship from our Eugene, Oregon factory within one or
two business days from the time we receive your request.
Please allow five to ten business days for delivery.
Production Code:
VN
WARNING
04/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stayton 3460AFCAF and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Stayton 3460AFCAF

  • Page 1 For a replacement (upper portion of this page), the part letter, production part, directly contact Whittier Wood Products customer code, quantity needed, reason for replacement and your service department by phone, fax, mail or email.
  • Page 2 3460AFCAF Stayton Media Console; 3462AFCAF Stayton Media Center Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Quantity Part Description 3460AFCAF...
  • Page 3 3460AFCAF Stayton Media Console; 3462AFCAF Stayton Media Center Assembly Instructions Tools Required: Phillips Screwdriver, 9/16" or Adjustable Wrench, Rubber Mallet or Padded Hammer Remove the Drawer (F) from the Top Assembly (A). To remove the drawer, pull up on the left side of the Drawer Release Lever while pushing down on the right Drawer Release Lever.
  • Page 4 3460AFCAF Stayton Media Console; 3462AFCAF Stayton Media Center Assembly Instructions Rotate the Top and Leg assembly so that is sets on the back legs. Turn the Lower Shelf Assembly (C) and the Upper Shelf Assembly (D) bottom-side-down and place the dowels into the dowel holes in the Legs.
  • Page 5 3460AFCAF Stayton Media Console; 3462AFCAF Stayton Media Center Assembly Instructions Attach the legs to the Top Assembly with 5/16" Flat Washers (P) and 3/8" x 2-1/2" Hex Bolts (R) See Figures 5 and 5a. Fig. 5a Fig. 5 Turn the unit onto its top and using the pocket holes as guides, secure the Lower Shelf Assembly (C) and the Upper Shelf Assembly (D) to the Legs (B) with eight #8 x 1-1/4"...
  • Page 6 3460AFCAF Stayton Media Console; 3462AFCAF Stayton Media Center Assembly Instructions Lay the unit with the drawer opening face down. The back apron of the Top Assembly has pre- punched location holes. Place the Back Assembly (E) with the horizontal cleat of the top edge against the back apron of the Top Assembly.
  • Page 7 3460AFCAF Stayton Media Console; 3462AFCAF Stayton Media Center Assembly Instructions 10. Tipping restraint: Locate two studs in the wall behind the unit. Attach a Clip (T1) to one wall stud with two #8 x 2" Black Screws (T3). See Figure 10a. Attach a second clip to the unit with two #6x5/8"...
