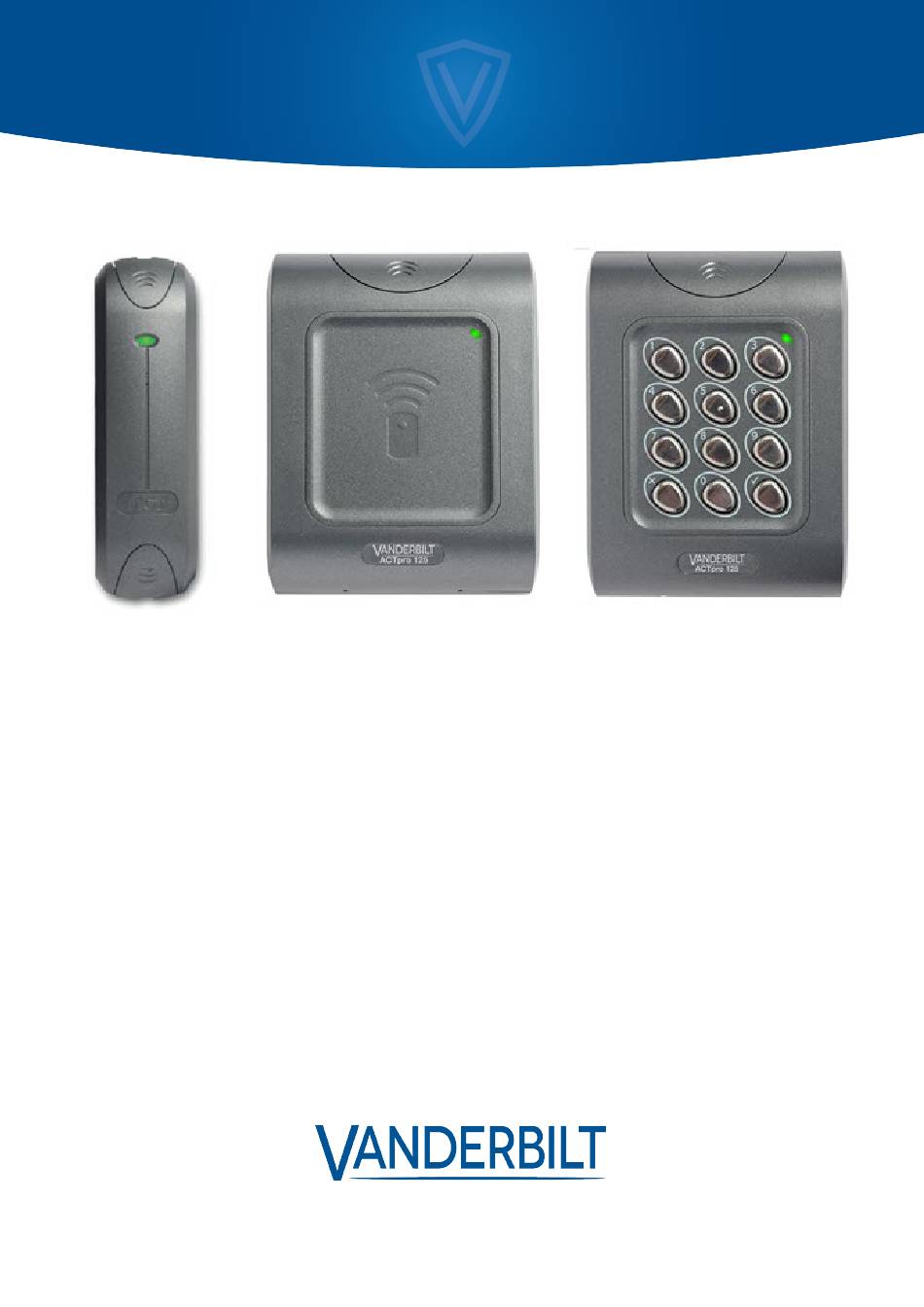

- Page 1 ACTpro Readers Installation Guide Document ID: A-100505 Edition date: 31.05.2018...
- Page 2 Hereby, Vanderbilt International (IRL) Ltd declares that this equipment type is in compliance with the following EU Directives for CE marking: •...
-
Page 3: Table Of Contents
1 Overview 1.1 Product description 1.2 Technical specification 1.3 Reader connections 1.3.1 ACTpro EM1040/EM1050/EM1060 1.3.2 ACTpro EM1030 1.3.3 CAT5/6 colour code 1.4 Wiring for ACTpro 1.4.1 Clock & Data entry reader 1.4.2 Clock & Data exit reader 1.4.3 Wiegand entry reader 1.4.4 Wiegand exit reader... -
Page 4: Overview
ACTpro RFID readers are 125Khz readers that support all ACT RFID cards and fobs and HID-compatible tokens. Compatible with Vanderbilt RFID cards and fobs. Compatible with HID Clock and Data and Wiegand cards/fobs. Features a buzzer and an LED indication. -
Page 5: Reader Connections
1.3 Reader connections 1.3.1 ACTpro EM1040/EM1050/EM1060 5-12V DC 0V/GND Data/D0 RED LED CLOCK/D1 GREEN LED SENSE BUZZ CTRL EM1050/EM1060 Backlight Select Top PINS = Backlight On Bottom PINS = Backlight Off A-100505 © Vanderbilt 2018 31.05.2018... -
Page 6: Actpro Em1030
ACTpro Readers – Installation Guide Overview 1.3.2 ACTpro EM1030 EM1030 is supplied with 3m pigtail cable. SENSE (White) RED LED (Brown) CLOCK/D1 (Green) GREEN LED (Yellow) DATA/D0 (Blue) Buzzer (Orange) +12V (Red) 0V/GND (Black) 1.3.3 CAT5/6 colour code The following is the suggested colour coding if using CAT5 or CAT6 cabling. -
Page 7: Wiring For Actpro
GREEN (Yellow) 1.4.2 Clock & Data exit reader Buzzer input +12V (Red) SENSE (White) – DO NOT CONNECT SENSE 0V / GND (Black) CLOCK / D1 (Green) RED (Brown) DATA / D0 (Blue) GREEN (Yellow) A-100505 © Vanderbilt 2018 31.05.2018... -
Page 8: Wiegand Entry Reader
IMPORTANT: To put ACTpro E readers into Wiegand mode, connect the SENSE on the reader to 0V/GND PIN and DATA/D0 to the SENSE PIN on the controller. Buzzer input +12V (Red) SENSE (Blue) 0V / GND (Black, White) CLOCK / D1 (Green) RED (Brown) DATA / D0 GREEN (Yellow) A-100505 © Vanderbilt 2018 31.05.2018... -
Page 9: Mounting Instructions
Place the reader/keypad onto the surface mount collar and clip down into place. Use the security screw supplied to attached the unit to the surface mount collar. Place the cap onto the unit and push firmly in place. A-100505 © Vanderbilt 2018 31.05.2018... -
Page 10: Flush Mount
1mm to 4mm. A spacer of the correct length is assembled by stacking the spacers together. View A shows mounting plate before spacers are broken away by installer. View B shows spacer stacking. A-100505 © Vanderbilt 2018 31.05.2018... - Page 11 Place the reader/keypad onto the surface mount collar and clip down into place. Use the security screw supplied to attached the unit to the flush mount collar. Place the cap onto the unit and push firmly in place. A-100505 © Vanderbilt 2018 31.05.2018...
- Page 12 © Vanderbilt 2018 Data and design subject to change without notice. Supply subject to availability. Document ID: A-100505 Edition date: 31.05.2018 Issued by Vanderbilt International Ltd. Clonshaugh Business and Technology Park vanderbiltindustries.com Clonshaugh, Dublin D17 KV 84, Ireland @VanderbiltInd Vanderbilt Industries...
