Mobile Flex

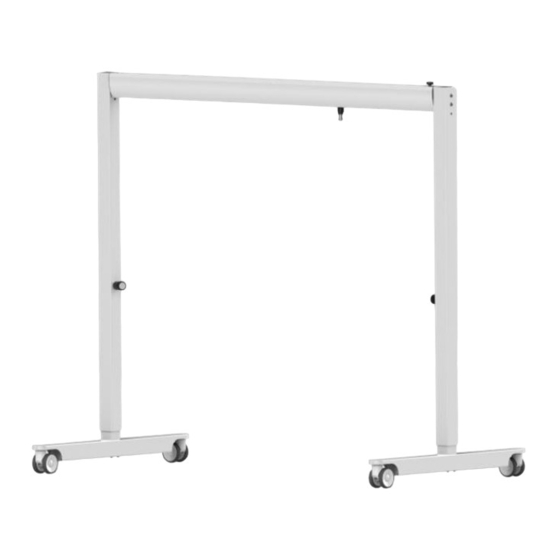

2-post system
4-post system
User manual
Important information:
This user manual must be read before
the product is used.
This user manual is intended for
installers, therapists and other
personnel, in connection with the use,
servicing and maintenance of Ergolet
Mobile Flex system.
Date: 20.05.2015 - Version 04
Scan the QR-code for more information
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ergolet Mobile Flex 3000/3
Summary of Contents for ergolet Mobile Flex 3000/3
- Page 1 This user manual must be read before the product is used. This user manual is intended for installers, therapists and other personnel, in connection with the use, servicing and maintenance of Ergolet Mobile Flex system. Date: 20.05.2015 - Version 04 Scan the QR-code for more information...
-
Page 3: Table Of Contents
Contents 1. Purpose and safety Purpose Safety instructions Check before use Transport 2. Mobile Flex - 2-post system Terminology Unpacking Assembly instructions Technical specifications and dimensions 3. Mobile Flex - 4-post system Terminology Unpacking Assembly instructions Technical specifications and dimensions 4. -
Page 4: Purpose And Safety
NEVER use Mobile Flex if there is suspicion of any defect (abnormal sound, loose brackets etc.) In such cases it is important to find the cause and to take Mobile Flex out of service and your dealer or Ergolet contacted. ... -
Page 5: Check Before Use
Check that there are no signs of corrosion, wear and tear or other defects. If there is any sign of a defect the Mobile Flex must be taken out of use immediately. If in any doubt concerning the use of Mobile Flex contact Ergolet for advice and guidance. -
Page 6: Mobile Flex - 2-Post System
2.2 Unpacking Make sure no parts are missing or damaged. Any suspicion of damage or shortage should be reported to your dealer or Ergolet. The 2-pos system is delivered in 5 boxes. The boxes content as following: Box 1 (Fig. 2.2A): ... -
Page 7: Assembly Instructions
2.3 Assembly instructions Due to heavy parts Ergolet recommends that Mobile Flex is assembled by two persons. Follow the assembly instruction step by step: Place the support columns on the floor with the traverse between the columns. Turn the support columns as the 2 holes facing against the traverse. -
Page 8: Technical Specifications And Dimensions
2.4 Technical specifications and dimensions Specifications: Weight: Complete Mobile Flex 3000: 88 kg Complete Mobile Flex 4000: 98 kg Traverse 3000 (3 meter): 28 kg Traverse 4000 (4 meter): 38 kg Support column: 18 kg Base with wheels: 12 kg Dimensions: Mobile Flex 3000 Mobile Flex 4000... -
Page 9: Mobile Flex - 4-Post System
3.2 Unpacking Make sure no parts are missing or damaged. Any suspicion of damage or shortage should be reported to your dealer or Ergolet. The 4-post system can be combined depending on the model. See combinations in chapter 3.4 - “Specifications”, and the number of applied parts. -
Page 10: Assembly Instructions
3.3 Assembly instructions Due to heavy parts Ergolet recommends that Mobile Flex is assembled by two persons. Follow the assembly instruction step by step: Place 2 of the support columns on the floor with the traverse between the columns. Turn the support columns as the 2 holes facing against the traverse. - Page 11 Mount the distance piece between the two ends (Fig. 3.3E) and tighten the 4 x M10 screws (Fig. 3.3F). Fig. 3.3E Fig. 3.3F Mount in both ends on traverse the end bracket. Lift the traverse, so that the end bracket led up to the bayonet bracket (Fig.
-
Page 12: Technical Specifications And Dimensions
3.4 Technical specifications and dimensions Specifications: Number of parts Mobile Flex Mobile Flex Mobile Flex Mobile Flex for each model 3000/3 3000/4 4000/3 4000/4 Traverse 3000 Traverse 4000 Distance piece 3000 Distance piece 4000 Total weight 200 kg 220 kg 220 kg 240 kg Weight on parts:... -
Page 13: Using The Mobile Flex
Mobile Flex can be used outdoors. 4.1 Using the Mobile Flex Mobile Flex should always be used together with Ergolet´s Luna ceiling hoist. A cart with an attached bayonet is mounted on the traverse holding the Luna (Fig. 4.1A). Refer to the Luna user instructions for more information on the Luna ceiling hoist. -
Page 14: Maintenance
Mobile Flex. The legal owner of the product is responsible for ensuring that inspection is carried out. An inspection schedule can be requested from Ergolet. If is necessary to replace any parts due to wear or damage these must be obtained/supplied by Ergolet. -
Page 15: Environment And Quality
7.1 Disposal The product can be returned to Ergolet for disposal. When Mobile Flex is worn out it can be returned to Ergolet to be discarded in an environmentally correct way either through reuse or recycling. - Page 16 Manufactor: Phone: + 45 70 27 37 20 Ergolet ApS 9 3 / 4 2 / E Ø F C L A S S I Fax: + 45 70 27 37 19 Taarnborgvej 12 C D S / E N 1 0 5 3 5 Email: info@ergolet.dk...
