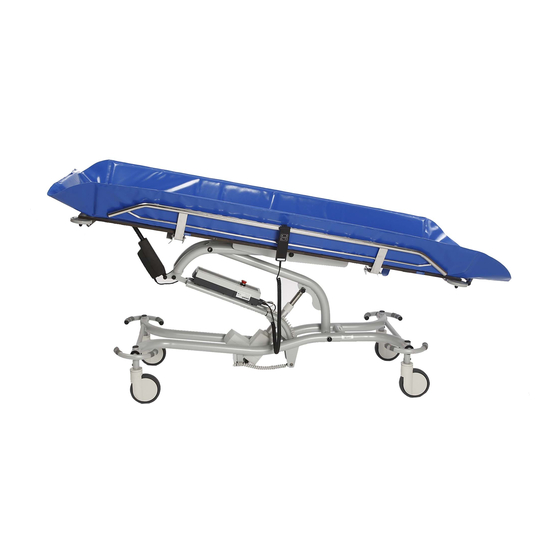

ergolet Lambda/175 User Instruction

Shower trolley
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

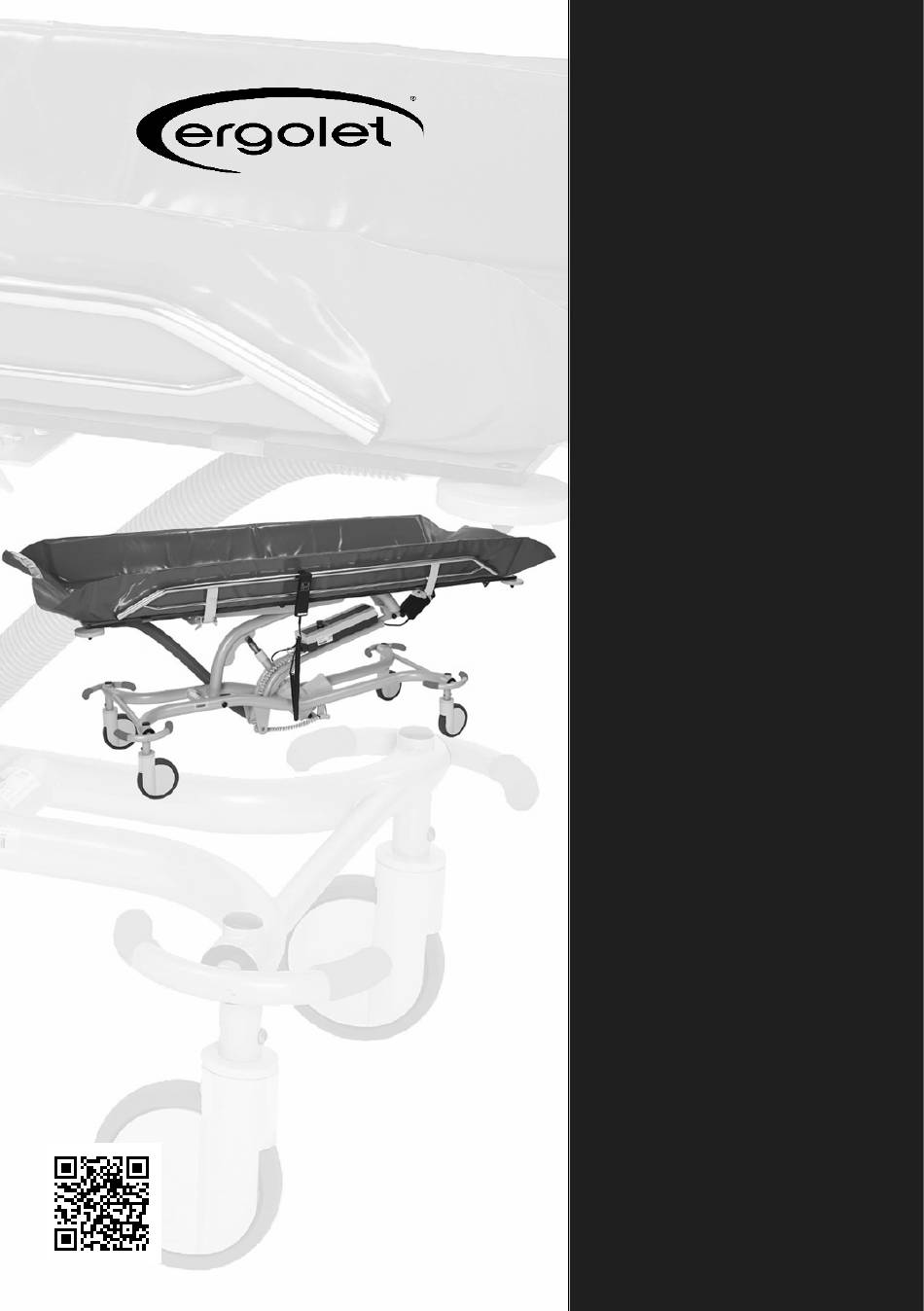

Lambda/175
Shower trolley
User instruction
Important information
Please read this user manual carefully
before using the product!
This user manual is intended as a guide
for caregivers and other users, as well as
technical personnel during servicing and
maintenance of the product.
Date: 01-08-2019
Version 15
Scan the QR code for more information
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lambda/175 and is the answer not in the manual?

Questions and answers

Related Manuals for ergolet Lambda/175

Summary of Contents for ergolet Lambda/175

  • Page 1 Lambda/175 Shower trolley User instruction Important information Please read this user manual carefully before using the product! This user manual is intended as a guide for caregivers and other users, as well as technical personnel during servicing and maintenance of the product.

  • Page 3: Table Of Contents

    CONTENTS Aim and use ....................4 Purpose ........................4 Safety instructions ....................4 Terminology ......................4 Technical functions ..................5 Functions ........................5 Safety functions......................6 Charging ........................6 Use ......................7 Using the shower trolley ..................7 Maintenance and check ................9 Cleaning ........................

  • Page 4: Aim And Use

    1 Aim and use 1.1 Purpose The shower trolley is used to assist patients requiring a reclined/lying position during the washing/showering situation. During use there must be at least one person present who has received instruction in use of the shower trolley. 1.2 Safety instructions Important –...

  • Page 5: Technical Functions

    2 Technical functions 2.1 Functions The shower trolley is easy to operate. However, before use, please read the following instructions carefully: 1. The hand control (Fig. 2.1) enables easy handling. Press on the top buttons "up" or "down” and the shower trolley going up or down.

  • Page 6: Safety Functions

    2.2 Safety functions Emergency stop: This function is only to be used in an emergency eg. if the shower trolley does not react or does not stop after releasing the hand control operation. If the emergency button has been activated all functions immediately stops.

  • Page 7: Use

    3 Use 3.1 Using the shower trolley Brakes: The shower trolley has central braking, direction guides and neutral position. Using these functions: In a horizontal position (fig. 1) the shower trolley is Fig 1 unlocked, and all wheels can move freely. Pressing the directional guide pedal (fig.
  • Page 8 Side rails and end rail: The side rails have two positions “up” or “down”. The end rails have 4 different positions. Press Press the holding bracket on both sides at the same time to release the side rail. Release pin Pull the release pin on both sides and the end rails can be lowered or angled in 4 different positions.

  • Page 9: Maintenance And Check

    4 Maintenance and check 4.1 Cleaning The shower trolley may be cleaned using soap and water. Low power disinfectants may also be used. 4.2 Maintenance The shower trolley must always be maintained by qualified and authorized personnel who have been approved by Winncare Nordic. 4.3 Annual check Winncare Nordic recommends, the Lambda has an annual service/check.

  • Page 10: Technical Data And Dimensions

    5 Technical data and dimensions 5.1 Technical specifications Lifting properties: Load capacity (SWL): 175 kg Lifting interval: 56-103cm Electrical details: Power supply: IP class IP65 Material: Powder coated stainless steel Weight: Weight in total: 115 kg 5.2 Dimensions Width over side rails 78cm Length over side rails 206cm...

  • Page 11: Environment And Quality

    6 Environment and quality Lambda has an expected lifetime of minimum 10 years under the assumption that all recommended service checks have been carried out and that the normal maintenance and care instructions have been followed. 6.1 Disposal Disposal of this shower trolley can be made through Winncare Nordic. After useful lifetime Winncare Nordic will receive the trolley back and split the individual parts in an environmentally friendly way either through reuse or recycling.
  • Page 12 Manufacturer: Phone: + 45 70 27 37 20 93/42/EØF CLASS I Winncare Nordic ApS Fax: + 45 70 27 37 19 Taarnborgvej 12 C Email: info@winncare.dk 4220 Korsoer www.winncare.dk Denmark UM-910-00753UK...
