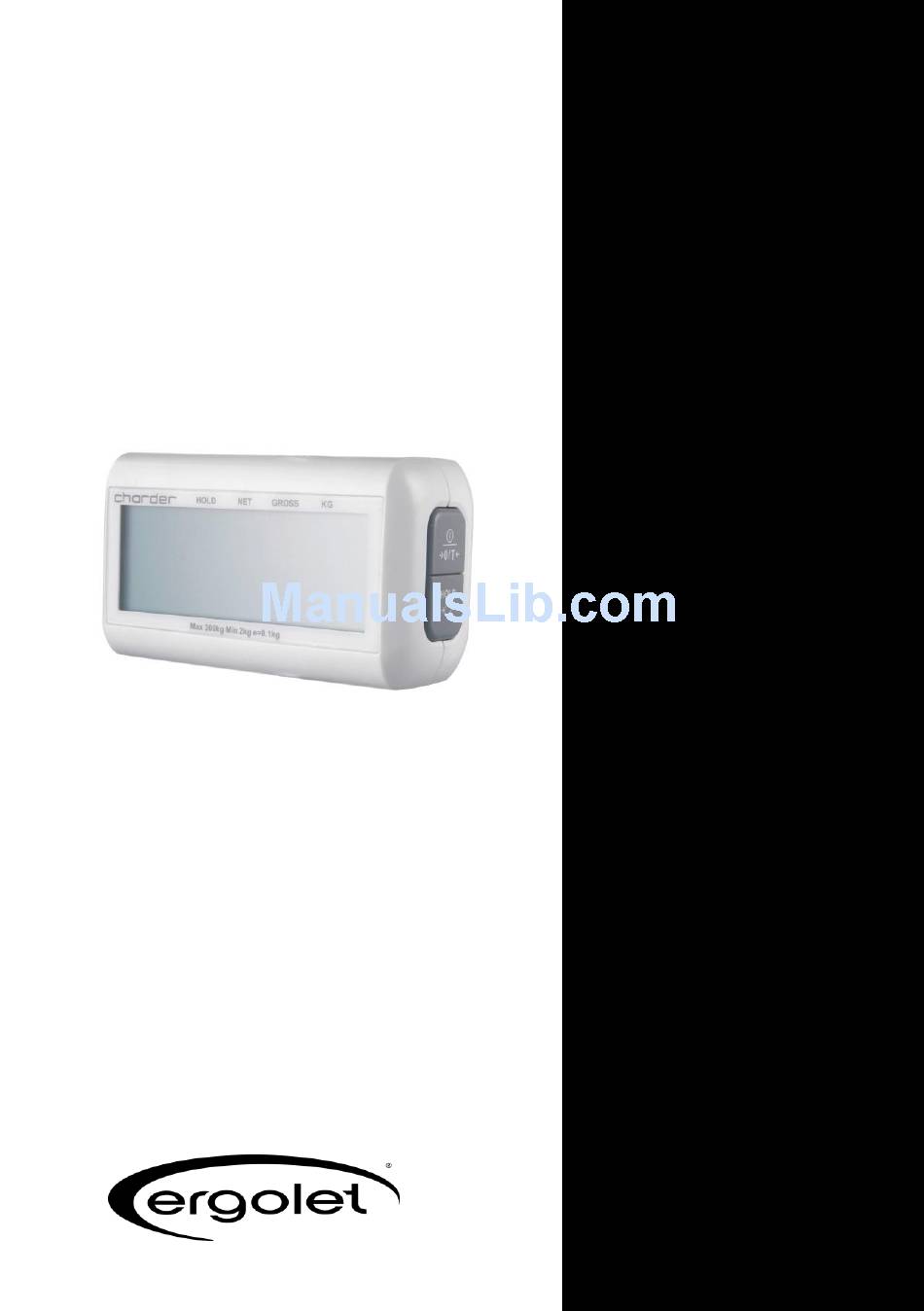

  • Page 1 Charder Medical scale User instruction Important information This user instruction must be read before the medical scale is used. This user instruction is intended for technicians, installers, therapists and other personnel, in connection with the use, servicing and maintenance of the product.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREFACE GENERAL INFORMATION SAFETY INSTRUCTION ENVIRONMENTAL SAFETY CLEANING MAINTENANCE WARRANTY-LIABILITY READING BEFORE USE SPECIFICATIONS PANEL INDICATION KEY FUNCTIONS FEATURE SETTINGS OPERATION FLOW SETTING UP YOUR SCALE STEP BY STEP INSTRUCTION FOR REPLACING BATTERY ERROR MESSAGE...

  • Page 4: Preface

    PREFACE Thanks you for choosing a CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not described in the...

  • Page 5: Environmental Safety

    The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. The regularity of these checks is dependent on the level of use and the state of the scale. If any inaccuracies occur, please contact Ergolet.

  • Page 6: Warranty-Liability

     If a fault or defect is presented on receipt of the scale, which is within Ergolet scope of responsibility, Ergolet shall have the right to either repair the fault or supply a replacement weight scale. Replaced parts shall be the property of Ergolet. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid.
  • Page 7 CAUTION Tilt angle over 3° will cause fault in the weighing. 3∘ 3∘ Limited Angle Ball joints are assembled with load cells from factory. It should not be twisted by user or in any other circumstance. Misusage will cause unexpected danger. We do not recommend building a scale into a construction of any hoist where the spreader bar do not swivel 360°.

  • Page 8: Specifications

    SPECIFICATIONS MODEL: MHS 2500 Capacity 200kg / 300kg 400kg Division 0.1kg 0.2kg Display options 5 1/2 digits Weight Unit Dimension 120 x 50 x 160 mm Power 1.5V AAA * 6 batteries Operating temperature 0°C/40°C WARNING: *Only kg unit is approved by OIML (International Organization of Legal Metrology).

  • Page 9: Panel Indication

    PANEL INDICATION HOLD indicator NET weight Gross weight kg indicator...

  • Page 10: Key Functions

    KEY FUNCTIONS ON/OFF/ZERO/TARE TARE function is designed for people who want to subtract additional weight (like clothing) from total weight to get the net weight of subject. How to get net weight? Loading the weight you want to subtract from a person. Press ON/OFF/ZERO/TARE key to tare the weight.

  • Page 11: Feature Settings

    FEATURE SETTINGS Auto-Off Time Adjustment The device will automatically off according auto-off time setting.  Auto-off setting time: 120 sec/180 sec/240 sec/300 sec/off Buzzer Adjustment  Switching the buzzer ON and OFF. OPERATION FLOW Please follow the operation flow to set up your scale. HOLD “→”...

  • Page 12: Setting Up Your Scale Step By Step

    SETTING UP YOUR SCALE STEP BY STEP For Example: Set up 180 sec AUTO-OFF time and Buzzer OFF. Step 1: Press HOLD for 3 seconds to enter setup mode Step 2: Press ZERO to enter mode when is displayed. Step 3: Press HOLD to select which means AUTO-OFF TIME is 180 seconds.

  • Page 13: Instruction For Replacing Battery

    INSTRUCTION FOR REPLACING BATTERY The medical weight scale uses six AAA alkaline batteries. Please read the following instruction before using the scale. 1. Find the battery cover at the 2. Remove the battery cover. back side of the scale. 3. Take the battery case out. 4.

  • Page 14: Error Message

    ERROR MESSAGE  LOW BATTERY INDICATION This warning shows that the voltage of battery is too low to operate. Please change battery.  ZERO HIGH The loading is over limited when power on, please reduce the loading.  ZERO LOW The loading is under limited when power on, please increase the loading.
  • Page 15 5 6 7 Specification – See page 8 Calibrated according to tolerance class III in conformity to Directive 2009/23/EG CE-mark and number for authorizing organ Product should be recycled if possible Type B, The patient is not separated from ground. Name of the manufacturer Warning –...
  • Page 16 Authorized EU Representative: Pedihealth Oy Kastellinmaenkuja 8, FI-90230 OULU, Finland Manufactured by: Charder Electronic Co., Ltd. No.103, Kuo Chung Road, Dah Li City, Taichung Hsien, Taiwan (R.O.C.) Dealer: Phone: + 45 70 27 37 20 Ergolet Fax: + 45 70 27 37 19...
