Matrix MAGNUM Series Quick Start Manual

M A G N U M S E R I E S

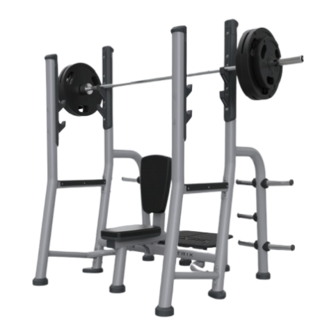

A45 OLYMPIC SHOULDER PRESS
MAT RIX F I TN E S S | 1600 LA N DM A RK D RI V E C OTTAGE GR OVE WI 5 3 5 2 7 U SA
To l l F r e e m a t r i x f i t n e s s . c o m | F a x
866.693. 4863 | 60 8.83 9 .8 6 8 7
REV. 1.8
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of MATRIX products to instruct all individuals, whether
they are the end user or supervising personnel on proper usage of the equipment.
It is recommended that all users of MATRIX exercise equipment be informed of the following
information prior to its use.
Do not use any equipment in any way other than designed or intended by the manufacturer. It is
imperative that MATRIX equipment be used properly to avoid injury.
INSTALLATION
1. STABLE AND LEVEL SURFACE: MATRIX exercise equipment must be installed on a stable
base and properly leveled.
2. SECURING EQUIPMENT: Manufacturer recommends that all stationary MATRIX
strength equipment be secured to the floor to stabilize equipment and eliminate
rocking or tipping over. This must be performed by a licensed contractor.
3. Under no circumstances should you slide equipment across the floor due to risk of tipping.
Use proper materials handling techniques and equipment recommended by OSHA.
All anchor points must be able to withstand 750 lbs. (3.3 kN) pull-out force.
MAINTENANCE
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only
replacement parts supplied by your country's local MATRIX dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They
contain important information. If unreadable or missing, contact your MATRIX dealer for a
replacement.
3. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating
equipment as well as keeping your liability to a minimum. Equipment needs to be inspected
at regular intervals.
4. Ensure that any person(s) making adjustments or performing maintenance or repair of any
kind is qualified to do so. MATRIX dealers will provide service and maintenance training at
our corporate facility upon request.
ADDITIONAL NOTES
This equipment should only be used in supervised areas where access and control is specifically
regulated by the owner. It is up to the owner to determine who is allowed access to this training
equipment. The owner should consider a user's: degree of reliability, age, experience, etc.
This training equipment meets industry standards for stability when used for its intended purpose
in accordance with the instructions provided by the manufacturer.
This training equipment is in compliance with EN 957-1 and the relevant portions of EN 957-2
and EN 957-4.
PROPER USAGE
1. Do not exceed weight limits of the exercise device.
2. If applicable, set safety stops to appropriate height.
3. If applicable, adjust seat pads, leg pads, foot pads, range of motion
adjustment, or any other type of adjustment mechanisms to a
comfortable start position. Make certain that the adjusting mechanism is
fully engaged to prevent unintentional movement and to avoid injury.
4. Sit on bench (if applicable) and get into appropriate position for exercise.
5. Exercise using no more weight than you can safely lift and control.
6. In a controlled manner, perform exercise.
7. Return weight to its fully-supported start position.
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Upholstery * Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips * As Needed
Lubricate Guide Rods † As Needed
* Upholstery & Grips should be cleaned with a mild soap and water or a
non-ammonia based cleaner.
† Guide rods should be lubricated with Teflon based lubricant. Apply the lubricant
to a cotton cloth and then apply up and down the guide rods.
WARNING
DEATH OR SERIOUS INJURY CAN OCCUR ON THIS
EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID
INJURY!
1. Keep children under the age of 14 away from this
strength training equipment. Teenagers must be
supervised at all times while using this
equipment.
2. This equipment is not intended for use by persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the equipment by a
person responsible for their safety.
3. All warnings and instructions should be read and
proper instruction obtained prior to use. Use this
equipment for its intended purpose ONLY.
4. Inspect the machine before use. DO NOT use
machine if it appears damaged or inoperable.
5. Do not exceed weight capacity of this equipment.
6. ALWAYS use a spotter if using free weights.
7. Balance the weight applied to this equipment
and/or any barbell. Where applicable, use
retention devices to retain weight discs.
8. Injuries to health may result from incorrect or
excessive training. Cease exercise if you feel faint
or dizzy. Obtain a medical exam before beginning
an exercise program.
9. Keep body, clothing, hair, and fitness accessories
free and clear of all moving parts.
10. Adjustable stops, where provided, must be used
at all times.
11. When adjusting any adjustable mechanism (stop
position, seat position, pad location, range of
motion limiter, pulley carriage, or any other type),
make certain that the adjustable mechanism is fully
engaged prior to use to prevent unintended motion.
12. Manufacturer recommends that this equipment be
secured to the floor to stabilize and eliminate
rocking or tipping over. Use a licensed contractor.
13. If equipment is NOT secured to floor: NEVER allow
resistance straps, ropes or other means to be
attached to this equipment, as this may result in
serious injury. NEVER use this equipment for
support during stretching, as this may result in
serious injury.
14. DO NOT REMOVE THIS LABEL. REPLACE IF
DAMAGED OR ILLEGIBLE.
Plate-loaded / Free Weight
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 182 kg / 400 lbs.
Maximum Training Weight 182 kg / 400 lbs.
Product Weight 137 kg / 303 lbs.
127 x 138 x 165 cm /
Overall Dimensions (L x W x H)*
50" x 66" x 65"
Weight Horn Diameter
47.63 mm / 1.875"
(Weight Plate Storage)
* Ensure a minimum clearance width of 0.6 meters (24") for access to and pas-
sage around MATRIX strength equipment. Please note, 0.91 meters (36") is
the ADA recommended clearance width for individuals in wheelchairs.
WARRANTY
Valid in North America only
Frame (not coatings) * 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
Accessories 6 months
* Frame is defined as the welded metal base of the unit and does not include remov-
able parts.
Product specifications subject to change without notice.
