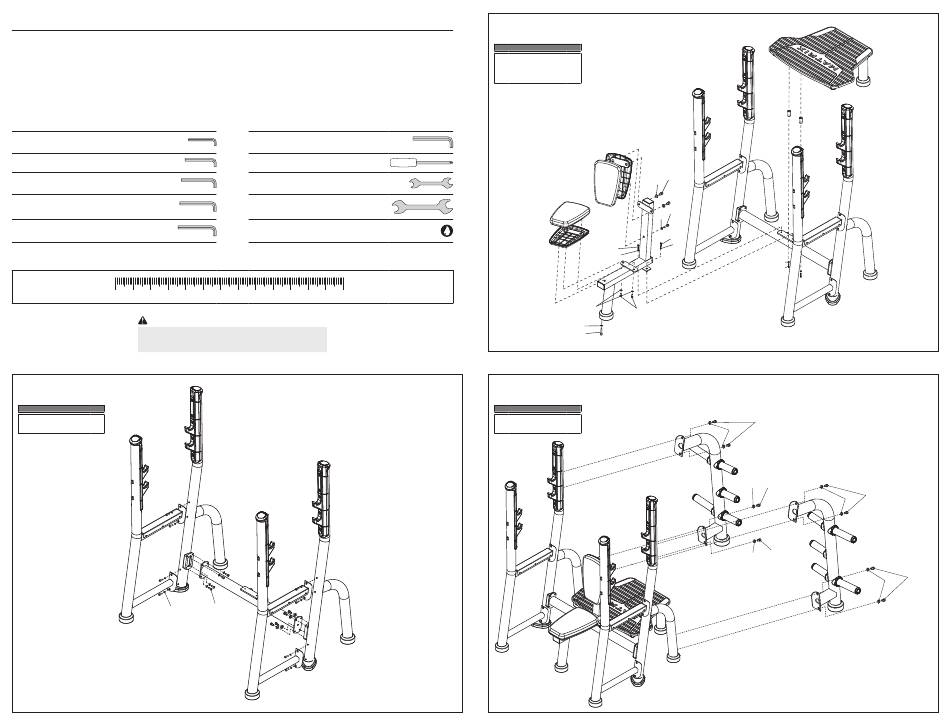

Matrix MAGNUM Series Quick Start Manual page 2

MAGNUM SERIES (A45) OLYMPIC SHOULDER PRESS
UNPACKING MAGNUM (A45) OLYMPIC SHOULDER PRESS
Thank you for purchasing a MATRIX Fitness product. Your MAGNUM SERIES (A45) OLYMPIC SHOULDER PRESS is inspected before it is packaged. It is
shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them with the exploded
diagrams. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance removing the frame pieces from this box. Please be
sure to install the equipment on a stable base, properly level the machine and leave at least two feet of clearance to enter and exit the machine.
TOOLS REQUIRED FOR ASSEMBLY (not included)
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
If any items are missing please contact your country's local MATRIX dealer for assistance.
0 10 20 30 40
mm
IMPORTANT
During each assembly step, ensure that ALL nuts and bolts are in place
and partially threaded. It is recommended you complete the full assembly
of your unit before completely tightening any ONE bolt.
STEP 1
Frame Detail
Hardware
Description Qty
Z01 Bolt (M10x20L) 16
Z02 Flat Washer (M10) 16
16xZ02
10MM L-Shaped Allen Wrench
Phillips Screwdriver
8MM Open-End Wrench
17MM Open-End Wrench
Guide Rod Lubrication
50 60 70 80 90 100 110 120 130
16xZ01
STEP 2
Frame Detail
Hardware
Description Qty
Z04 Bolt (M10x75L) 4
Z02 Flat Washer (M10) 10
Z08 Bolt (M10x15L) 2
Z11 Bolt (M10x35L) 4
Z11
Z02
Z04
Z02
Z08
Z02
Z08
Z02
Z02
Z11
Z02
Z04
STEP 3
Optional Parts Assembly
Hardware
Description Qty
Z01 Bolt (M10x20L) 8
Z02 Flat Washer (M10) 8
2xZ02
2xZ04
Z01
Z02
Z02 Z01
Z01
Z02
Z01
Z02
Z01
Z02
