Warnings for the safe use of this tool are included in this manual.
Los avisos para el uso seguro de esta herramienta están incluidos en este manual.
Les consignes pour l'utilisation en toute sécurité de cet outil se trouvent dans ce manuel.
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com

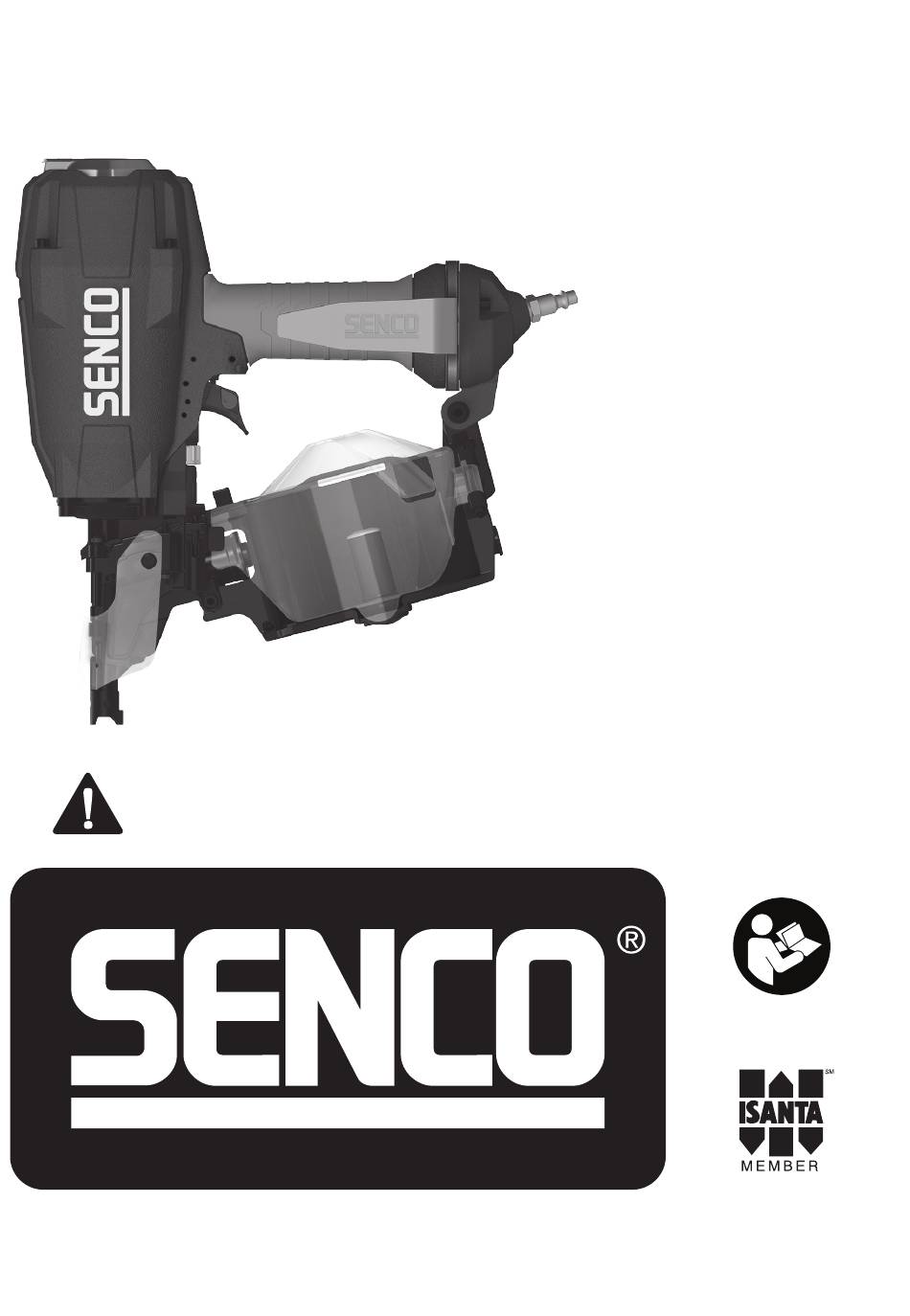

2 ½" coil SidiNg Nailer
PNeumatic
operating instructions
Read before use.
NFD8SN71P • Issued September 24, 2021
© 2021 by KYOCERA-SENCO Industrial Tools, Inc.
SN71P1
IMPORTANT:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Senco SN71P1
Summary of Contents for Senco SN71P1
- Page 1 Les consignes pour l’utilisation en toute sécurité de cet outil se trouvent dans ce manuel. IMPORTANT: Read before use. KYOCERA-SENCO Industrial Tools, Inc. NFD8SN71P • Issued September 24, 2021 8450 Broadwell Road Cincinnati, OH 45244 1-800-543-4596 www.senco.com © 2021 by KYOCERA-SENCO Industrial Tools, Inc.
-
Page 2: Table Of Contents
table of contents Employer’s Responsibilities ........................2 Safety Warnings ............................3 Maintenance ............................... 6 Functional Operation ..........................8 Tool Use ..............................9 Actuation System ............................9 Clearing Jam ............................10 Features ..............................10 Troubleshooting ............................11 Accessories .............................. 12 Options ..............................12 Technical Specifications ........................... -
Page 3: Safety Warnings
Safety WarNiNgS Read and understand tool labels and manual. Failure to follow WARNING warnings will result in DEATH or SERIOUS INJURY. Save These Instructions. Personal Protective equipment Use safety equipment. Always wear ANSI Z87+ safety glasses with permanently attached side shields. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. - Page 4 It is recommended that operators that are less experienced using pneumatic fastener driving tools choose a sequential mechanism until they become familiar with the tool and its operation. Please call Senco Customer Service to obtain an alternate trigger type in those tools that can be user modified to fit the application and/or level of operator experience.
- Page 5 (7) MAX AIR PRESS. 120 PSI (8.3 BAR) operating controls Do not use tool without danger label on tool. If label is missing, damaged or unreadable, contact your SENCO represen- tative to obtain a new label. Never use tool if safety element, trigger or springs have become inoperable, missing or damaged. Do not tamper with or remove safety element, trigger or springs.
-
Page 6: Maintenance
Do not use tool if safety element or trigger sticks or binds. Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet twice daily (depending on frequency of tool use). Other oils may damage O-rings and other tool parts. - Page 7 Safety WarNiNgS the employer, tool owner and tool operator: • are responsible for ensuring that the tools are kept in safe working order. • are responsible for ensuring that only qualified personnel shall repair the tool. • are responsible for ensuring that manufacturers tool maintenance instructions are available to personnel performing maintenance.
-
Page 9: Tool Use
③ Close magazine cover and gate. Make sure gate is fully latched. do not load with workpiece contact (safety element) or trigger depressed. Use only genuine SENCO fasteners (see Fastener Specifications). actuation System: With a contact-actuation (“dual-action”) trigger, fasteners can be driven two ways: the first Way: ➀... -
Page 10: Clearing Jam
Disconnect air supply, loosen cap screw with a hex wrench, and then rotate deflector to desired direction. Prior to tool use, ensure deflector cap screw is tightened. repairs other than those described here should be performed only by trained, qualified personnel. contact SeNco for information at 1-800-543-4596. -
Page 11: Troubleshooting
Nail set above work surface Low air pressure Increase air pressure (No greater than 120 psi) Application too rigorous Consider alternate type of wood Rate of drive too fast Reduce drive rate Incorrect depth of drive Adjust setting Other problems Contact SENCO... -
Page 12: Accessories
SENCO offers a full line of accessories for your SENCO tools, including: • Air Compressors • Hose • Couplers • Fittings • Safety Glasses • Pressure Gauges • Lubricants • Regulators • Filters • No Mar Pads options SEQUENTIAL TRIGGER (HA0240) —This feature is helpful when precise fastener place- ment is required. -
Page 13: Fastener Specifications
2" 2" 2 1/4" 2 1/4" .082" 2,1mm .092 " .092 " 2,3mm 2,3mm 15 degree Wire Welded or Plastic carrier coil Senco fastener code inches 1 1/4 1 1/2 1 3/4 1 3/4 2 1/4 1 3/4 2 1/4... -
Page 14: Limited Warranty
KYOCERA-SENCO Industrial Tools, Inc. (“SENCO”) designs and constructs its products using the highest standards of material and workmanship. SENCO warrants to the original retail purchaser that the following products will be free from defects in material or workmanship for the warranty period... - Page 15 Notes:...
- Page 16 KYOCERA-SENCO Industrial Tools, Inc. 8450 Broadwell Road Cincinnati, Ohio 45244 1-800-543-4596 www.senco.com...
