Table of Contents

80001028 – Issue 1 11/20

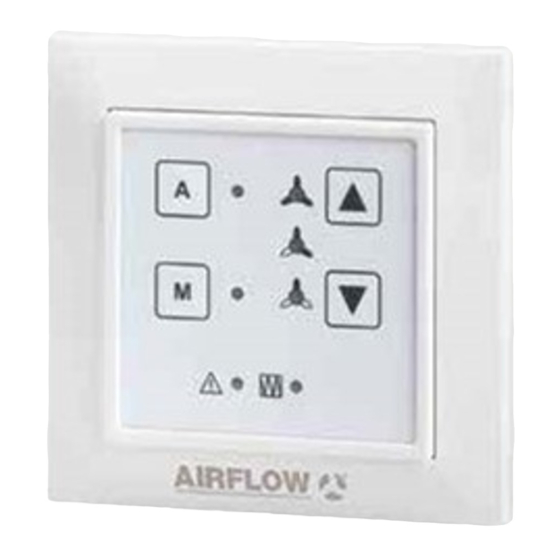

MultiPlexBox ECO Controller
Part No: 90001253
Manual on the correct usage, maintenance, and
Installation of the MultiPlexBox ECO controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiPlexBox ECO and is the answer not in the manual?

Questions and answers

Related Manuals for Airflow MultiPlexBox ECO

Summary of Contents for Airflow MultiPlexBox ECO

  • Page 1 80001028 – Issue 1 11/20 MultiPlexBox ECO Controller Part No: 90001253 Manual on the correct usage, maintenance, and installation of the MultiPlexBox ECO controller...
  • Page 2 C o n t e n t s Contents Contents ................................. 2 1.0 General Information ..........................3 2.0 Installation..............................5...
  • Page 3 Implementation according to “unit” Installation and Operating Instructions. The use of accessories, which are not approved, recommended, or offered by Airflow Developments, is not permissible. Any damages are excluded from the guarantee. If these instructions are not observed, all warranty claims are excluded. This also applies to any liability claims extended to the manufacturer.
  • Page 4 1.8 Functions The following functions of the unit can be set using the control element: • Automatic Operation • Manual Operation • Ventilation Stage 1-3 • Basic Ventilation • Automatic Operation (Only possible with optional sensors) When the A button is pressed, automatic operation of the unit is activated and displayed by the lit-up LED next to the A button.
  • Page 5 Error List The errors you may encounter are listed below: Error Number Flash Code Description No Error 2x flashing, pause Error system memory. Unable to load Parameter data. 6x flashing, Error communication internal sensor. Unable to set up communication with pause configured sensor 8x flashing,...
  • Page 6 Diagram 2: Location of connection on the MultiPlexBox Location reference Use this diagram to refer to what port to use and where it is located on the box if you have difficulty finding it. A. Mains Voltage (230 V AC) B.
  • Page 7 Airflow Developments Limited Email: info@airflow.com Aidelle House, Lancaster Road Telephone: +44(0)1494 525252 Cressex Business Park, High Wycombe Facsimile: +44(0)1494 461073 Buckinghamshire, HP12 3QP, UK ©Copyright 2016. Airflow Developments Ltd...

This manual is also suitable for:
