FXS Series

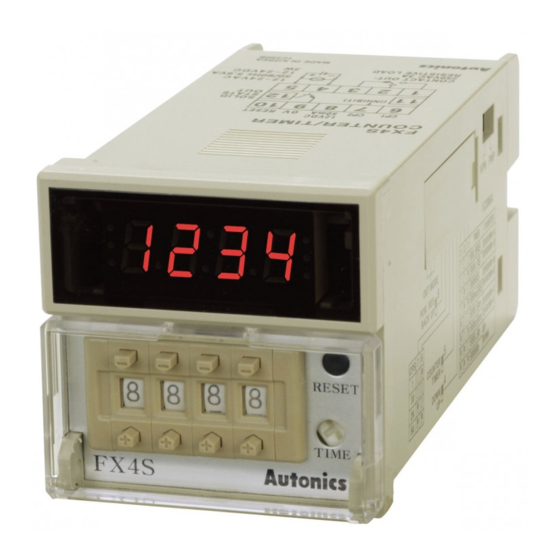

DIN W48×H48mm, Preset counter/timer

Features

● Upgraded counting speed : 1cps/30cps/2kcps/5kcps
● Selectable voltage input(PNP) or No-voltage input(NPN)
● Addition of Up/Down input mode
● Available to set a decimal point(Fixed decimal point of display)
● Wide range of input power supply :
100-240VAC 50/60Hz, 12-24VAC/DC(Option)
● Selectable Counter/Timer by internal DIP switch
● Various time rangelBuilt-in microprocessor
Please read "Caution for your safety" in operation
manual before using.

Ordering information

FX FX 4 S
Size
Digit
Item
Specifi cations
Single preset
Model
Indicator
Digit
Digit size
Power supply
Allowable voltage range
Power consumption
Max. Counting Speed for CP1, CP2 Selectable 1cps/30cps/2kcps/5kcps by internal DIP switch
INHIBIT input
Min. input
signal width
RESET input
CP1, CP2 input
(INHIBIT)
Input
RESET input
One-shot output time
Type
Contact
Capacity 250VAC 3A at resistive load
Control
output
Type
Solid-
state
Capacity 30VDC Max. 100mA Max.
Memory protection
External power
Insulation resistance
Dielectric strength
AC power
Noise
strength
DC power
Mechanical
Vibration
Malfunction
Mechanical
Shock
Malfunction
Mechanical
Relay
life cycle
Electrical
Ambient temperature 10 to 55℃, storage: -25 to 65℃
Environ
-ment
Ambient humidity 35 to 85%RH, storage: 35 to 85%RH
Approval
Unit weight
※Environment resistance is rated at no freezing or condensation.
J-42
I
No mark Single preset
Output
I Indicator
S DIN W48×H48mm
4 9999(4digit)
5 99999(5digit)
FX Counter/Timer
FX4S
-
4digit
W3.8×H7.6mm
100-240VAC 50/60Hz, 12-24VAC/DC(Option)
90 to 110% of rated voltage
• Indication type : Approx. 4.7VA (240VAC 60Hz), Approx. 5.6VA (24VAC 60Hz), Approx. 2.8W(24VDC)
• Single preset : Approx. 5.7VA(240VAC 60Hz), Approx. 4.5VA(24VAC 60Hz), Approx. 3W(24VDC)
Approx. 20ms
Input logic is selectable
[Voltage input] Input impedance : 5.4kΩ "H" level : 5-30VDC, "L" level : 0-2VDC
[No-voltage input] Impedance at short-circuit : Max. 1kΩ, Residual voltage at short-circuit : Max. 2VDC,
Impedance at open-circuit : Min. 100kΩ
0.05 to 5sec
SPDT(1c)
NPN open collector
10 years(When using non-volatile semiconductor memory)
12VDC±10% 50mA Max.
Min. 100MΩ(at 500VDC megger)
2000VAC 50/60Hz for 1 minute
±2kV the square wave noise(pulse width : 1㎲) by the noise simulator
±500V the square wave noise(pulse width : 1㎲) by the noise simulator
0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1 hour
0.5mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes
300m/s²(Approx. 30G) in each of X, Y, Z directions for 3 times
100m/s²(Approx. 10G) in each of X, Y, Z directions for 3 times
Min. 10,000,000 operations
Min. 100,000 operations(250VAC 3A at resistive load)
AC type : Approx. 147g, DC type : Approx. 153g
-
FX5S-I
5digit
W4×H8mm
-
-
-
-
-
AC type : Approx. 137g, DC type : Approx. 143g
