For your safe, please read the below content carefully before you use the timer/counter!
Safe Caution
For your safety, please read the below content carefully before you use the meter !
Please comply with the below important points:
Warning An accident may happen if the operation does not comply with the instruction.
Notice
An operation that does not comply with the instruction may lead to product damage.
The instruction of the symbol in the manual is as below:
An accident danger may happen in a special condition.
Warning
1. A safety protection equipment must be installed or please contact with us for the relative information if the product is used under
the circumstance such as nuclear control, medical treatment equipment ,automobile, train, airplane, aviation, entertainment or safety
equipment, etc. Otherwise, it may cause serious loss, fire or person injury.
2. Apanel must be installed, otherwise it may cause creepage (leakage).
3. Do not touch wire connectors when the power is on, otherwise you may get an electric shock.
4. Do not dismantle or modify the product, If you have to do so, please contact with us first. Otherwise it may cause electric shock
and fire.
5. Please check the connection number while you connect the power supply wire or input signal, otherwise it may cause fire.
.
Caution
1. This product cannot be used outdoors. Otherwise the working life of the product will become shorter, or an electric shock accident
may happen.
2. When you connect wire to the power input connector or signal input connectors, the moment of the No.20AWG (0.50 mm2) scrwew
tweaked to the connector is 0.74n.m-0.9n.m. Otherwise the connectors may be damaged or get fire.
3. Please comply with the rated specifications. Otherwise it may cause fire after the working life of the product becomes shorter.
4. Do not use water or oil base cleaner to clean the product. Otherwise it may cause electric shock or fire, and damage the product.
5. This product should be avoid working under the circumstance that is flammable, explosive, moist, under sunshine, heat radiation and
vibration.
6. In this unit it must not have dust or deposit, otherwise it may cause fire or mechanical malfunction.
7. Do not use gasoline, chemical solvent to clean the cover of the product because such solvent can damage it. Please use some soft
cloth with water or alcohol to clean the plastic cover.
1.

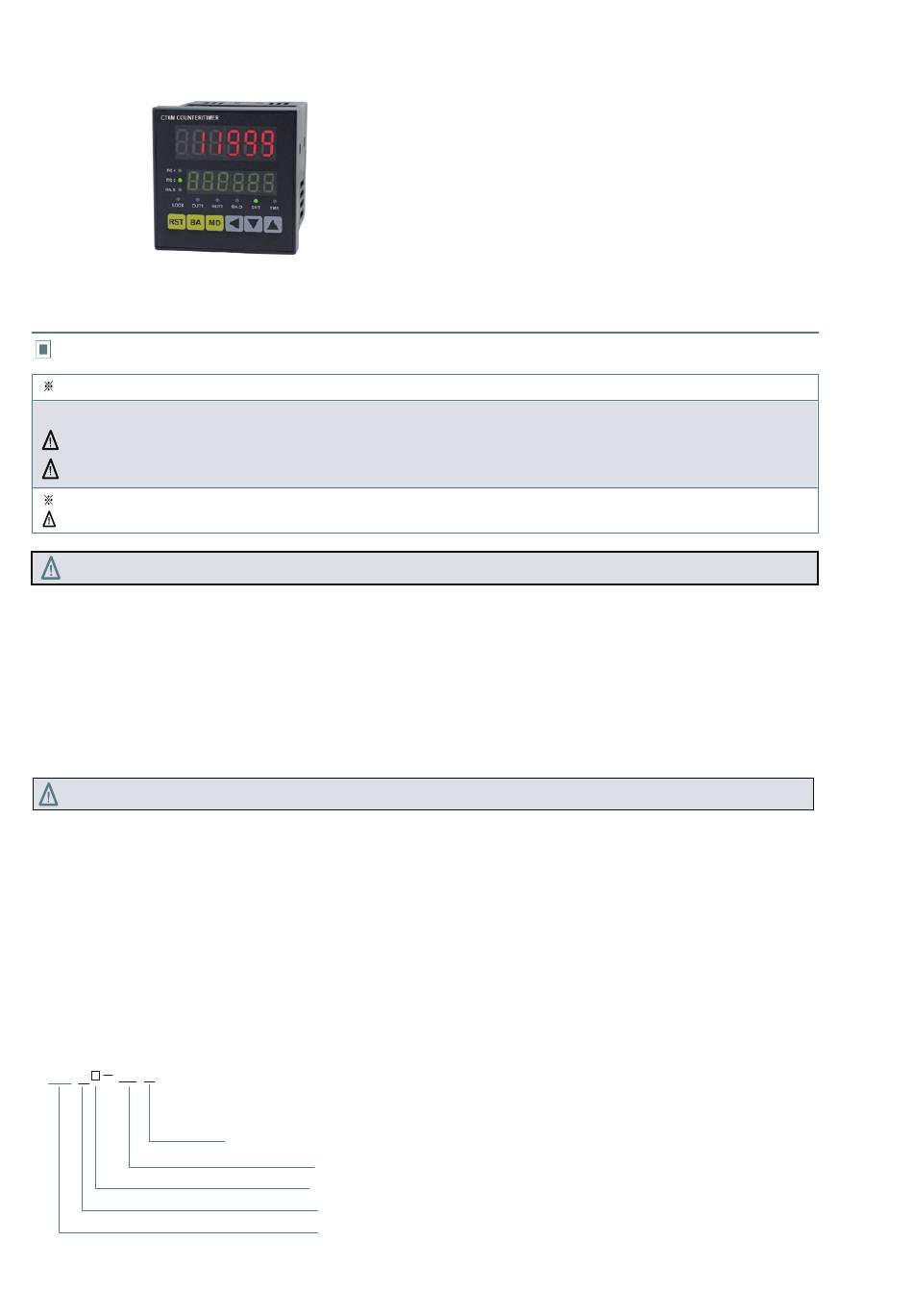

Model Illustration
2 P
4
CT
6
24 Power Supply is also available as special order. Please indicate your requirement in your order
*
-
CT Series Multi
Features:
Design code
2P: 2 loop preset , 1P: 1 loop preset
S: 48H*48Wmm M:72H*72Wmm Y:36H*72Wmm
Display: 6: 6 digit display
CT Series Timer/Counter Multi-function
Page 01
function Counter/Timer
1.Maximum counting speed is 10Kcps.
2. Coefficent can be set as 0.001-99.999
3. Pulse input , PNP and NPN input can be set in the menu
4. With timing function , 9 kinds timing mode can be selected
5. Two loop alarms output for counting length/quantity , one
alarm for batch counting
6. Can be applied to the measure and control in light industry,
machinery , packing and food industry.
KKCTE02T-A/0-20131221
