CH5600E/CH4400E Connectivity

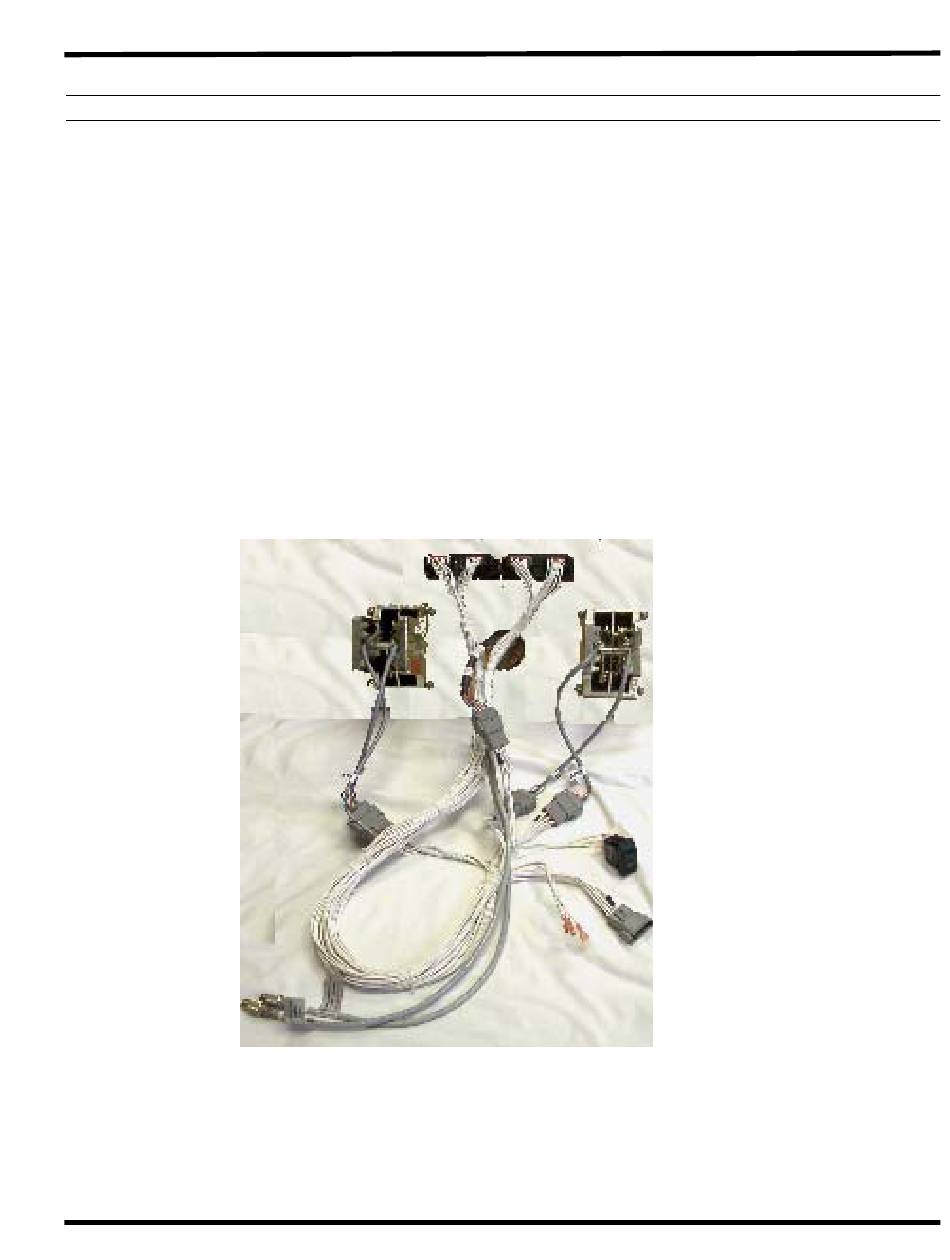

The CE41600 cable harness consists of:
1. Ten Deutch connector cables
2. Two CANBus cables
3. One 3-wire set of Trolling wires ("fast-on" ends) for Trolling Switch (optional)
4. One engine ignition rocker switch
Each part of the CE41600 is labeled for ease of connectivity:
1. Control Head #1 Port and Starboard (and Control Head #2 Port and Starboard, if dual confi gu-
ration)
2. CH67000 CANBus Interface module GREY and BLACK connectors (one per control head)
3. CP1200 Operator Panel (and additional CP1200, if used)
4. CANBus cables (one for each control head)
5. Ignition switch
Starboard control head
CANBus connectors
Electronic Control System: Technical Manual for 6LY3 Series Engines
Helm
Cable Harness CE41600
Rear view of dual engine confi guration
Starboard CH67000 Port CH67000
CP1200 Control Panel
CE416 Cable Harness
Port control head
Ignition Switch
2nd CP1200 Control Panel
Trolling wires
