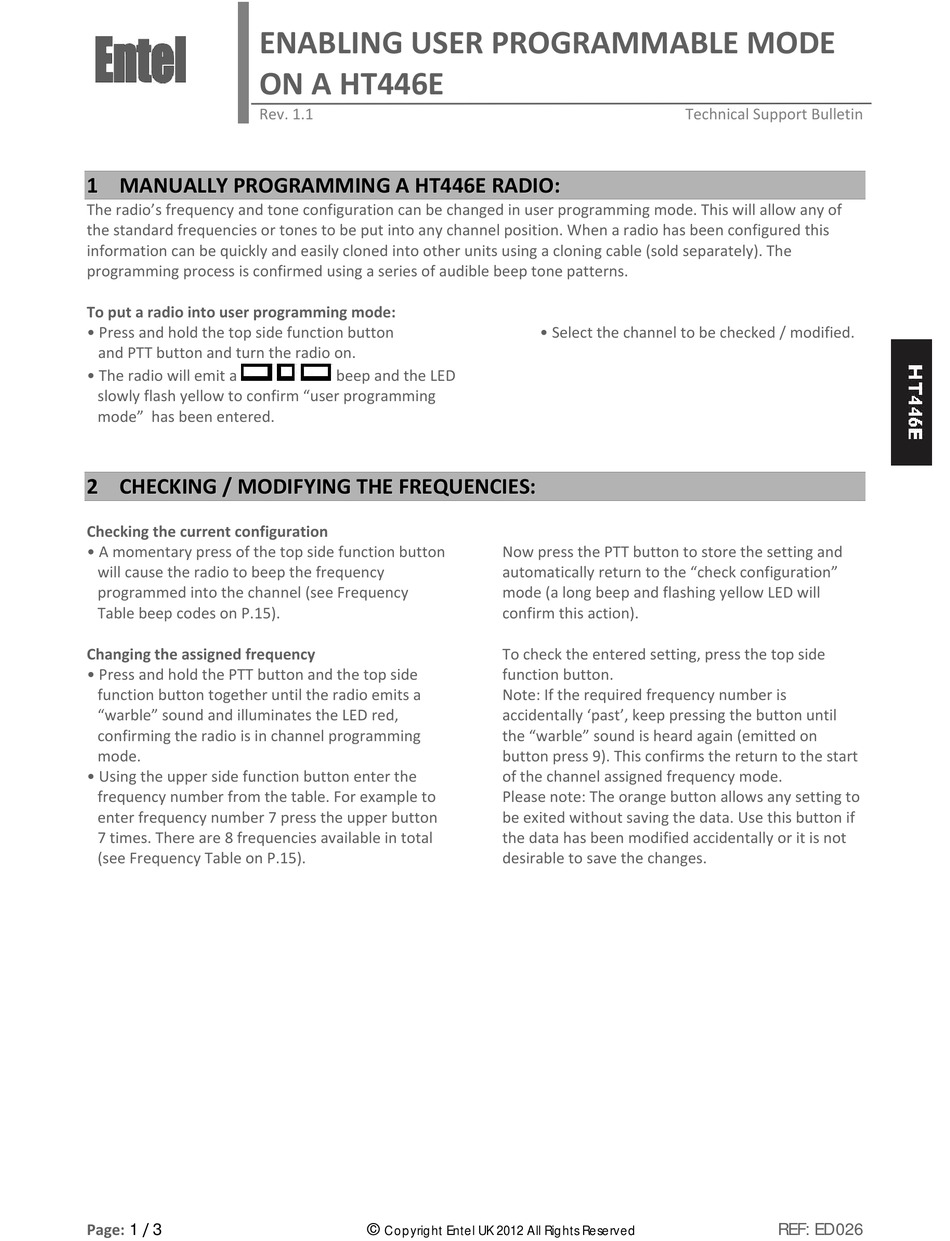

Entel HT446E Technical Support Bulletin

ENABLING USER PROGRAMMABLE MODE
ON A HT446E
Rev. 1.1
1 M A N U A L L Y P R O
1 M A N U A L L Y P R O
The radio's frequency and tone configuration can be changed in user programming mode. This will allow any of
the standard frequencies or tones to be put into any channel position. When a radio has been configured this
information can be quickly and easily cloned into other units using a cloning cable (sold separately). The
programming process is confirmed using a series of audible beep tone patterns.
To put a radio into user programming mode:
• Press and hold the top side function button
and PTT button and turn the radio on.
• The radio will emit a
slowly flash yellow to confirm "user programming
mode" has been entered.
2 C H E C K I N G / M O
2 C H E C K I N G / M O
Checking the current configuration
• A momentary press of the top side function button
will cause the radio to beep the frequency
programmed into the channel (see Frequency
Table beep codes on P.15).
Changing the assigned frequency
• Press and hold the PTT button and the top side
function button together until the radio emits a
"warble" sound and illuminates the LED red,
confirming the radio is in channel programming
mode.
• Using the upper side function button enter the
frequency number from the table. For example to
enter frequency number 7 press the upper button
7 times. There are 8 frequencies available in total
(see Frequency Table on P.15).
1 / 3
Page:
G R A M M I N G A H T 4 4
G R A M M I N G A H T 4
beep and the LED
D I F Y I N G T H E F R E Q U
D I F Y I N G T H E F R E Q U
©
Copyright Entel UK 2012 All Rights Reserved
6 E R A D I O :
4 6 E R A D I O :
• Select the channel to be checked / modified.
E N C I E S :
E N C I E S :
Now press the PTT button to store the setting and
automatically return to the "check configuration"
mode (a long beep and flashing yellow LED will
confirm this action).
To check the entered setting, press the top side
function button.
Note: If the required frequency number is
accidentally 'past', keep pressing the button until
the "warble" sound is heard again (emitted on
button press 9). This confirms the return to the start
of the channel assigned frequency mode.
Please note: The orange button allows any setting to
be exited without saving the data. Use this button if
the data has been modified accidentally or it is not
desirable to save the changes.
Technical Support Bulletin
REF: ED026
