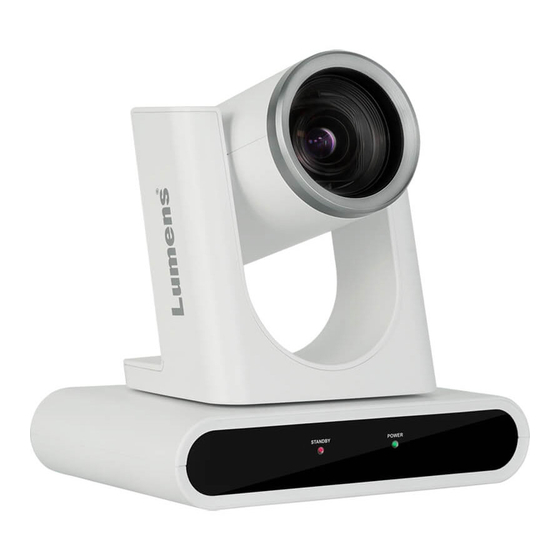

VC-R30
HD Camera
(PTZ Video Camera)
User Manual - English
[Important]
To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
https://www.MyLumens.com/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC-R30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumens VC-R30

Summary of Contents for Lumens VC-R30

  • Page 1 VC-R30 HD Camera (PTZ Video Camera) User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Package Contents ................... 2 Chapter 2 Product Overview and Interface ..............3 2.1 I/O functions Introduction ................... 3 2.2 Description of LED indicator ................4 Chapter 3 Instruction for installation ................5 3.1 Preparation before installation ................5 3.2 Instruction for installation ..................

  • Page 3: Chapter 1 Package Contents

    Chapter 1 Package Contents Quick Installation VC-R30 Remote Control Guide 3-PIN to 2-PIN Power Cord Power Adapter connector Appearance may vary (For Japan only) depending on country/ region USB 3.0 Cable HDMI cable (2m) (1.5m) English...

  • Page 4: Chapter 2 Product Overview And Interface

    Chapter 2 Product Overview and Interface I/O functions Introduction Front View Back View ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Item Function Descriptions Camera lens 12X HD camera lens Power/Standby LED Display the status of the camera indicator USB3.0 Port The USB port is for connecting to the USB port of the computer...

  • Page 5: Description Of Led Indicator

    Description of LED indicator Status Standby Power Powered off No indicator No indicator Startup in progress (initialization) Green light (flickering) Red light In use Green light Red light In standby mode No indicator Red light Powering off Green light (flickering) Red light English...

  • Page 6: Chapter 3 Instruction For Installation

    Chapter 3 Instruction for installation Preparation before installation Installation and connection of HD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident. 3.1.1 Ensure the safety of the installation environment.
  • Page 7  Install on the ceiling  Install on the wall 3.2.3 Camera Size  Length x Width x Height: 185 x 190 x 138 mm  Weight: 1.3 Kg English...

  • Page 8: Connecting Devices

    3.3.1 USB Image Output Connect to computer with a USB3.0 cable, and use Lumens USB PTZ Camera Controller software to view images and control VC-R30. You can also view images with video software, such as, Skype, Zoom and Microsoft Teams <Remark>...
  • Page 9  RS-232 pins definition instructions English...

  • Page 10: Chapter 4 Introduction Of Remote Control And Setting Menu

    Chapter 4 Introduction of Remote Control and Setting Menu Remote Control  The below functions are listed alphabetically Item Description ,,, Move the lens Back Light Turn on/off back light compensation Camera Choose camera ID 1 ~ 3 select Focus- Turn on manual focus to adjust the focal Manual / length...

  • Page 11: Setting Menu

    Setting Menu <Remark> Press [MENU] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Full Auto/ Shutter Pri/ Iris Mode Exposure mode setting Pri/ Manual/ White Board...
  • Page 12 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Adjustable when the Image Mode is Gamma 0~ A ~3 set to Custom Adjustable when the Image Mode is Sharpness 0~A~14 set to Custom Pan/Tilt Limit On/Off Turn on/off the angle limit setting Pan Right Limit...
  • Page 13 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values When the audio is not synchronized Audio Delay On/Off with the video, enable this function to set the audio delay time Audio Delay -10~-500ms Set audio delay time Time(ms) Encode Sample 48/ 44.1/ 16 KHz(AAC)

  • Page 14: Chapter 5 Network Function Settings Description

    Chapter 5 Network Function Settings Description Web System Requirements Operating Version Browser System FireFox 7 (64 bits) and above Chrome Windows Edge 10 (64 bits) and FireFox above Chrome Safari 10.14 and above Chrome FireFox Connecting Camera to Network 5.2.1 Connecting to Internet Two common connection methods are shown below 1.
  • Page 15  Enter administrator’s account and password <Remark> For the first-time login, please refer to 5.3.10 System Settings - User to change the default password Lumens Network Camera  Account: admin  Password: 9999 (Default) 5.2.3 Using RTSP Player to View the Images...

  • Page 16: Web Page Menu Function Description

    Web Page Menu Function Description 5.3.1 Login Screen ○ ○ ○ ○ ○ Item Function Descriptions User Login Account Enter user login account (default: admin) Enter user password (default: 9999) User Password <Remark> For the first-time login, please refer to 5.3.10 System Settings - User to change the default password...
  • Page 17 Pan / Tilt setting Adjust the Pan/Tilt position of the camera screen Zoom Zoom In/Zoom Out ratio AF/MF Switch AF/MF Zoom speed Adjust the zoom speed Pan Speed Adjust the horizontal moving speed of the lens Tilt Speed Adjust the vertical moving speed of the lens 5.3.3 Live Video –...
  • Page 18 Focus  AF Sensitivity: Set automatic focus sensitivity  AF Frame: Set automatic focus range  PTZ Assist: Set the auto focus function in Manual  This function can be enabled in the Manual Focus (MF) mode When PTZ Assist is enabled and PTZ control is in operation, the focus will be triggered.
  • Page 19 5.3.4 Video/Audio – Streaming ○ ○ ○ ○ ○ Item Function Descriptions Streaming 1/ Supporting 2-way streaming output Streaming 2 Enable/Disable the streaming function Enable Please refer to 5.3.4.1 Streaming Parameter Setting for relevant settings Streaming types Supporting RTSP/RTMP/RTMPS Enable/Disable Multicast Enable Multicast It is suggested to enable Multicast when the number of users online watching the live image simultaneously is more than 4...
  • Page 20 5.3.5 Video/Audio – Audio ○ ○ ○ ○ Item Function Descriptions Audio Enable Turn on/off sound Set encode sample rate  48 KHz (AAC) Encode sample rate  44.1 KHz (AAC)  16 KHz (AAC) Audio Volume Adjust Audio Volume Audio Delay After checking the box, set the audio delay time (1 ~ -500 ms) 5.3.6 Video/Audio - Picture...
  • Page 21 Saturation adjustment of the image; Adjustable when the image mode is Saturation set to Custom Sharpness adjustment of the image; Adjustable when the image mode is Sharpness set to Custom 5.3.7 System Settings – Output Setting ○ VC-R30 ○ ○ ○ ○ Item Function Descriptions Change camera name here ...
  • Page 22 5.3.8 System Settings – Network ○ ○ ○ Item Function Descriptions Network setting of camera. Change of setting is available when DHCP DHCP function is closed Set HTTP port. The default Port value is 80 HTTP port number  Change of setting is available only when DHCP function of camera is closed Set HTTPS port.
  • Page 23 System Settings – User 5.3.10 ○ ○ Item Function Descriptions Enter a user name and password to add a new user  Supporting 4 - 32 characters for user name and password Add user account  Please mix uppercase and lowercase letters or numbers for characters.
  • Page 24 Save setup parameters as a Profile, and users can download and upload Configuration camera setup parameters If the machine operates abnormally, the event log can be exported for Event Log reference of Lumens technicians 5.3.13 About Function Descriptions Display the firmware version, serial number, and other related information of the camera For technical support, please scan the QRcode at the bottom right.

  • Page 25: Chapter 6 Troubleshooting

    Chapter 6 Troubleshooting This chapter describes problems you may encounter while using VC-R30. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributors or the service center.

  • Page 26: Chapter 7 Safety Instructions

    Safety Instructions Chapter 7 Always follow these safety instructions when setting up and using VC-R30 PTZ Video Camera: 1 Operation 1.1 Please use the product in the recommended operating environment, away from water or source of heat 1.2 Do not place the product on a tilted or unstable trolley, stand or table.

  • Page 27: Supplier's Declaration Of Conformity 47 Cfr § 2.1077 Compliance Information

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer：Lumens Digital Optics Inc. Product Name：VC-R30 Model Number：PTZ Video Camera Responsible Party – U.S. Contact Information Supplier：Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail ：support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.

  • Page 28: Copyright Information

    Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
