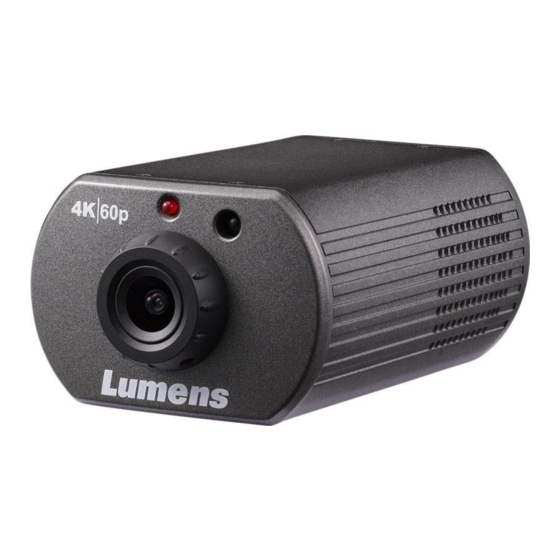

VC-BC301P Ultra HD Camera (UHD Box Camera) User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
Chapter 1 Package Contents VC-BC301P Power Cord Power Adapter Appearance may vary depending on country/region Instruction for Adapter Bracket Accessory Set installation Quick Installation Guide (For Japan only)
Chapter 2 Function Introduction 2.1 I/O functions Introduction Front View Back View Bottom NO. Item Function Descriptions IR receive Support infrared remote control Tally Lamp Display the Tally Lamp status of the camera Lens HD camera lens Power indicator Display the status of the camera DC 12 V power AC power supply connecting port connector...
Chapter 3 Instruction for installation 3.1 Basic Devices 3.1.1 VC-BC301P size Length x Width x Height : 113 x 70 x 51 mm Weight : 0.35 Kg 3.1.2 Installation method You can use the included bracket accessory kit to install the camera on the wall or table...
Chapter 5 Remote Control and Setting Menu 5.1 Functions of remote control The remote control VC-IR01 is optional accessory <Remark> The below functions are listed alphabetically. Item Description ,,, Move the lens Turn on/off back light compensation Back Light Camera Choose Camera ID 1~3 select Focus-...
5.2 Setting Menu <Remark> Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. Level Level Level Function Descriptions Major Items Minor Items Adjustment Values 1. Full Auto Mode 2.
Page 9
Level Level Level Function Descriptions Major Items Minor Items Adjustment Values 0dB/ 3 dB/ 6 dB/ 9 dB/ 12 dB/ 15 dB/ 18 dB/ 21 Adjustable when the Exposure Manual Gain dB/ 24 dB/ 27 dB/ 30 dB/ mode is set to Manual 33 dB/ 36 dB/ 39 dB/ 42 dB/ 45 dB 60/30...
Page 10
Level Level Level Function Descriptions Major Items Minor Items Adjustment Values Select the color temperature mode 1. Auto 1. 4000k ~ 7000k 2. Indoor 2. 3200k 3. Outdoor 3. 5800k Mode 4. One Push WB 4. 1700k ~ 10000k 5. ATW 5.
Page 11
Level Level Level Function Descriptions Major Items Minor Items Adjustment Values Clear Image Zoom Mode Zoom/Digital Zoom 1. Disable 2. Mirror Set the mode at which the image D-Effect Mirror 3. Flip is mirror or flipped 4. Mirror + Flip Enable/Disable DHCP setting using left and right arrow keys DHCP...
Page 12
Level Level Level Function Descriptions Major Items Minor Items Adjustment Values 1. 48 KHz(AAC) 2. 44.1 KHz(AAC) Encode Sample Set the encode type and sample 3. 16 KHz(AAC) Rate rate 4. 16 KHz(G.711) 5. 8 KHz(G.711) Turn on/off the prompt information Prompt On/Off on the display...
Safari 12.1 or above 6.1.2 Using Lumens VMS Software to View the Images The VC-BC301P DHCP initial setting is ON. If VC-BC301P is connected to the local area network (LAN), the camera IP can be retrieved via the following methods ...
Page 14
6.1.3 Using the Browser to View the Images Open the browser, and enter the URL of VC-BC301P in the IP address bar E.g.: http://192.168.100.100 (default IP address) Enter administrator’s account and password Account: admin (Default) Password: 9999 (Default) 6.1.4 Using RTSP Player to View the Images...
Web Page Function Description 6.2.1 Login Screen Item Function Descriptions Username Enter user account (default: admin) Password Enter user password (default: 9999) Currently, the system supports English, Traditional Chinese and Language selection Simplified Chinese Save user account name and password to the browser. When you log Remember password in next time, there is no need to re-enter them Login...
Page 17
6.2.2 Viewing In Real Time Item Function Descriptions Pan/Tilt setting Adjust the Pan/Tilt position of the camera screen (ePTZ) Zoom ratio Adjust the zoom-in or zoom-out ratio via scroll bar Preview window Display the screen currently captured by the camera Power button Turn on or turn off the camera power Preset setting...
Page 18
6.2.3 Account Management Item Function Descriptions Add user account Enter a user name and password to add a new user Set the new account management permissions User Type Admin Operator Viewer View Images Permission setting Settings Account Management Applying setting Add the newly created user to the list of account Edit: Modify the user password and permissions List of accounts...
Page 19
6.2.4 Setting - System Setting Item Function Descriptions Set the resolution of the camera, resolutions supported by the camera are as follows: 3840x2160/60p/ 59.94p/ 50p/ 30p/ 29.97p/ 25p 1080p/60/ 59.94/ 50/ 30/ 29.97/ 25 Resolution 720p/60/ 59.94/ 50/ 30/ 29.97/ 25 ...
Page 20
6.2.5 Setting - Video Item Function Descriptions Modify the camera name Camera names are limited to 1-12 characters Camera name Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use “/” and “space” or special symbols Modify the location of the camera, such as ROOM 1 ...
Page 21
6.2.5.1 Streaming parameter setting Function Streaming 1 Streaming 2 Streaming 3 Encode Format H.265 H.264 Resolution 4K / 1080P / 720P 1080P / 720P 640x360 Frame Rate Setting according to the supported resolution Range 2,000~20,000 2,000~20,000 512~5,000 Bit Rate(kbps) Factory 15,000 7,500 1,000...
Page 22
White Mode: Select the color temperature mode Balance Auto Indoor Outdoor One Push WB ATW Manual Sodium Lamp Open Push WB: One push color temperature is adjustable when the white balance mode is set to “One Push WB” ...
Page 23
6.2.7 Setting - Picture Item Function Descriptions Picture Effect Set picture effect, Off/Neg/Black and White 2D noise reduction 2D noise reduction settings, selecting from Off/1/2/3 settings 3D noise reduction 3D noise reduction settings, selecting from Off/Low/Typ/Max settings By selecting Default/Custom, the user may customize his/her desired Image mode image mode When no custom setting is needed, reset the picture parameters back...
Page 24
6.2.8 Setting - Audio Item Function Descriptions Open audio Turn on/off sound Soundtrack effect Set MIC In/Line In setting Audio Volume Adjust Audio Volume Audio Delay Turn on/off audio delay Audio Delay Time Set audio delay time for -1~-500 ms Encode Format Set encode format as ACC/G.711 Set audio sample rate...
Page 25
6.2.9 Setting - Network Item Function Descriptions Network setting of camera. Change of setting is available only when DHCP Network function is closed. Copy the RTMP/RTMP-S web address provided by the RTMP/RTMP-S service platform and paste it to the RTMP/RTMP-S connection address to RTMP/RTMP-S publish the camera images on the RTMP/RTMP-S service platform Setting...
Page 26
SRT Setting 1. Set the field of SRT and then check the item to open SRT streaming After the SRT streaming is opened, it will be connected automatically upon startup 2. The port number must be set in the range above 1024 with a maximum value of 9999 The following port has been used by the camera.
Page 27
6.2.11 Setting - Maintenance - Upgrading Firmware Item Function Descriptions The camera firmware may be upgraded via web page. For the upgrade Firmware Update method, please download the FW upgrade manual from Lumens official website 6.2.12 Setting - Maintenance - Incident Log Item Function Descriptions...
Page 28
The web page setting parameters can be exported from the computer Setting File and imported/applied to another camera Setting - Maintenance - Reboot 6.2.14 VC-BC301P Item Function Descriptions Reboot Reboot immediately Disable Disable the reboot settings Set the daily reboot time Daily reboot <Remark>...
Page 29
About 6.2.15 Item Function Descriptions Camera name Display the camera name Firmware Version Display the firmware version of the camera Serial No. Display the camera serial No.
Chapter 7 Troubleshooting This chapter describes problems you may encounter while using VC-BC301P. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.
Chapter 8 Safety Instructions Always follow these safety instructions when setting up and using the VC-BC301P UHD Box Camera: 1 Operation 1.1 Please use the product in the recommended operating environment, away from water or source of heat. 1.2 Do not place the product on a tilted or unstable trolley, stand or table.
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer:Lumens Digital Optics Inc. Product Name:VC-BC301P Model Number:UHD Box Camera Responsible Party – U.S. Contact Information Supplier:Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail :support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
