Summary of Contents for Lumens VC-BC601P

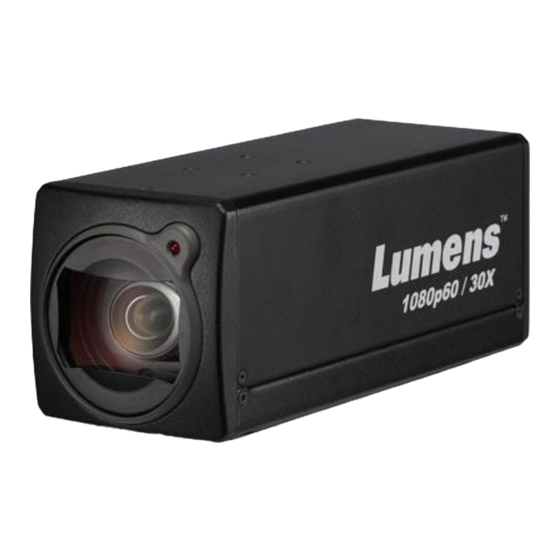

- Page 1 VC-BC601P HD Camera (FHD Box Camera) User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Table of Contents Copyright Information ..................2 Chapter 1 Safety Instructions ............... 3 Chapter 2 Package Contents ................. 5 Chapter 3 Function Introduction ..............6 3.1 I/O functions Introduction ................6 3.2 Tally Indicator Light Function Description ........... 7 Chapter 4 Instruction for installation............8 4.1 Basic Devices .................... -
Page 3: Copyright Information
Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice. -
Page 4: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the product: 1 Operation 1.1 Please use the product in the recommended operating environment. 1.2 Do not place the product in tilted position. 1.3 Do not place the product on an unstable trolley, stand or table. 1.4 Do not use the product near water or source of heat. - Page 5 Caution Risk of Electric Shock Please do not open it by yourself Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel. This symbol indicates that This symbol indicates that there are important operating this equipment may contain...
-
Page 6: Chapter 2 Package Contents
Chapter 2 Package Contents VC-BC601P Power Cord Power Adapter Appearance may vary depending on country/region Instruction for installation Quick Installation Guide English - 5... -
Page 7: Chapter 3 Function Introduction
Chapter 3 Function Introduction 3.1 I/O functions Introduction NO. Item Function Descriptions Lens 30x HD camera lens Tally indicator light Display the tally light status of the camera Network port, support routers or hubs (IEEE 802.3 af) with PoE power Network port supply support 3G-SDI output... -
Page 8: Tally Indicator Light Function Description
3.2 Tally Indicator Light Function Description 3.2.1 The tally indicator light function may be enabled through the control of VISCA command. The setting method is as follows Tally Mode: 8x 01 7E 01 0A 01 0p FF p = 0: OFF p = 4: On (half-brightness) p = 5: On (full-brightness) English - 7... -
Page 9: Chapter 4 Instruction For Installation
Weight : 1 Kg 4.1.2 Installation method 4.1.2.1 Wall-mounted frame: The camera is installed on the wall, using Lumens VC-WM11 (optional) wall-mounted frame 4.1.2.2 Tripod: The camera is mounted on a 1/4”, 20 UNC PTZ tripod deck English - 8... -
Page 10: Connecting Devices
4.2 Connecting devices 4.2.1 Using HDMI/3G-SDI connect to the screen HDMI/3G-SDI cable Monitor HDTV 4.2.2 Connecting to Internet Network cable Router or Hub <Remark> For details of web page connection setting and description, please refer to Chapter 5 Network Function Settings Description. - Page 11 4.2.4 Connecting RS-232 RS-232 serial connection With RS-232 in/out, at most 7 Lumens cameras can be connected. RS-232 pin definition description English - 10...
-
Page 12: Chapter 5 Network Function Settings Description
To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera e.g.: The factory-preset default IP address of VC-BC601P is 192.168.100.100. The computer IP address must be set with the same network segment, such as 192.168.100.101, so that the computer can be connected correctly with the camera ... - Page 13 Change network settings 5.2.2 Using Lumens VMS Software to View the Images The VC-BC601P DHCP initial setting is ON. If VC-BC601P is connected to the local area network (LAN), the camera IP can be retrieved via the following methods ...
- Page 14 5.2.3 Using the Browser to View the Images Open the browser, and enter the URL of VC-BC601P in the IP address bar e.g.: http://192.168.100.100 (default IP address) Enter administrator’s account and password *For the first login, please refer to 5.3.3 User Management Modify...
- Page 15 English - 14...
-
Page 16: Web Page Function Description
5.3 Web Page Function Description 5.3.1 Login Screen Item Function Descriptions Username Enter user account (default: admin) Password Enter user password (default: 9999) Currently, the system supports English, Traditional Chinese and Simplified Chinese Language selection *For the first login, please refer to 5.3.3 User Management Modify default password Save user account name and password to the browser. - Page 17 5.3.2 Viewing In Real Time VC-BC601P Item Function Descriptions Preset setting Select the number first and then select SAVE or LOAD Zoom ratio Adjust the zoom-in or zoom-out ratio via scroll bar Preview window Display the screen currently captured by the camera...
- Page 18 Item Function Descriptions Add user account Enter a user name and password to add a new user Set the new account management permissions User Type Admin Operator Viewer View images Permission setting Settings Account management Applying setting Add the newly created user to the list of accounts Edit: Modify the user password and permissions List of accounts Delete: Delete the user account...
- Page 19 Please use a camera location by mixing uppercase and lowercase letters or numbers. Do not use “/” and “space” or special symbols Streaming 1/Streaming VC-BC601P supports 3 streaming outputs. Please refer to 5.3.5.1 2/Streaming 3 Streaming Parameter Setting for relevant settings...
- Page 20 5.3.6 Setting - Camera VC-BC601P Item Function Descriptions Zoom ratio Adjust the zoom-in or zoom-out ratio via scroll bar Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/ Exposure Manual) Exposure Comp. Level: Select exposure compensation level Gain: The gain limit is adjustable when the exposure mode is set to “Manual”...
- Page 21 ATW Manual Sodium Lamp Open Push WB: One push color temperature is adjustable when the white balance mode is set to “One Push WB” Manual Red/Blue: Manually adjust blue/red color temperature Focus Mode: Select manual/automatic focus ...
- Page 22 5.3.7 Setting - Picture VC-BC601P Item Function Descriptions Picture Effect Set picture effect, Off/Film/Black and White 2D NR settings 2D noise reduction settings, selecting from Off/1/2/3 3D NR settings 3D noise reduction settings, selecting from Off/Low/Typ/Max By selecting Default/Custom, the user may customize his/her desired...
- Page 23 5.3.8 Setting - Audio VC-BC601P Item Function Descriptions Audio Enable Turn on/off sound Audio In Type Set MIC In/Line In Audio Volume Adjust Volume Set Encode sample rate 48 KHz (AAC) Encode sample rate 44.1 KHz (AAC) ...
- Page 24 5.3.9 Setting - Network Item Function Descriptions Network setting of camera. Change of setting is available only when DHCP Network function is closed. Copy the RTMP web address provided by the RTMP service platform and paste it to the RTMP connection address to publish the camera images on the RTMP RTMP Setting service platform To upload to YouTube for live streaming, the audio function must be turned on first...
- Page 25 Set HTTP and HTTPS ports. The default values are Port 80 and Port 81 respectively Port Setting <Remark> Change of setting is available only when DHCP function of camera is closed 5.3.10 Setting - Time VC-BC601P Item Function Descriptions Camera Time Display the date and time of the camera ...
- Page 26 VC-BC601P Item Function Descriptions The camera firmware may be upgraded via web page. For the upgrade Firmware Update method, please download the FW upgrade manual from Lumens official website 5.3.12 Setting - Maintenance - Error Log VC-BC601P Item Function Descriptions...
- Page 27 5.3.13 Setting - Maintenance - System Service VC-BC601P Item Function Descriptions Select the reset button to resume the factory default setting as the web Factory Reset page setting The web page setting parameters can be exported from the computer Setting Porfile...
-
Page 28: Chapter 6 Troubleshooting
Chapter 6 Troubleshooting This chapter describes problems you may encounter while using VC-BC601P. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.
