11. Removal Procedure

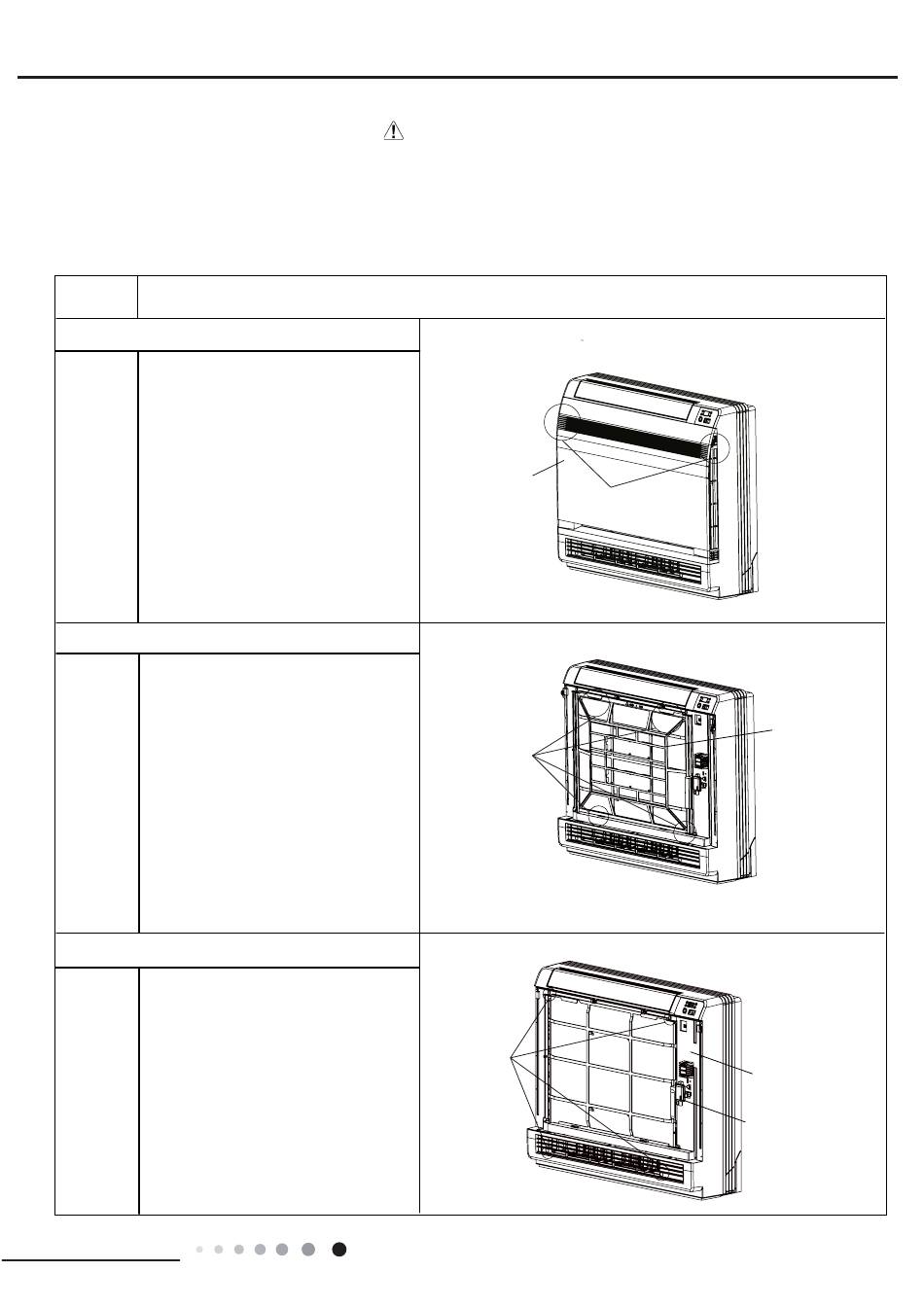

11.1 Removal Procedure of Indoor Unit
Steps
1. Remove panel
Pull sliding clasps at both sides of panel,
pull out the panel outwards and then
move the panel upwards to remove it.
2. Remove filter sub-assy
Pull the damping clasps at upper/lower
side of filter sub-assy, and then move the
filter sub-assy outwards to remove it.
3. Remove test board and front case
Remove one screws fixing the test board,
and t hen pull the test board outwards to
remove it.
Remove
and then pull the front case outwards to
remove it.
Installation and Maintenance
4 screws fixing the front case,
Warning: Be sure to wait for a minimum of 20 minutes
after turning off all power supplies and discharge the
refrigerant completely before removal.
Procedure
panel
sliding clasps
damping clasps
screws
filter sub-assy
front case
test board
69
