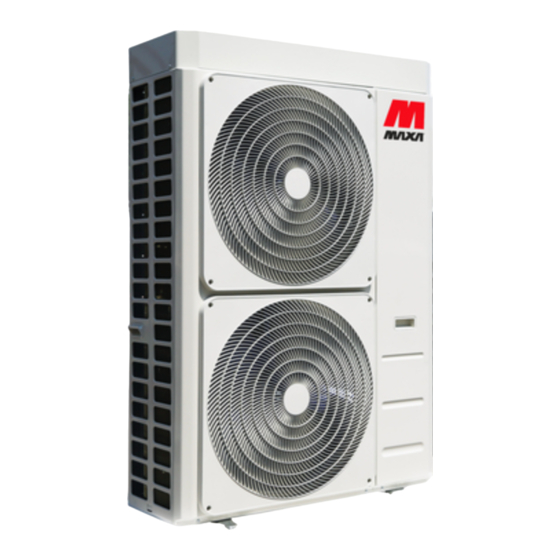

Chiller and inverter air/water heat pumps with axial fans
Hide thumbs Also See for i-32V504:
Table of Contents

Advertisement

Quick Links

Chiller and Inverter Air/Water heat pumps with axial fans
Controller Manual
Model
i-32V504
i-32V506
i-32V508, i-32V5SL08
i-32V510
i-32V510T
i-32V512, i-32V5SL12
This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the
explanations and/or on the technical specifications provided in this manual. It is besides forbidden the reproduction under any form of the texts and of the figures
contained in this manual. This manual is a translation from the official italian language version. For reasons of environmental respect the Company will not provide
the hard copy in the original language which could be directly requested or downloaded from the Company website at any time. In case of any dispute, the original
language manual will be the trusted one. Even partial reproduction PROHIBITED © Copyright - Advantix SpA
www.maxa.it
i-32V512T, i-32V5SL12T
i-32V514
i-32V514T
i-32V516, i-32V5SL16
i-32V516T, i-32V516T
i-32V518T
R32
