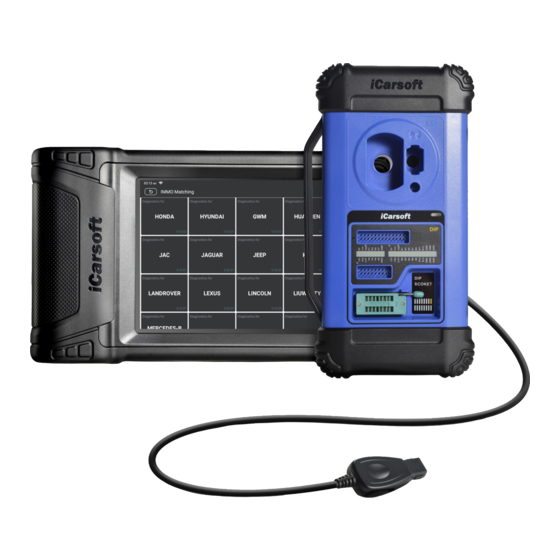

iCarsoft CR IMMO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Copyright Information
Copyright © 2021 by Icarsoft Technology Inc. (also called iCarsoft for short). All rights
reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying and
recording or otherwise, without the prior written permission.
Statement: iCarsoft owns the complete intellectual property rights for the software used by
this product. For any reverse engineering or cracking actions against the software,
iCarsoft will block the use of this product and reserve the right to pursue its legal liabilities.
Disclaimer of Warranties and Limitation of Liabilities
All information, illustrations, and specifications in this manual are based on the latest
information available at the time of publication.
The right is reserved to make changes at any time without notice. We shall not be liable
for any direct, special, incidental, indirect damages or any economic consequential
damages (including the loss of profits) due to the use of the document.
Important Safety Precautions
To avoid personal injury, property damage, or accidental damage to the product, read all
of the information in this section before using the tool.
DANGER
• When an engine is operating, keep the service area well-ventilated or attach a building
exhaust removal system to the engine exhaust system. Engines produce various
poisonous compounds (hydrocarbon, carbon monoxide, nitrogen oxides, etc.) that
cause slower reaction time and result in death or serious personal injury.
• Please use the included battery and power adaptor. Risk of explosion if the battery is
replaced with an incorrect type.
• DO NOT attempt to operate the tool while driving the vehicle. Have a second person to
operate the tool. Any distraction may cause an accident.
WARNING
Always perform automotive testing in a safe environment.
Do not connect or disconnect any test equipment while the engine is running.
Before starting the engine, put the gear lever in the Neutral position (for manual
transmission) or in the Park (for automatic transmission) position to avoid injury.
NEVER smoke or allow a spark or flame in vicinity of battery or engine. Do not operate
the tool in explosive atmospheres, such as in the presence of flammable liquids, gases,
or heavy dust.
Keep a fire extinguisher suitable for gasoline/chemical/electrical fires nearby.
i
CR IMMO User Manual
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR IMMO and is the answer not in the manual?

Questions and answers

Related Manuals for iCarsoft CR IMMO

Summary of Contents for iCarsoft CR IMMO

  • Page 1 Statement: iCarsoft owns the complete intellectual property rights for the software used by this product. For any reverse engineering or cracking actions against the software, iCarsoft will block the use of this product and reserve the right to pursue its legal liabilities. Disclaimer of Warranties and Limitation of Liabilities All information, illustrations, and specifications in this manual are based on the latest information available at the time of publication.
  • Page 2 CR IMMO User Manual Wear an ANSI-approved eye shield when testing or repairing vehicles. Put blocks in front of the drive wheels and never leave the vehicle unattended while testing. Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark plugs.

  • Page 3: Table Of Contents

    CR IMMO User Manual Table of Contents 1 Packing List....................1 2 Overview......................2 2.1 Introduction..................2 2.2 Display Tablet..................3 2.3 VCI Dongle..................4 2.4 IM2000 PRO..................5 3 Initial Use....................... 6 3.1 Charging..................... 6 3.2 Power On & Off..................6 3.3 Basic Operations................6 3.4 Change System Language..............

  • Page 4: Packing List

    CR IMMO User Manual 1 Packing List The following accessory items are only for reference. Please consult from the local agency or check the package list supplied with this tool together. Item Descriptions CR IMMO Main Unit VCI dongle IM2000 PRO...

  • Page 5: Overview

    CR IMMO User Manual Connect the programmer and vehicle dashboard, INS Cable V1 and then place the probe (the yellow lead) to the designated area. After removing the vehicle dashboard, connect INS Cable V2 programmer, vehicle dashboard, and the cable.

  • Page 6: Display Tablet

    CR IMMO User Manual 2.2 Display Tablet Docking slot for VCI dongle - for housing the VCI dongle. 2. VCI dongle - It is pre-installed in the docking slot on the top of the display tablet. Use the hand to press the dongle once, it will be automatically ejected from the docking slot.

  • Page 7: Vci Dongle

    CR IMMO User Manual Technical Parameters • CPU: 4-Core 1.8GHz • Memory: 4GB • ROM: 64GB • Screen Size: 8 inches • Resolution: 1280*800 pixel • Camera: 8MP rear-facing camera • Working Voltage: 5V • Working Current: 3A • Working Environment: 0 •...

  • Page 8: Im2000 Pro

    CR IMMO User Manual 2.4 IM2000 PRO The IM2000 PRO works as a dedicated anti-theft immobilizer programmer. It needs to work with the display tablet to perform the IMMO Matching (for some vehicles) and IMMO Programming operations. 1. DB26 diagnostic connector - Connects with the Mercedes Benz infrared collector, ECU cable and MCU cable etc.

  • Page 9: Initial Use

    CR IMMO User Manual 3 Initial Use 3.1 Charging Follow the steps below to charge the tablet: 1. Connect one end of the charging cable to the USB socket of the power adapter. 2. Connect the other end to the charging port on the bottom of the host.

  • Page 10: Network Setup

    CR IMMO User Manual 3.5 Network Setup The tablet has a built-in Wi-Fi communication module. Once you’re online, you can register your tool, update diagnostic software & APK, browse the Internet and send email on your network. 1. In the Job Menu, tap Settings -> Network & Internet -> Wi-Fi.

  • Page 11: Getting Started

    CR IMMO User Manual 3. Download diagnostic software: Tap OK to enter the update center to download all available software. B. If you have registered to be a member, input your name and password, and then tap Login to enter the main menu screen directly.

  • Page 12: Communication Setup

    CR IMMO User Manual • Find DLC location. The DLC (Data Link Connector or Diagnostic Link Connector) is usually located 12 inches from the center of the instrument panel, under or around the driver’s side for most vehicles. For some vehicles with special designs, the DLC location may vary.

  • Page 13: Immobilizer Operations

    CR IMMO User Manual 5 Immobilizer Operations 5.1 Anti-theft matching This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
  • Page 14 CR IMMO User Manual 1. Tap IMMO Matching and select BMW to enter the software. 2. Tap OK. 3. Enter the Anti-Theft System, follow the illustration below to connect the VCI dongle, vehicle and IM2000 PRO to perform the next step.
  • Page 15 CR IMMO User Manual 4. If you don’t know the type of the anti-theft System, tap Intelligent Mode to enter. 5. Tap CAS4/CAS4+ anti-theft System, the following screen will appear: 6. Tap Preprocessing to perform Read anti-theft data, Key matching and more.
  • Page 16 CR IMMO User Manual 9. Return to the function menu and tap Key Learning. 10. After the key information successfully read, select the unused key position and tap Key Generated By Ignition Switch. 11. Read and display the password, and tap OK.

  • Page 17: Immo Programming

    CR IMMO User Manual 13. After the dealer key is successfully generated, please try to start the vehicle. 14. Now the key matching is finished and the new key is ready for use. 5.2 IMMO Programming The IM2000 PRO is required when performing this operation. It has the following functions: •...
  • Page 18 CR IMMO User Manual A. Main diagnostic cable B. OBD I adaptor C. Switching power supply of the IM2000 PRO Notes: You are suggested to connect the VCI dongle shown in below diagram to the tablet via the USB cable. Using a USB cable could effectively enhance your data transmission speed.
  • Page 19 CR IMMO User Manual EEPROM Programming 5.2.1 This function allows you to read/write on-board EEPROM chip data. Engine Programming 5.2.2 This function allows you to read the engine data and write in the backup data after a new engine is replaced.
  • Page 20 CR IMMO User Manual 4. Check ECU model (printed on the sticker on the back of your Engine), enter the engine type in the dialogue box (for example , the engine type should be MED17.7.7) and tap OK. 5. Tap OK to confirm the engine type and enter the function selection screen.
  • Page 21 CR IMMO User Manual D. BENCH mode cable E. Adaptor cable associated with the BENCH mode cable F. Engine b. Tap Backup EEPROM data to create a file name and save it on the tablet. c. Tap Restore EEPROM data to write the backup EEPROM data into the new engine.
  • Page 22 CR IMMO User Manual replacement, and then manually input the original CS code or get the original CS code from the original key. Situation 1: 1. Tap Gearbox. 2. Select Gearbox type according to the specific model, here we choose DQ200-MQB (take this as an example) to enter the function selection screen.
  • Page 23 CR IMMO User Manual D. BENCH mode cable E. Adaptor cable for the BENCH mode cable G. Gearbox ECU 4. Tap Connect to read the chip ID of the original car gearbox. 5. Tap Backup EEPROM Data to read the EEPROM data of the original car gearbox and then enter the new file name to save it on the tablet.
  • Page 24 CR IMMO User Manual 10.Tap Restore FLASH Data to write the FLASH data of the original vehicle gearbox backed up in step 6 into the new gearbox ECU. Situation 2: 1. Tap Gearbox. 2. Select Gearbox type according to the specific model, here we choose DQ200-...
  • Page 25 CR IMMO User Manual Note: The function selection screen varies by differentvehicle manufacturers. 3. Tap View Writing Diagram to view how to connect the original car gearbox ECU with IM2000 PRO using the BENCH mode cable and its associated adaptor cable.
  • Page 26 CR IMMO User Manual Tap Anti-theft Matching, choose VW to enter the anti-theft system, select MQB Instrument -> Replacement Of Parts -> Transmission, tap OK.
  • Page 27 CR IMMO User Manual 8. Tap YES to enter the gearbox replacement screen.
  • Page 28 CR IMMO User Manual 9. When replacing the transmission ECU, two groups of anti-theft data are required: • Anti-theft data of transmission engine (backed up in step 5) • Anti-theft data of the target vehicle 1). Select Edit1, tap NO, tap Obtain From EEPROM Data, select the new gearbox EEPROM data backed up in step 5, and tap OK.
  • Page 29 CR IMMO User Manual Note: If there is no anti-theft data of the target vehicle, select Original Vehicle Key Obtained, put the original vehicle key in the IM2000 PRO, and just follow the prompts to obtain it, no need to enter any data to complete the replacement.

  • Page 30: Diagnose

    CR IMMO User Manual Note: If Original Vehicle Key Obtained is selected in step 8, the vehicle’s VIN code, power level and CS code in this step will be automatically obtained. The user is not required to enter any data to complete the replacement.

  • Page 31: Manual Selection

    CR IMMO User Manual Camera Scan: This mode allows you to identify the vehicle model via scanning the vehicle’s VIN. Once scanning is complete, the tablet will enter the diagnostic software of the vehicle directly. Enter VIN: In this mode, input the VIN manually to enter the diagnostic software of the vehicle.
  • Page 32 CR IMMO User Manual Systems with fault codes are displayed in red. Systems functioning normally are displayed in black. Explanation of terms: Report: Tap to save the diagnostic result as a diagnostic report in text format. Help: Tap to view the help information of the selected DTC.
  • Page 33 CR IMMO User Manual A. Read Fault Code This function displays the detailed information of DTC records retrieved from the vehicle’s control system. Tap Read Fault Code on the test function selection screen, the screen will display the diagnostic result.
  • Page 34 CR IMMO User Manual Notes: Tap to set the display style. indicates sticky top. B indicates this item will be displayed in Bold. A indicates this item will be displayed in Red. There are 3 types of display modes available for data viewing, allowing you to view various types of parameters in the most suitable way.

  • Page 35: Maintenance

    CR IMMO User Manual Available test vary by vehicle manufacturer, year and model. F. Special Function In addition to amazing & powerful diagnostic function, the tool also features various reset functions, which varies from vehicle to vehicle. 7Maintenance This module provides an easy dial to quickly access the most commonly performed service functions as following.
  • Page 36 CR IMMO User Manual To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
  • Page 37 CR IMMO User Manual Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
  • Page 38 CR IMMO User Manual case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality. 7.13 AFS (Adaptive Front-lighting System) Reset This feature is used to initialize the adaptive headlamp system. According to...

  • Page 39: Feedback

    CR IMMO User Manual and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal. 7.24 AdBlue Reset (Diesel Engine Exhaust Gas Filter) After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

  • Page 40: Report Printing

    CR IMMO User Manual By default, all diagnostic software is selected. To deselect certain software, tap Unselect, and then check the box next to vehicle model. Tap Update to start downloading. Once download is finished, the software packages will be installed automatically.
  • Page 41 CR IMMO User Manual 4. Tap “Default Print Service”, and choose “Add printer by IP address”. 5. Input the IP address of the printer, and add the printer. 6. Choose the printer, and click the icon to printing the report.

  • Page 42: Personal Center

    2. Connect the device to the PC via USB cable (Type A to Type C). 3. Cope the report files (.PDF), and paste to the PC. Note: The path of the report files is: .\cnlaunch\CR IMMO\images\ 4. Print the report from the printer connected to the PC.
  • Page 43 CR IMMO User Manual 11.4 Subscription Renewal Card This item is used to check the status of the subscription renewal card. 11.5 Profile Use this item to view and configure personal information. 11.6 Change Password Use this item to change the password of the login account.
  • Page 44 The exclusive remedy for any automotive meter found to be defective is repair or replacement, and iCarsoft shall not be liable for any consequential or incidental damages.
  • Page 45 CR IMMO User Manual FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
  • Page 46 être utilisé dans des conditions d ‘exposition portables illimitées. Statement: iCarsoft reserves the rights to make any change to product designs and specifications without notice. The actual object may differ a little from the descriptions in the manual in physical appearance, color and configuration. We have...
  • Page 47 électronique, mécanique, par photocopie et enregistrement ou autrement, sans l'autorisation préalable écrite. Déclaration: iCarsoft détient les droits de propriété intellectuelle complets pour le logiciel utilisé par ce produit. Pour toute action d'ingénierie inverse ou de piratage du logiciel, nous bloquerons l'utilisation de ce produit et nous nous réservons le droit de poursuivre...
  • Page 48 CR IMMO User Manual Précautions de sécurité importantes Pour éviter des blessures corporelles, des dommages matériels ou des dommages accidentels au produit, lisez toutes les informations contenues dans cette section avant d'utiliser l'outil. DANGER • Lorsqu'un moteur fonctionne, gardez la zone de service bien ventilée ou fixez un système d'évacuation du bâtiment au système d'échappement du moteur.
  • Page 49 CR IMMO User Manual Les batteries automobiles contiennent de l’acide sulfurique nocif pour la peau. Pendant l'opération, éviter tout contact avec l’acide de la batterie. Gardez toujours les sources d'inflammation à l'écart de la batterie. Gardez l'outil sec, propre, exempt d'huile, d'eau ou de graisse. Utilisez un détergent doux sur un chiffon propre pour dégager l'extérieur de l'équipement si nécessaire.
  • Page 50 CR IMMO User Manual Table des matières 1 Contenu du pack..................1 2 Vue d'ensemble................... 2 2.1 Introduction..................2 2.2 Dongle VCI..................4 2.3 IM2000 PRO..................5 3 Utilisation initiale..................6 3.1 Charge....................6 3.2 Mise sous et hors tension..............6 3.3 Opérations de base................6 3.4 Changer la langue du système............

  • Page 51: Contenu Du Pack

    CR IMMO User Manual Contenu du pack Cette liste est fournie à titre indicatif, suivant les revendeurs, le contenu du pack peut être différent. Contacter votre vendeur pour plus d’informations. Numéro Article Descriptions CR IMMO L'Unité principale Dongle VCI IM2000 PRO...

  • Page 52: Vue D'ensemble

    CR IMMO User Manual Connectez le programmeur et le tableau de bord Câble INS V1 du véhicule, puis placez la sonde (le plomb jaune) à la zone désignée. Après avoir retiré le tableau de bord du véhicule, Câble INS V2 connectez le programmeur, le tableau de bord du véhicule et le câble.
  • Page 53 CR IMMO User Manual Emplacement d'amarrage pour dongle VCI-pour le logement de dongle VCI. 2. Dongle VCI - Il est pré-installé dans la fente d'accueil sur le dessus de la tablette d'affichage. Utilisez la main pour appuyer sur le dongle une fois, il sera automatiquement éjecté...

  • Page 54: Dongle Vci

    CR IMMO User Manual • Résolution: 1280*800 pixel • Caméra: Caméra arrière 8MP • Tension de travail: 5V • Courant de travail: 3A • Environnement de travail: 0 • Environnement de stockage: -10 2.2 Dongle VCI Ce dongle fonctionne comme un dispositif VCI (Interface de communication du véhicule).

  • Page 55: Im2000 Pro

    CR IMMO User Manual 2.3 IM2000 PRO L'IM2000 PRO fonctionne comme un programmeur d’antidémarrage antivol dédié. Il doit fonctionner avec la tablette d'affichage pour effectuer les opérations de correspondance IMMO (pour certains véhicules) et de programmation IMMO. 1. Connecteur de diagnostic DB26-Se connecte au collecteur infrarouge Mercedes Benz, au câble ECU et au câble MCU etc.

  • Page 56: Utilisation Initiale

    CR IMMO User Manual Paramètres techniques • Tension d'entrée: 12 V • Courant d'entrée: 500mA • Environnement de travail: 0 • Environnement de stockage: -20 3 Utilisation initiale 3.1 Charge Suivez les étapes ci-dessous pour charger la tablette: Connectez une extrémité du câble de charge à la prise USB de l'adaptateur secteur.

  • Page 57: Changer La Langue Du Système

    CR IMMO User Manual précédent ou aux sorties. Changer la langue du système L'outil prend en charge plusieurs langues. Pour changer la langue de l'outil, veuillez procéder comme suit: 1. Sur l'écran d'accueil, appuyez sur Paramètres-> Système-> Langue et entrée- >...
  • Page 58 CR IMMO User Manual A. Si vous êtes un nouvel utilisateur, appuyez sur Nouvel enregistrement et suivez les instructions à l'écran pour terminer l'inscription. 1. Créer un compte App: Remplissez les informations dans chaque champ (les éléments avec * doivent être remplis). Après la saisie, appuyez sur S'inscrire.

  • Page 59: Pour Commencer

    CR IMMO User Manual Pour Commencer Menu principal Il comprend principalement les éléments suivants: Cette fonction vous permet d'effectuer fonction d'appariement de la clé antivol, de sorte que le système de Adaptation IMMO contrôle antidémarrage sur la voiture identifie et autorise les clés de contrôle à...

  • Page 60: Configuration De La Communication

    CR IMMO User Manual Connexion du véhicule 4.2.2 Suivez les étapes mentionnées ci-dessous pour connecter le véhicule en OBDII : Localisez la prise OBD du véhicule. Branchez le dongle VCI dans la prise OBD du véhicule (il est suggéré d’utiliser le câble d’extension OBDII pour connecter le dongle VCI et la prise OBD).

  • Page 61: Fonctionnements D'anti-Démarrage

    CR IMMO User Manual 5 Fonctionnements d'anti-démarrage 5.1 Correspondance anti-vol Cette fonction vous permet d'effectuer la fonction d'appariement de la clé antivol, de sorte que le système de contrôle antidémarrage sur la voiture identifie et autorise les clés de contrôle à distance pour normalement utiliser la voiture.
  • Page 62 CR IMMO User Manual 1. Appuyez sur Adaptation IMMO et sélectionnez BMW pour entrer dans le logiciel. 2. Appuyez sur OK. 3. Entrez dans le système antivol, suivez l'illustration ci-dessous pour connecter le dongle VCI, le véhicule et IM2000 PRO pour effectuer l'étape...
  • Page 63 CR IMMO User Manual 4. Si vous ne connaissez pas le type du système antivol, appuyez sur Mode intelligent pour entrer. 5. Appuyez sur Système antivol CAS4/CAS4, l'écran suivant apparaîtra: 6. Appuyez sur Prétraitement pour effectuer la lecture des données antivol, la correspondance des clés et plus encore.
  • Page 64 CR IMMO User Manual 9. Revenez au menu des fonctions et appuyez sur Apprentissage des clés. 10. Une fois les informations clés lues avec succès, sélectionnez la position clé inutilisée et appuyez sur Clé générée par le commutateur d'allumage. 11. Lisez et affichez le mot de passe, et appuyez sur OK.

  • Page 65: Programmation Immo

    CR IMMO User Manual 12. Placez une nouvelle clé à proximité de la bobine du véhicule, appuyez sur OK et attendez que la clé génère. 13. Une fois la clé du concessionnaire générée avec succès, veuillez essayer de démarrer le véhicule.
  • Page 66 CR IMMO User Manual A. Câble de diagnostic principal B. Adaptateur OBD I C. Commutation de l'alimentation électrique de l'IM2000 PRO Remarques: Il vous est suggéré de connecter le dongle VCI illustré dans le diagramme ci-dessous à la tablette via le câble USB. L'utilisation d'un câble USB pourrait améliorer efficacement votre vitesse de transmission de données.
