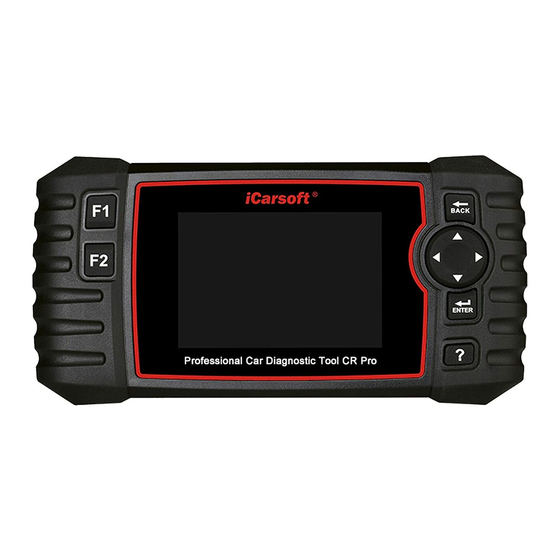

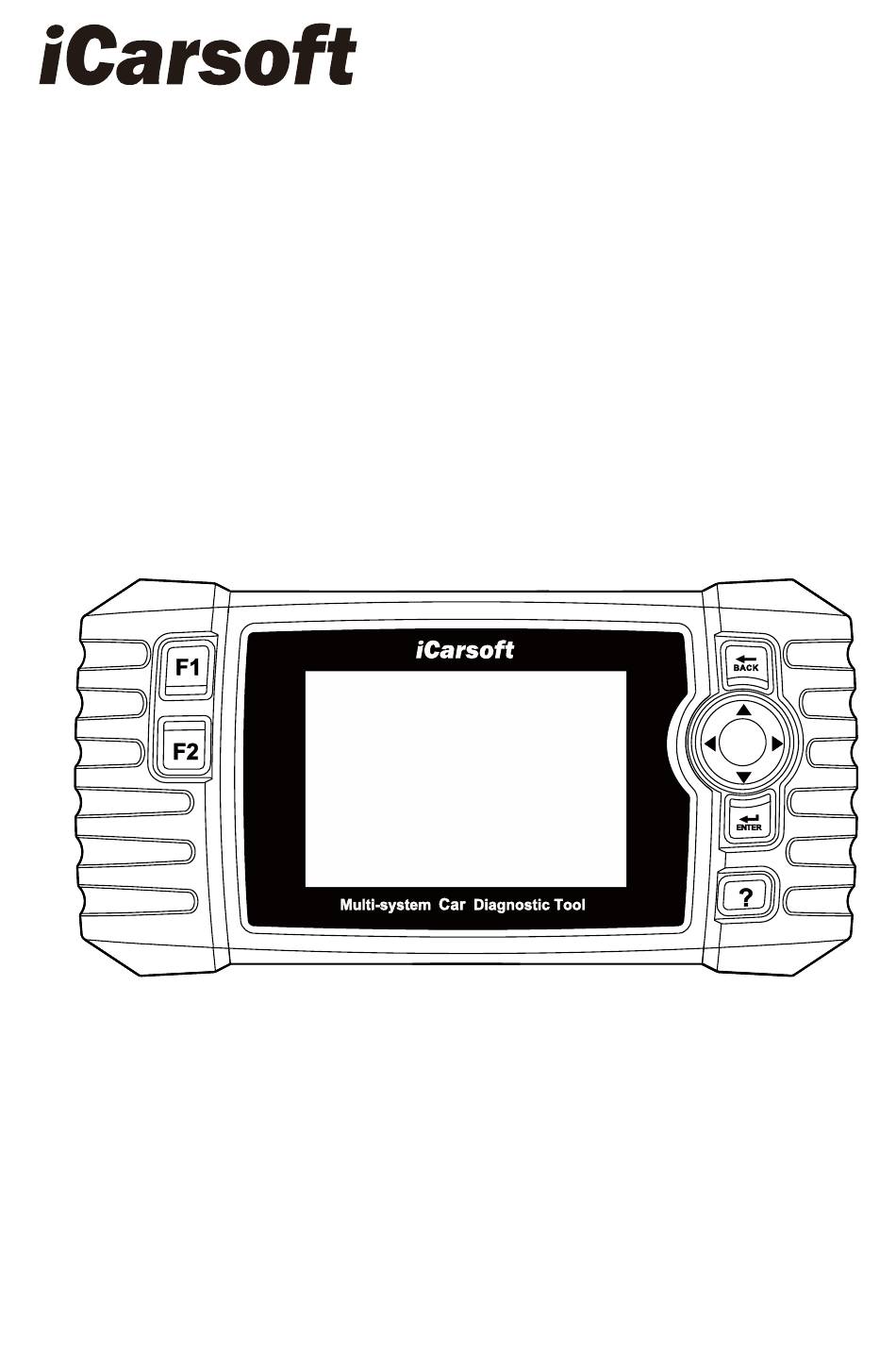

- Page 1 For BMM V3.0 / MB V3.0 / VAWS V3.0 / POR V3.0 / VOL V3.0 / OP V3.0 / LR V3.0 / US V3.0 / FR V3.0 / JP V3.0 / FA V3.0 / KR V3.0 / CR V3.0 Multi-system Car Diagnostic Tool series PROFESSIONAL . FAST . SMART . POWERFUL...
-
Page 3: Table Of Contents
Contents 1 PRODUCT DESCRIPTIONS ..............1 2 SPECIFICATIONS ................... 2 3 ACCESSORIES INCLUDED ..............2 4 PRODUCT FEATURES ................2 5 VEHICLE COVERAGE................5 6 OPERATION .................... 5 ....................6 6.1 D IAGNOSE 6.1.1 Vehicle identification ..............6 6.1.2 Diagnostic mode ................8 6.1.3 Diagnostic operation .............. - Page 4 6.2.18 Seat ..................... 39 ............... 40 6.3 B ATTERY OLTAGE 6.4 OBDII / EOBD ..................40 ..................41 6.5 DTC L OOKUP ................41 6.6 R EVIEW AND EPORT ..................... 41 6.7 S ETUP 6.7.1 Language ..................41 6.7.2 Unit of Measure ................42 6.7.3 Buzzer ..................
-
Page 5: Product Descriptions
Multi-system Car Diagnostic Tool series Product Descriptions Serial Button Name Description Number BACK Button Returns to previous menu UP Button Moves cursor up for selection LEFT Button Moves cursor left for selection RIGHT Button Moves cursor right for selection DOWN Button... -
Page 6: Specifications
F2 Function In case of special use Button OBDII Connects the scan tool to the vehicle’s Connector Data Link Connector via OBDII Cable Storage Card Holds the system of the scan tool. Slot DATA Cable Connects the scan tool for power supply Connector and update the software if needed. - Page 7 1) iCarsoft Multi-system Car Diagnostic tool V3.0 Series can do it all-reads and clears trouble codes on all the systems such as engine ,transmission, ABS and airbag etc. 2) Support OBDII / EOBD Ten Modes of Operation. 3) Read Live Data.
- Page 8 19) Injector Coding (INJ), relearn the injector control parameter while the injector renewed or replaced. 20) Head Lamp is about the headlamp maintenance, maintenance and other related operations (including AFS setting), and then perform this function for calibration. 21) Air Suspension: After maintenance, replacement and other operations of the suspension height sensor are performed in all aspects, this function needs to be executed for suspension learning and calibration.
-
Page 9: Vehicle Coverage
CR V3.0 is Multiple Choice of Vehicle Brands. Operation Note: Welcome to using the scan tool of icarsoft, you should do something before using the scan tool. At first, please check production list such as scan tool and accessories already when you open the package, read the user’s manual and connect... -
Page 10: Diagnose
the scan tool connected power. Make sure the ignition is ON when you connected the scan tool already. Note: For vehicles manufactured by different vendors, it is possible that it has different diagnostic menus. For details, please follow the instructions on the screen to proceed. - Page 11 The “VIN identify” can automatically parse the car model, eliminating the cumbersome program manually input by the user. The device diagnostic system has the latest automatic identification function based on the vehicle identification number. It stores all the diagnosable electronic control units of Scan on the vehicle and performs the diagnosis on the selected system.
-
Page 12: Diagnostic Mode
6.1.1.3 Vehicle Select When the vehicle cannot be retrieved automatically through the ECU of the vehicle, or the specific VIN is unknown, you can manually select the vehicle. Or in some cases, when the user selects vehicle selection rather than vehicle VIN scanning, the system will provide the option of vehicle selection, and the user can select the vehicle model, model year, etc. - Page 13 Quick test Scan the control unit of the whole vehicle, At the same time, the fault information of each control unit is detected to show the control unit list and fault status. Left side --- Show vehicle control unit number and system name. Right side --- Show vehicle control unit status.
-
Page 14: Diagnostic Operation
Note: If quick test is performed first and then auto scan is performed, the diagnostic status will be memorized. Control Unit This option allows you to manually locate the desired control system. According to the menu driven program, the user manually selects the specified control unit that he wants to detect, skips the whole vehicle scanning, and directly carries out the diagnosis of the specified system. - Page 15 Clear fault memory --- Use this function to clear the original fault code after reading the vehicle fault code and completing the repair. View data --- When this function is selected, the data list of the selected module will be displayed on the screen. Actuation Test --- This function provides access to vehicle specific subsystem tests and component tests.
- Page 16 you can save these data by press [REC]. Read fault code --- This function reads and displays the fault codes retrieved from the vehicle control system. Read the fault code of all electronic system module, display the fault status and description code. In addition, you can press [REC] to save the fault information.
- Page 17 the figure below. Clear fault memory – After reading the vehicle fault code and completing the repair, this function can be used to clear the original fault code. Before clearing the fault code, make sure the vehicle engine is off and the ignition key is in the on (run) position.
- Page 18 between different vehicles. Read full electronic system module live data by text value or waveform. Also you can save these data by press [REC]. When there is [W] in the upper right corner of the data stream, select [WAVE] to display the waveform, as shown in the following figure: ...
- Page 19 To perform signal turn signal lamp action test (take left turn signal lamp as an example): Enter the action test and select left turn signals. At this time, the signal indicator is not running. Press the [Start] button to execute the action. At this time, the signal indicator running,...
- Page 20 Focus on the following three functions： Sliding Roof Basic Setting After the maintenance of the skylight, it is necessary to use the basic setting to re match and learn the stop point value of the automatic skylight at each position. To Preform Sliding Roof Basic Setting: Sliding roof basic setting is required after the maintenance of the sunroof，access basic settings，select Sliding Roof Basic...
- Page 21 value of the automatic sunroof at each position. At this time, various actions of the sunroof will be executed. The status on the screen changes to “ON”. Note: marked means that the information here is pressed [?] button to see all information. ...
-
Page 22: Service Function
Read the information on the screen: when the speed reaches 15 km/h, the doors will lock automatically. 0 is off, 1 is on. Input “1”, and press the button [Save]. The status on the screen changes to “Success”. Remote Control Adaptation After clearing all the learned remote control information data (generally, remote key will be invalid), it is necessary to use this function to restore the key remote control function. -
Page 23: Oil Reset
V3.0 Multi-system Car Diagnostic Tool Series provide Oil Reset, EPB, BMS, DPF, ETC, SAS, Bleeding, Injector and more service functions for most modern vehicles on the road today. Select Service function from Main menu to access these special functions. Whether the vehicle has service function depends on the vehicle brand. - Page 24 Enter the required mileage after oil change and press [OK] to next step until the application is completed. Press [OK] to exit. Set the number of days since last oil change： Select the "Days since last oil change" option in the function list. Turn on the vehicle ignition.
-
Page 25: Epb
Enter the number of days after oil change and press the [OK] to next step until the application is completed. Press [OK] to exit. 6.2.2 EPB Electronic Parking Brake (EPB) system maintenance, deactivates and reactivates the EPB system for replacement and initialization (Take Jaguar as a sample). -
Page 26: Bms
As shown in the figure below, make sure that the parking brake is switched on and the shift lever is in N gear. Operate the clutch as required when the engine is running. Press the [OK] to next step until the calibration is successful, fully depress the clutch pedal, select neutral and release the clutch pedal. -
Page 27: Dpf
vehicle according to the on-screen instructions. Select the "battery - battery replacement" option in the function list, and a operator message will appear on the screen: this operation will re store the internal battery monitoring data. Press [OK] to continue. Until the screen prompts the application to complete. - Page 28 Follow the instructions on the screen step by step, and start the vehicle to drive at a speed higher than 40 km for about 15 minutes. Drive the vehicle to the required speed and press the "OK" button when the speed is reached.
-
Page 29: Sas
Application completed, press OK to exit. 6.2.6 SAS SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement (Take Jaguar as a sample). If the steering column or instrument cluster is replaced or the instrument cluster software is updated, a body system steering column calibration is required. -
Page 30: Etc
In the next step of system communication, until the application program is completed. Press [OK] to exit. 6.2.5 ETC Electronic Throttle Control system (ETC), relearns the throttle valve control value while clear or replace the throttle valve (Take Benz as a sample). Select the "ETC"... -
Page 31: Abs Bleeding
Note: marked means that the information here is pressed [?] button to see help information. As shown in the figure below: Press the [Yes] button to perform the learning process. Until the application is complete, press [OK] to exit. 6.2.7 ABS Bleeding When the ABS contains air, or the ABS computer / ABS pump / brake master cylinder / brake cylinder / brake line / brake fluid is replaced, the ABS bleeding function must be performed to bleed the brake system to restore ABS... -
Page 32: Injector
Turn on the ignition switch and perform the brake exhaust procedure as required. Carefully read the operator information that appears on the screen. Note that this function cannot be operated while moving the vehicle. Turn on the left front exhaust screw as required by the screen and keep pressing the brake pedal. - Page 33 operation of the fuel injector, you need to carry out this operation to replace the fuel injector code. Select the "Injector" icon in the service function icon, Select the correct vehicle according to the on-screen instructions. Select the "Powertrain Set - Up - Injector Replacement" option in the function list.
-
Page 34: Head Lamp
to call up the input box and input the identification number. Press [OK] to complete the execution. You can perform the next injector code change or exit application. 6.2.9 Head Lamp Head Lamp is about the headlamp maintenance, maintenance and other related operations (including AFS setting), and then perform this function for calibration. -
Page 35: Air Suspension
3) Wait for the system communication, keep the vehicle stationary as required, and press [OK] to perform the system calibration operation. This process takes 30 seconds. 4) Wait until the screen prompts "application completed" to complete the operation, and press [OK] to exit. 6.2.10 Air Suspension Air Suspension: After maintenance, replacement and other operations of the suspension height sensor are performed in all aspects, this function needs... -
Page 36: Tpms
Carefully read the operation information on the screen, and press the operation step by step to select the [OK] to continue. Note that in some processes, the suspension height will change, and the engine should be turned off, and the power supply voltage is 12.5V. If the conditions are met, the system will enter the communication state, and the air suspension will enter inflation until the process is completed, and the system will prompt to turn off the ignition. -
Page 37: Air-Conditioner
accessed by reading directly from the wheel unit or by using the identification reading tool. On completion, a specific road test will be required followed by the tire pressure monitor system confirmation application. Select the TPMS icon in the service function icon or the TPM option in service in diagnostic mode. -
Page 38: Fuel Pump
After the refrigerant, blower pump, etc. in the air conditioner are replaced, the air conditioning system may not work normally. At this time, this function is needed to activate the air conditioner for a period of time to match the replaced refrigerant, blower pump and other automotive components. -
Page 39: Engine Idle
Select the "Fuel pump" icon in the service function icon, Select the correct vehicle according to the on-screen instructions. Select Activate fuel pump. Follow the prompts on the screen until the operation is completed. Press [OK] to exit. 6.2.14 Engine Idle This correction can be executed when the idle speed fault is resolved. -
Page 40: Body Stability
Press the [reduce] or [increase] button to adjust the engine idle speed. Follow the prompts on the screen until the operation is completed. Press [OK] to exit. 6.2.15 Body stability Learning and calibration after replacing the body stability control unit and other related components, such as: lateral acceleration sensor for active roll stabilization system, BAS brake assist system, ESP electronic stability program, calibration of yaw rate / lateral and longitudinal acceleration sensors,... -
Page 41: Air Filter
Press [OK] to the next step, this process takes a long time, until the completed instruction is prompted. Press [OK] to exit. 6.2.16 Air Filter The engine is a very precise machine part, and even the smallest impurities will cause the wear of the engine. Therefore, the air must be filtered by the air cleaner before entering the cylinder. -
Page 42: Door
Follow the prompts Until the instruction to complete the command operation appears. Press [OK] to exit. 6.2.17 Door After repairing or replacing the window lift motor, it is necessary to perform relevant functions for calibration (Take Jaguar as a sample). ... -
Page 43: Seat
Until the screen prompts that the operation is completed, press the OK to exit. 6.2.18 Seat After repairing or replacing the seat position drive motor, it is necessary to perform relevant functions for calibration (Take Jaguar as a sample). Driver's Seat Calibration: The following routine will restore all the seat axis position values to default for the driver's seat module. -
Page 44: Battery Voltage Test
Passenger's Seat Calibration: The following routine will restore all the seat axis position values to default for the passenger seat module. Note: Different models will have different menu modes. This manual is for reference. Everything in kind shall prevail. If there is any increase or decrease in the function of the product, the actual product shall prevail. -
Page 45: Dtc Lookup
6.5 DTC Lookup Use cursor button to select DTC Lookup icon from the main screen, press ENTER. Press LEFT / RIGHT button to move the highlight bar to different position. Press UP / DOWN button to alter the value, and press ENTER button, the screen will display definition of the DTC. -
Page 46: Unit Of Measure
6.7.2 Unit of Measure On Tool Setup, use DOWN button to select Unit of Measure and press ENTER, where you can choose Metric or Imperial. 6.7.3 Buzzer On Tool Setup, use DOWN button to select Buzzer and press ENTER, where you can turn the buzzer ON or OFF. 6.7.4 LOG On Tool Setup, use DOWN button to select Log and press ENTER, where you can turn the Log ON or OFF. -
Page 47: Help
1) The sole responsibility of iCarsoft under the warranty is limited to either the repair or, at the option of iCarsoft , replacement of the Diagnostic Tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose. -
Page 48: Service Procedures
7.2 Service Procedures If you have any questions, please contact your local store, distributor or visit our website www.icarsoft.us www.icarsoft.com .If it becomes necessary to return the Diagnostic Tool for repair, contact your local distributor for more information. - Page 49 3) Connect PC / Laptop Connect the scanner to PC via data cable (if you have a TF card reader, you can also update via TF card reader),PC will recognize one more removable U-disc.
- Page 50 4) Start application Run the application iCarsoft_MSDIAG_PCClientkits on your PC, the application will recognize the scanner by SN. 5) Upgrade Press Download button to start software upgrade, when the update process is completed, it will come up with an update successful message.
-
Page 51: Data Print Procedures
8.2 Data Print Procedures: 1) Save data User can press [RECORD] button to save the diagnosis data such as Module Information, Live Data, Fault, Data, Freeze Frame and Vehicle Information etc., the data will be saved as *.rex file on the TF memory card, these files can be used to create diagnosis report by the application iCarsoft_MSDIAG_PCClientKits. - Page 52 4) Select files BMW_EN_TEST_0001 shows all recorded data with BMW Diagnosis Software. OBD_EN_TEST_0001 shows all recorded data with OBD Diagnosis Software. Click the *.rex to add the data to edit box...
- Page 53 [CLEAR] button to clear all data in the edit area. [SAVE] button to save all data in the edit area as a text file. [PREVIEW] button for printer-preview. [PRINT] button to print all data in the edit area.
- Page 55 Technology Inc. www.icarsoft.us www.icarsoft.com All Rights Reserved...
